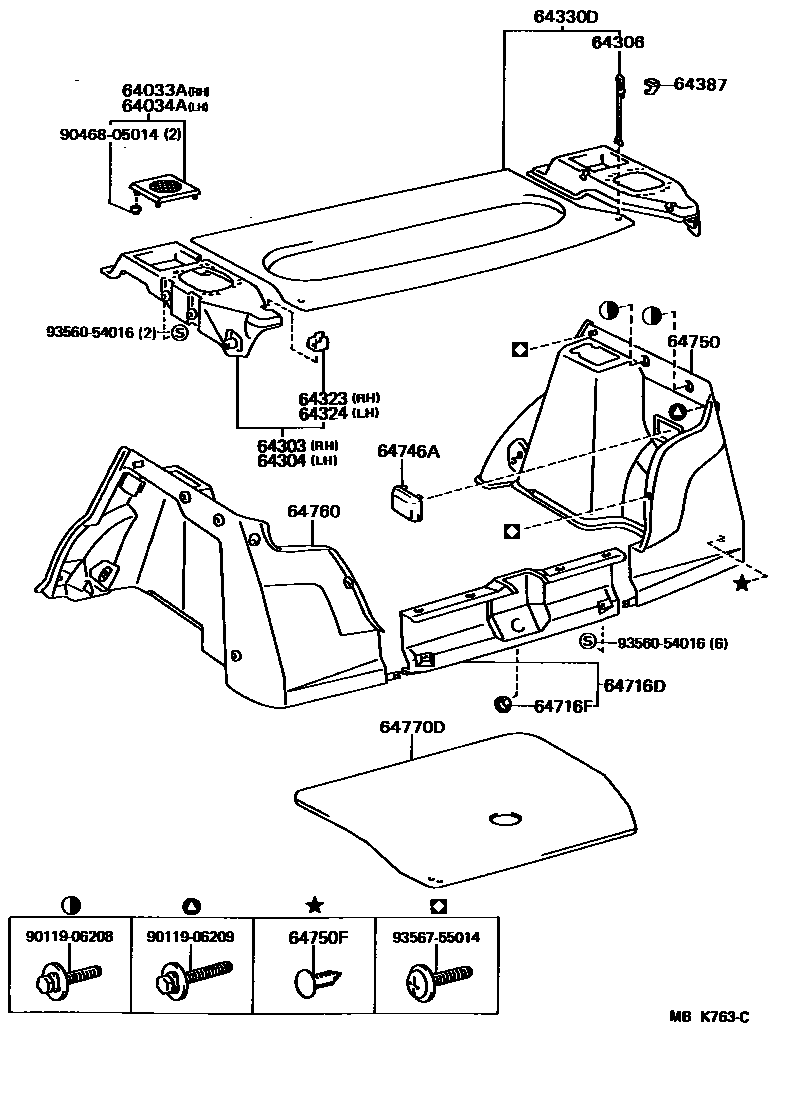

DECK BOARD & DECK TRIM COVER
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
W/SPEAKER GRILLE,DARK BLUE,DARK BLUE
W/SPEAKER GRILLE,CHARCOAL,CHARCOAL
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
W/SPEAKER GRILLE,DARK BLUE,DARK BLUE
W/SPEAKER GRILLE,CHARCOAL,CHARCOAL
64323CLAMP, PACKAGE TRAY TRIM, NO.1
sub64323-12020
64324CLAMP, PACKAGE TRAY TRIM, NO.2
sub64324-12010
64330DPANEL ASSY, PACKAGE TRAY TRIM
64387HANGER, PACKAGE TRAY TRIM
64716DCOVER, DECK TRIM, REAR
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)
64746ACOVER, DECK TRIM SIDE LAMP HOLE
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
64750PANEL ASSY, DECK SIDE TRIM, RH
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64760PANEL ASSY, DECK SIDE TRIM, LH
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
64770DCOVER ASSY, SPARE WHEEL
9011906208
main90119-06208
9011906209
main90119-06209
9046805014
main90468-05014
9356054016
main93560-54016
9356755014
main93567-55014
21 parts on this diagram · 1 diagram in section
