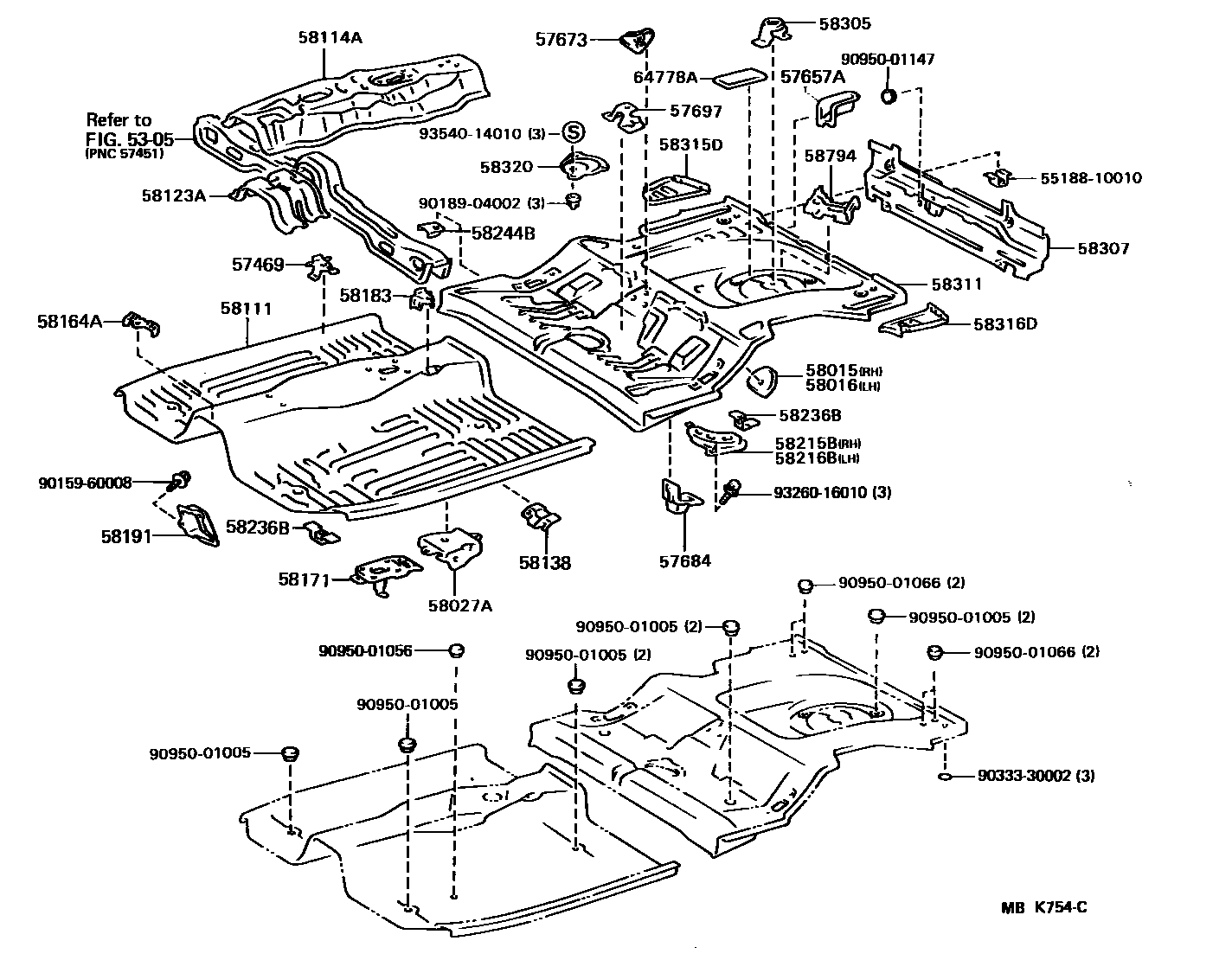

FLOOR PAN & LOWER BACK PANEL
5305
57469BRACKET, FRONT SEAT, OUTSIDE
RH
LH
57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57697RETAINER, REAR SEAT CUSHION
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58138BRACKET, FRONT FLOOR HEAT INSULATOR, NO.4
58164ARETAINER, CONSOLE BOX MOUNTING
58171REINFORCEMENT, PARKING BRAKE BASE
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58191FOOTREST, FRONT FLOOR
58215BBRACKET, REAR SEAT MOUNTING, RH
58216BBRACKET, REAR SEAT MOUNTING, LH
58236BBRACKET, CENTER FLOOR HEAT INSULATOR
58244BBRACKET, REAR SEAT CUSHION MOUNTING
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58320COVER, REAR FLOOR SERVICE HOLE
58794CARRIER, JACK
64778APROTECTOR, SPARE WHEEL
230 X 125
110 X 240
5518810010BRACKET, UNDER TRAY SUPPORT
main55188-10010
9015960008
main90159-60008
9018904002
main90189-04002
9033330002
main90333-30002
9095001005
main90950-01005
9095001056
main90950-01056
9095001066
main90950-01066
9095001147
main90950-01147
9326016010
main93260-16010
9354014010
main93540-14010
39 parts on this diagram · 1 diagram in section
