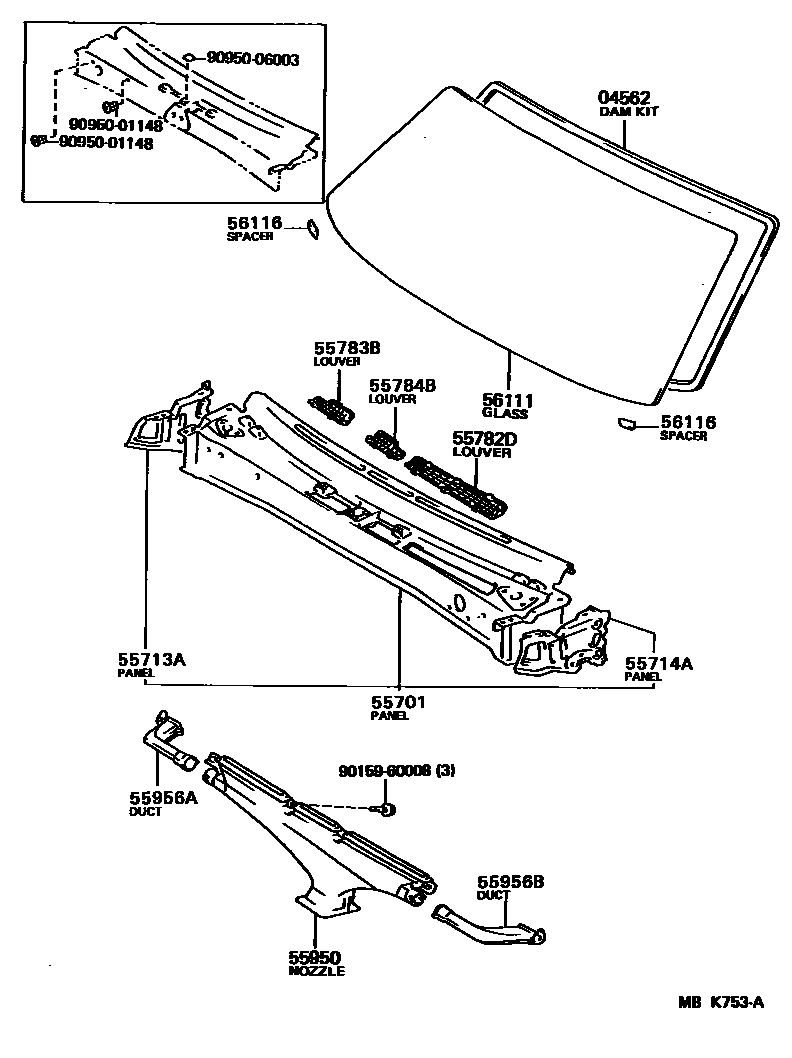

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-01010iAE82198609-198808

sub04562-30040¥2,390

55701PANEL SUB-ASSY, COWL

main55700-02010iAE82..GTS,Q198609-198808

main55700-12290iAE82..D¥38,600198702-198808

55713APANEL, COWL TOP SIDE, RH

main55713-12060iAE82¥1,980198609-198808

55714APANEL, COWL TOP SIDE, LH

main55714-12060iAE82¥1,980198609-198808

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-01020iAE82198609-198808

sub55782-12050¥1,440

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-12190iAE82¥930198609-198808

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-12060iAE82¥930198609-198808

55950NOZZLE ASSY, DEFROSTER

main55950-12070iAE82¥5,700198609-198808

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-01010iAE82198609-198808

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55980-01010iAE82198609-198808

56111GLASS, WINDSHIELD

main56111-02010iAE82..GTS198609-198808

*TL,T=5.3,*TL,T=5.3

main56111-02020iAE82..D,Q198609-198808

*TL,T=5.3,*TL,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-24010iAE82¥230198609-198808

9015960008

main90159-60008¥70

9095001148

main90950-01148¥120

9095006003

main90950-06003¥40

15 parts on this diagram · 1 diagram in section
