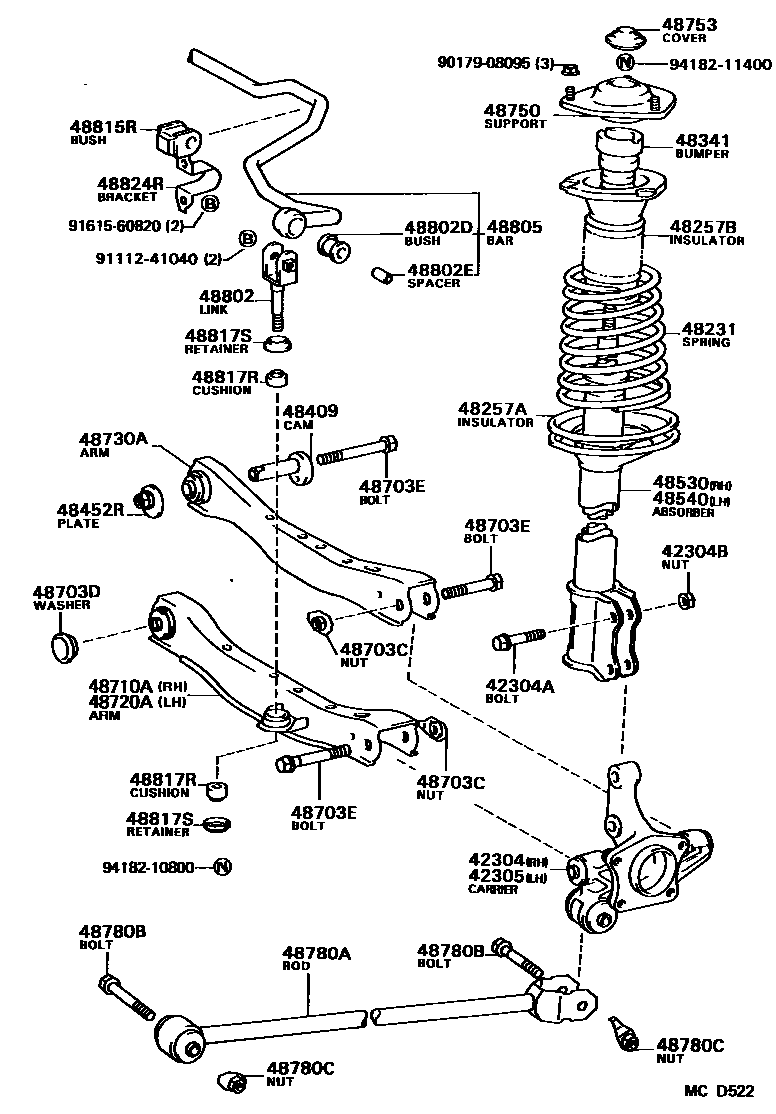

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
sub90105-12236
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48257AINSULATOR, REAR COIL SPRING, LOWER
48257BINSULATOR, REAR COIL SPRING, UPPER
48341BUMPER, REAR SPRING
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48703CNUT(FOR REAR SUSPENSION ARM)
ARM NO.1 (CARRIER SIDE)
ARM NO.2
ARM NO.1 (BODY SIDE)
48703DWASHER(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
*10-1.25PX77-20,ARM NO.2
*12-1.25PX60-25,ARM NO.2
*12-1.25PX72-25,*12-1.25PX72-25,ARM NO.1
48730AARM ASSY, REAR SUSPENSION, NO.2
48750SUPPORT ASSY, REAR SUSPENSION
48753COVER, REAR SUSPENSION SUPPORT
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
CARRIER SIDE
BODY SIDE
48802LINK SUB-ASSY, STABILIZER
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48824RBRACKET, STABILIZER(FOR REAR)
9017908095
main90179-08095
9111241040
main91112-41040
9161560820
main91615-60820
9418210800
main94182-10800
9418211400
main94182-11400
36 parts on this diagram · 1 diagram in section
