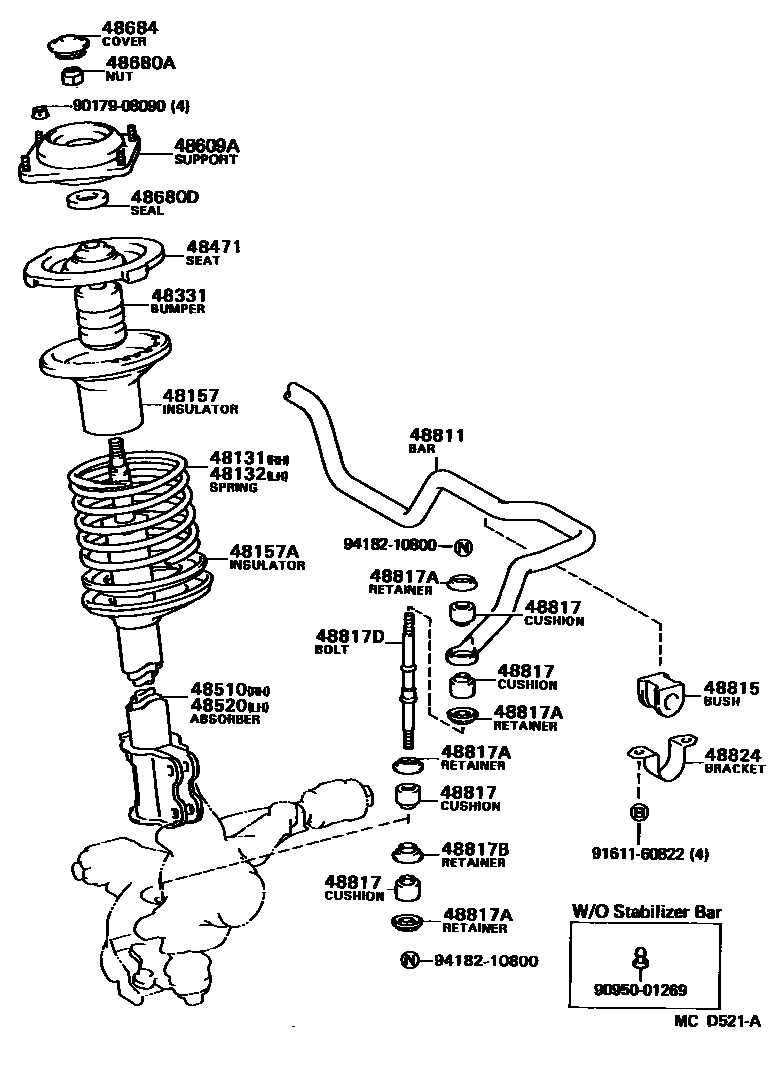

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
W/COOLER
W/COOLER
W/COOLER
W/COOLER
48132SPRING, FRONT COIL, LH
W/COOLER
W/COOLER
W/COOLER
W/COOLER
48157INSULATOR, FRONT COIL SPRING, UPPER
48471SEAT, FRONT SPRING, UPPER
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
sub48684-52010
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48824BRACKET, STABILIZER, FRONT
9017908090
main90179-08090
9095001269
main90950-01269
9161160822
main91611-60822
9418210800
main94182-10800
23 parts on this diagram · 1 diagram in section
