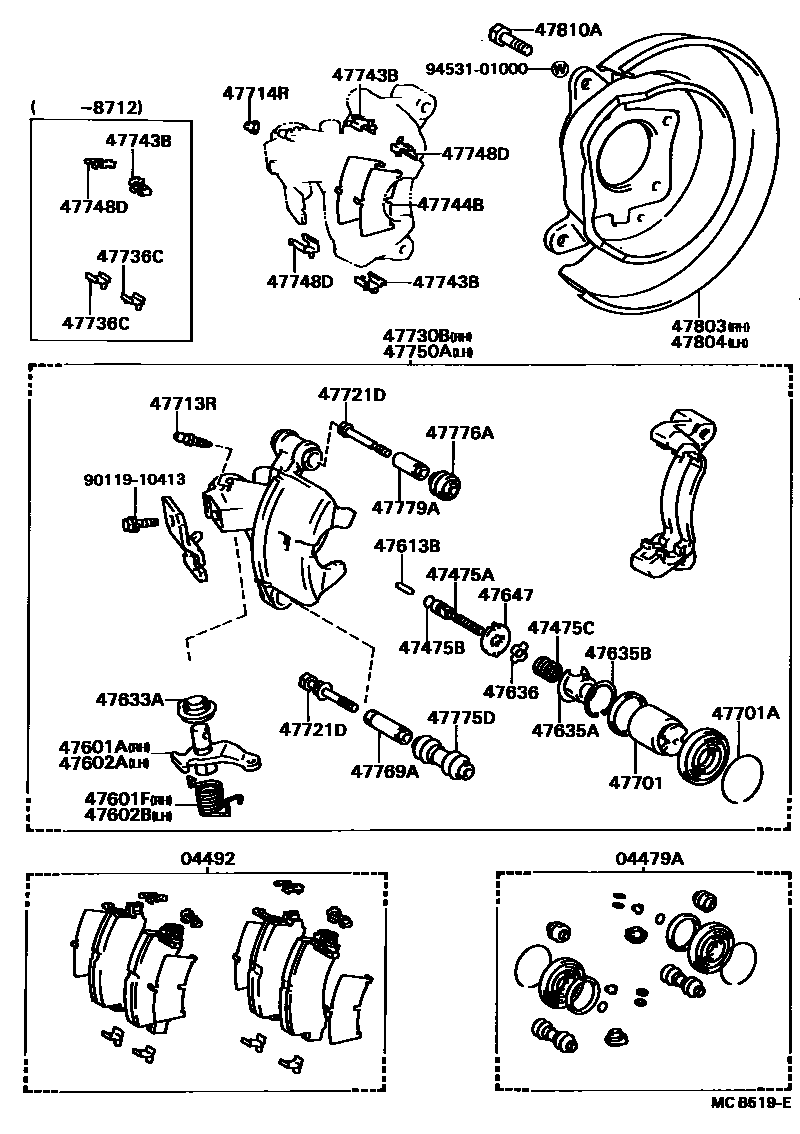

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12121iAE82..GTS,Q198609-198808

04492PAD KIT, DISC BRAKE, REAR

main04492-12040iAE82..GTS,Q198609-198712

sub04492-12041

main04492-12041iAE82..GTS,Q198712-198805

sub04492-12042

main04492-12042iAE82..GTS,Q198805-198808

sub04466-12031

47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)

main47475-12030iAE82..GTS,Q198609-198808

47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)

main90301-09007iAE82..GTS,Q198609-198808

47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)

main90501-23051iAE82..GTS,Q198609-198808

47601ACRANK SUB-ASSY, PARKING BRAKE, RH

main47601-12020iAE82..GTS,Q198609-198808

sub47601-12030

47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)

main90508-32020iAE82..GTS,Q198609-198808

47602ACRANK SUB-ASSY, PARKING BRAKE, LH

main47602-12020iAE82..GTS,Q198609-198808

sub47602-12030

47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)

main90508-32021iAE82..GTS,Q198609-198808

47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)

main47613-12020iAE82..GTS,Q198609-198808

47633ABOOT, PARKING BRAKE CRANK

main47633-12010iAE82..GTS,Q198609-198808

47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47635-12010iAE82..GTS,Q198609-198808

47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)

main90521-32002iAE82..GTS,Q198609-198808

47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47636-12010iAE82..GTS,Q198609-198808

47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)

main47647-12010iAE82..GTS,Q198609-198808

47701PISTON SUB-ASSY, REAR DISC BRAKE

main47701-12020iAE82..GTS,Q198609-198808

47701ARING, SET(FOR DISC BRAKE PISTON, REAR)

main90522-45001iAE82..GTS,Q198609-198808

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAE82..GTS,Q198609-198808

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAE82..GTS,Q198609-198808

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098iAE82..GTS,Q198609-198808

*8-1.25PX56-15,*8-1.25PX56-15

main90119-08431iAE82..GTS,Q198609-198808

*8-1.25PX62-20,*8-1.25PX62-20

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-12280iAE82..GTS,Q198609-198808

47736CPLATE, REAR DISC BRAKE PAD GUIDE

main47736-12030iAE82..GTS,Q198609-198712

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-12030iAE82..GTS,Q198609-198712

sub47743-12060

main47743-12060iAE82..GTS,Q198712-198808

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-12070iAE82..GTS,Q198609-198805

sub47744-12071

main47744-12071iAE82..GTS,Q198805-198808

sub47744-12080

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-12090iAE82..GTS,Q198609-198712

sub47748-12110

main47748-12110iAE82..GTS,Q198712-198808

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-12280iAE82..GTS,Q198609-198808

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iAE82..GTS,Q198609-198808

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010iAE82..GTS,Q198609-198808

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010iAE82..GTS,Q198609-198808

sub47776-12020

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010iAE82..GTS,Q198609-198808

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-12020iAE82..GTS,Q198609-198808

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-12020iAE82..GTS,Q198609-198808

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-10089iAE82..GTS,Q198609-198808

9011910413

main90119-10413

9453101000

main94531-01000

35 parts on this diagram · 2 diagrams in section
