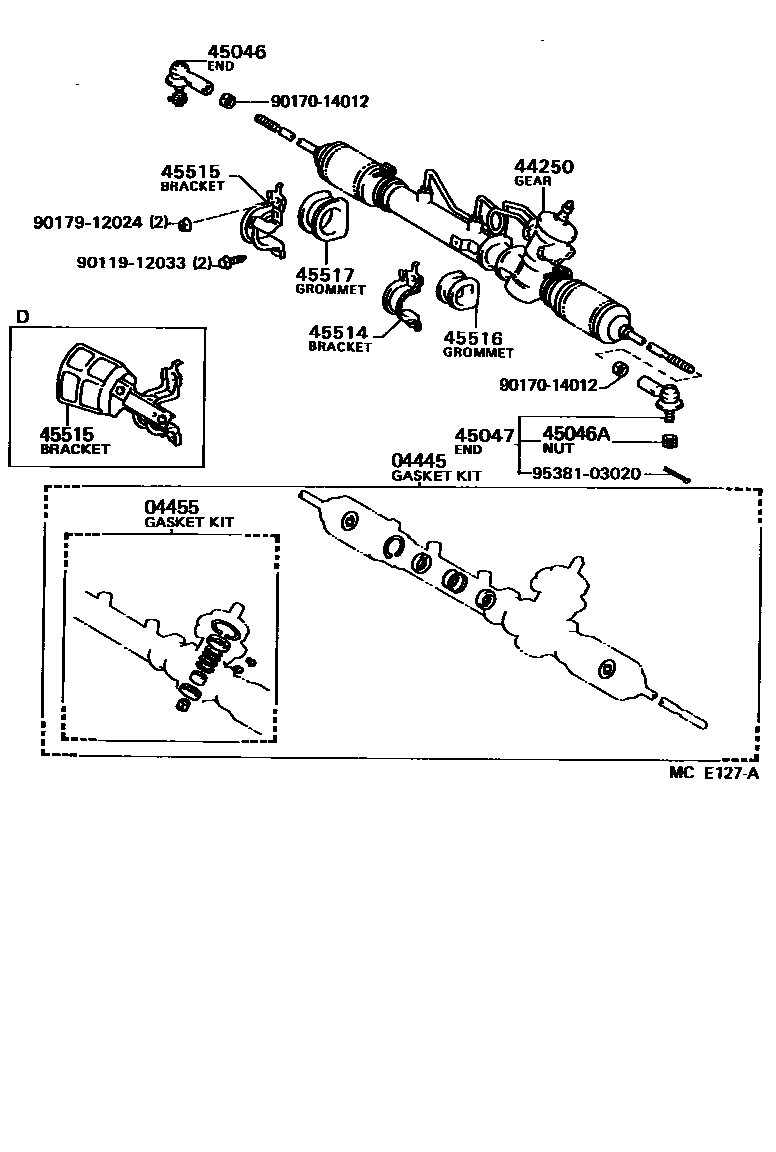

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-12020iAE82198609-198808

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12010iAE82198609-198808

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12141iAE82198609-198808

sub44250-12142

sub45517-12061

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAE82198609-198808

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAE82198609-198808

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAE82198609-198808

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12040iAE82..D198702-198808

main45514-20010iAE82198609-198808

W/POWER STEERING

45515BRACKET, STEERING RACK HOUSING, NO.2

main45506-12010iAE82..D198702-198808

W/POWER STEERING

main45506-12020iAE82..D198702-198808

main45515-12070iAE82..GTS,Q198609-198808

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-20010iAE82198609-198808

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12050iAE82..D198702-198808

main45517-12060iAE82198609-198808

W/POWER STEERING

9011912033

main90119-12033

9017014012

main90170-14012

9017912024

main90179-12024

9538103020

main95381-03020

14 parts on this diagram · 3 diagrams in section
