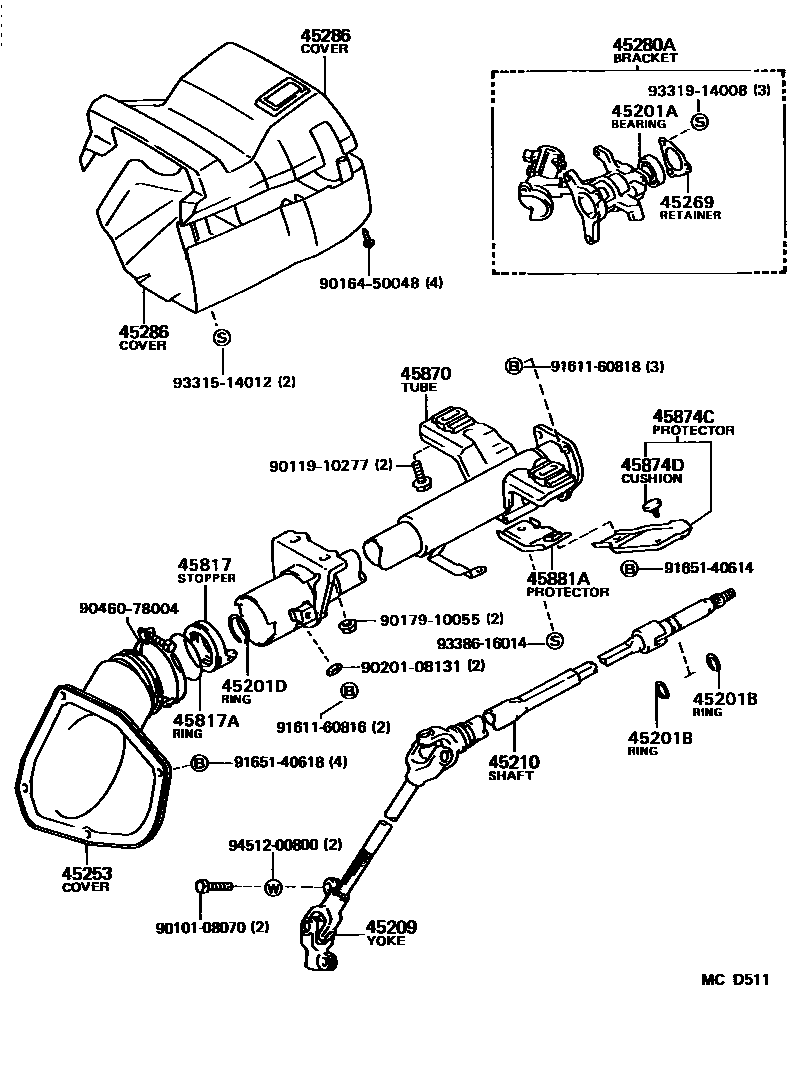

STEERING COLUMN & SHAFT
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45201DRING(FOR STEERING MAIN SHAFT)
45209YOKE SUB-ASSY, STEERING SLIDING
sub45209-10020
45210SHAFT ASSY, STEERING MAIN
W/POWER STEERING
45253COVER, STEERING COLUMN HOLE
45269RETAINER, MAIN SHAFT BEARING
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
UPR,BLUE,DARK BLUE
UPR,CHARCOAL,CHARCOAL
LWR,BLUE,DARK BLUE
LWR,CHARCOAL,CHARCOAL
LWR,BLUE,W/TILT STEERING,DARK BLUE
LWR,CHARCOAL,W/TILT STEERING,CHARCOAL
45817STOPPER, STEERING SHAFT THRUST
sub45808-20030
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45870TUBE ASSY, STEERING COLUMN
W/TILT STEERING
45874CPROTECTOR, STEERING COLUMN, NO.1
W/POWER STEERING
45874DCUSHION(FOR STEERING COLUMN PROTECTOR)
W/POWER STEERING
45881APROTECTOR, STEERING COLUMN, NO.2
W/POWER STEERING
9010108070
main90101-08070
9011910277
main90119-10277
9016450048
main90164-50048
9017910055
main90179-10055
9020108131
main90201-08131
9046078004
main90460-78004
9161160816
main91611-60816
9161160818
main91611-60818
9165140614
main91651-40614
9165140618
main91651-40618
9331514012
main93315-14012
9331914008
main93319-14008
9338616014
main93386-16014
9451200800
main94512-00800
29 parts on this diagram · 2 diagrams in section
