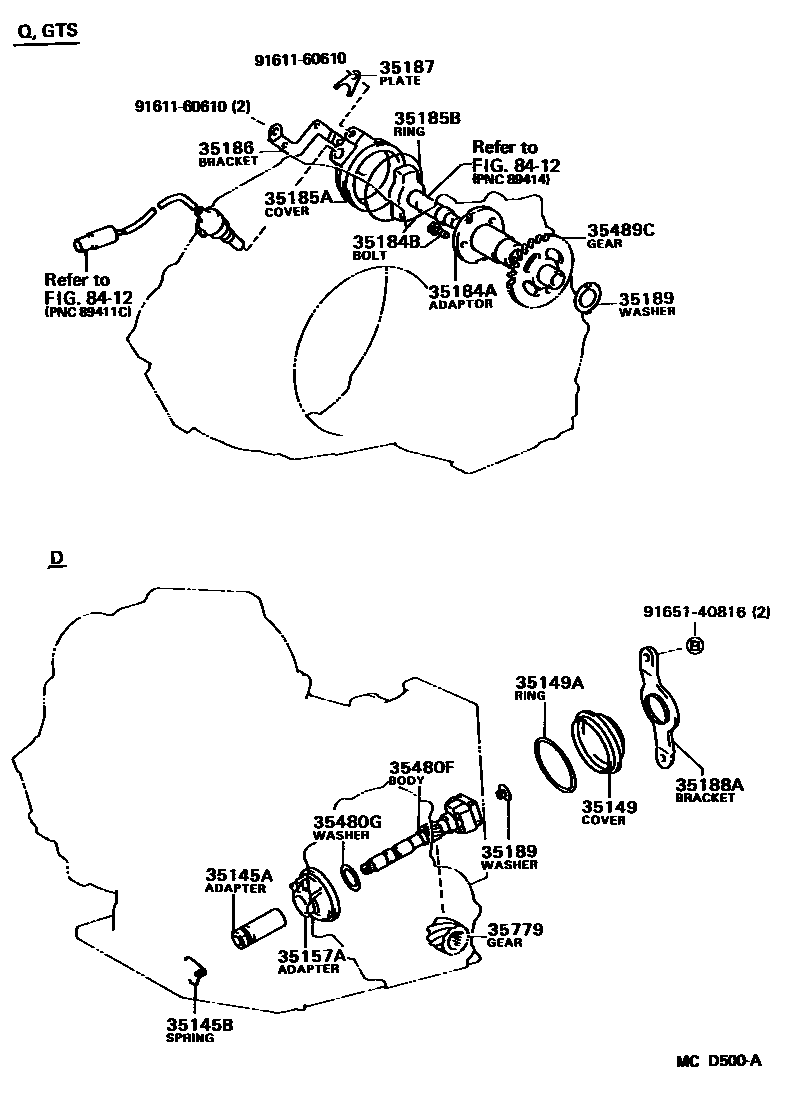

REAR OIL PUMP & GOVERNOR (ATM)

35145AADAPTER, GOVERNOR PRESSURE

main35145-32011iAE82..ATM..D198702-198808

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iAE82..ATM..D198702-198808

35149COVER, GOVERNOR

main35149-12010iAE82..ATM..D198702-198808

35149ARING, O (FOR GOVERNOR COVER)

main90301-73001iAE82..ATM..D198702-198808

35157AADAPTER, GOVERNOR BODY

main35157-12010iAE82..ATM..D198702-198808

35184AADAPTER, SENSOR ROTOR

main35184-12010iAE82..ATM..(GTS,Q)198609-198808

35184BBOLT(FOR SENSOR ROTOR ADAPTER)

main90105-06053iAE82..ATM..(GTS,Q)198609-198808

35185ACOVER, SPEED SENSOR

main35185-12010iAE82..ATM..(GTS,Q)198609-198808

35185BRING, O (FOR SPEED SENSOR COVER)

main90301-68001iAE82..ATM..(GTS,Q)198609-198808

35186BRACKET, SPEED SENSOR COVER

main35186-12010iAE82..ATM..(GTS,Q)198609-198808

35187PLATE, SPEED SENSOR LOCK

main35187-12010iAE82..ATM..(GTS,Q)198609-198808

35188ABRACKET, GOVERNOR COVER

main35188-12010iAE82..ATM..D198702-198808

35189WASHER, GOVERNOR THRUST, NO.1

main35189-12010iAE82..ATM..(GTS,Q)198609-198808

main35189-32010iAE82..ATM..D198702-198803

sub35189-32011

main35189-32011iAE82..ATM..D198803-198808

35480FBODY ASSY, GOVERNOR

main35480-32012iAE82..ATM..D198702-198808

sub35480-32013

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iAE82..ATM..D198702-198808

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iAE82..ATM..(GTS,Q)198609-198808

35779GEAR, GOVERNOR DRIVE

main35779-32010iAE82..ATM..D198702-198808

8412

9161160610

main91611-60610

9165140816

main91651-40816

20 parts on this diagram · 1 diagram in section
