30500BPROTECTOR, TRANSAXLE CASE

main33117-01041i198702-198708

main33117-12030i198609-198808

main33117-12040i198708-198808

30500DBOLT(FOR TRANSAXLE CASE PROTECTOR)

main90105-08040×2i198609-198808

sub91641-H0820

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077i198609-198808

*10-1.25PX43-26,*10-1.25PX43-26

main90119-12168i198609-198808

*12-1.25PX55-30,*12-1.25PX55-30

main91619-61245×2i198609-198808

*12-1.25PX45-30,*12-1.25PX45-30

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12141i198702-198808

main35013-12150i198609-198808

35101PCASE & COVER SUB-ASSY, TRANSAXLE

main35101-02021i198705-198808

main35101-12011i198609-198705

sub35101-12021

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011i198710-198808

main35102-20020i198702-198710

main35102-20050i198609-198808

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08050×9i198702-198808

*8-1.25PX28-28,*8-1.25PX28-28

main90105-08056×2i198702-198808

*8-1.25PX40-40,*8-1.25PX38-38

main90105-08065×10i198609-198808

*8-1.25PX45-35,*8-1.25PX45-30

main90105-08068×3i198609-198808

*8-1.25PX35-30,*8-1.25PX35-30

sub90105-08333

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12060i198702-198808

main35103-12070i198609-198808

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03084i198609-198808

main90930-03089i198702-198808

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34005i198702-198709

main90311-34010i198609-198804

main90311-34012i198709-198808

main90311-34013i198804-198808

sub90311-34026

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001i198609-198808

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196i198609-198808

35104VHOSE (FOR BREATHER PLUG)

main90447-11008i198609-198711

main90447-11018i198711-198808

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10007×2i198609-198808

HOUSING SIDE

main90250-11001×2i198609-198808

RR COVER SIDE

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003i198609-198808

sub90341-10011

main90341-18016i198702-198808

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010i198609-198808

main90430-18008i198702-198808

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10021i198702-198808

sub35106-10022

main35106-12050i198609-198808

sub35106-12070

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18i198609-198808

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065×10i198609-198808

*8-1.25PX45-35,*8-1.25PX45-30

main90105-08066i198609-198808

*8-1.25PX72-30,*8-1.25PX72-30

main90105-08068×5i198609-198808

*8-1.25PX35-30,*8-1.25PX38-30

sub90105-08333

main90105-08071×2i198609-198808

*8-1.25PX30-25,*8-1.25PX30-25

35119PLATE, STIFENER, LH (ATM)

main33119-17011i198609-198808

35138ADAPTER, STIFFENER PLATE

main35138-17010i198609-198711

sub35138-12020

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010i198609-198808

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010×2i198609-198808

35159GASKET, BRAKE DRUM

main35159-20010i198609-198808

main35159-32011i198702-198808

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010i198609-198808

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049i198609-198808

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010i198609-198808

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049i198609-198808

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020i198609-198808

main35168-32010i198702-198808

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173i198609-198808

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3i198609-198808

4301

9011610114

main90116-10114

9017910015

main90179-10015

9161160614

main91611-60614

9161161028

main91611-61028

9161161030

main91611-61030

9613230400

main96132-30400

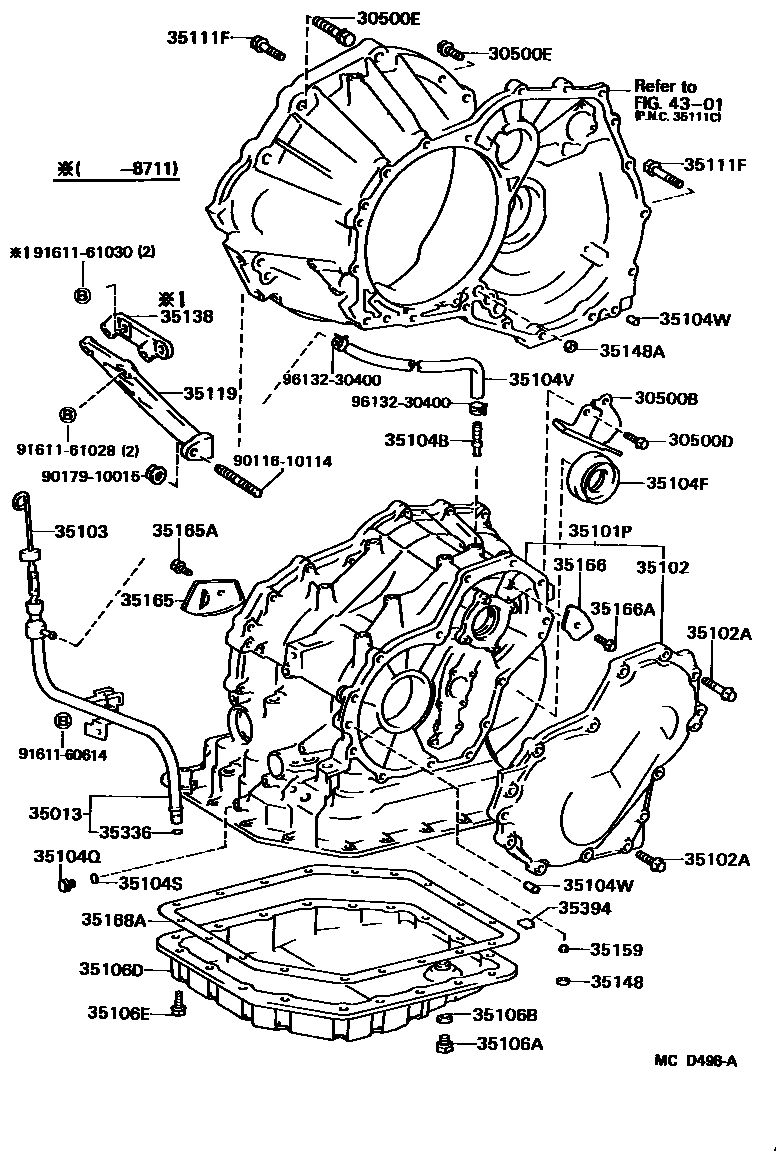

TRANSMISSION CASE & OIL PAN (ATM)
