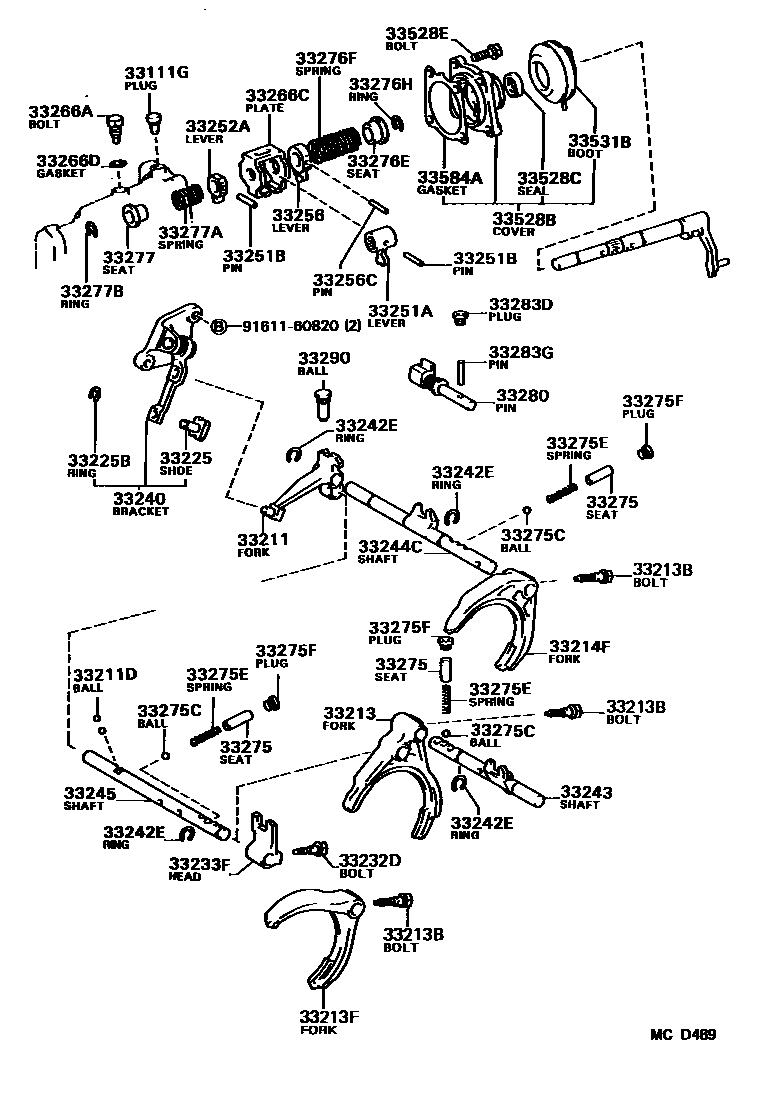

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
33211DBALL(FOR REVERSE SHIFT FORK)
OD=6.35
33213FORK, 1ST & 2ND SHIFT
sub33212-10012
33213BBOLT(FOR SHIFT FORK SET)
5TH
(1ST & 2ND) OR (3RD OR 4TH)
33213FFORK, 3RD & 4TH SHIFT
sub33213-10022
33214FFORK, 5TH SHIFT
sub33214-10022
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33232DBOLT (FOR SHIFT HEAD SET)
33233FHEAD, 3RD & 4TH SHIFT
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243SHAFT, 1ST & 2ND SHIFT FORK
sub33205-12021
33244CSHAFT, REVERSE & 5TH SHIFT FORK
sub33244-12053
33245SHAFT, 3RD & 4TH SHIFT FORK
sub33243-12092
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33266ABOLT (FOR SHIFT INTERLOCK PLATE)
33266CPLATE, SHIFT INTERLOCK
33266DGASKET (FOR SHIFT INTERLOCK PLATE)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
sub90501-11059
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
sub90501-16136
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33280PIN ASSY, REVERSE RESTRICT
sub33280-12061
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BALL ASSY, LOCK, NO.1
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9161160820
main91611-60820
44 parts on this diagram · 1 diagram in section
