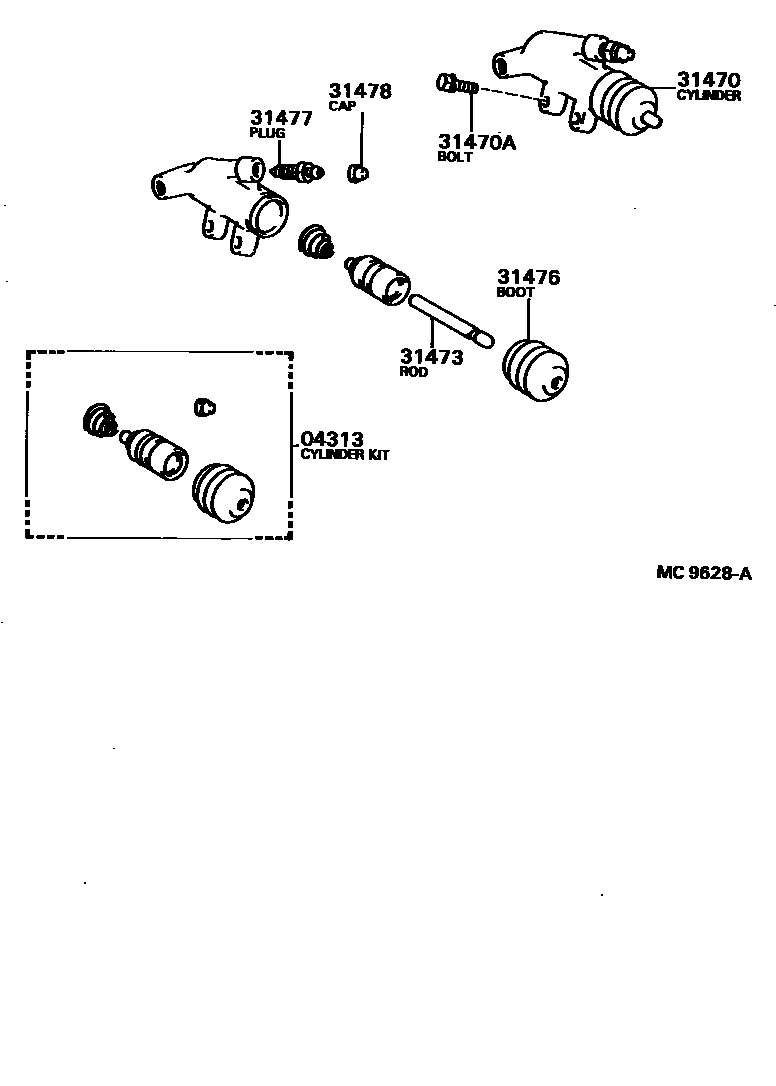

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12010iAE82..MTM¥1,030198609-198805

main04313-12011iAE82..MTM¥1,000198805-198808

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12041iAE82..MTM¥7,400198609-198805

sub31470-12042¥7,500

main31470-12042iAE82..MTM¥7,500198805-198808

sub31470-12043¥7,500

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAE82..MTM¥170198609-198808

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iAE82..MTM¥450198609-198808

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE82..MTM¥230198609-198808

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-60020iAE82..MTM¥230198609-198808

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAE82..MTM¥160198609-198808

7 parts on this diagram · 1 diagram in section
