CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-22020iAE82..MTM198609-198704

sub04311-22021

main04311-22021iAE82..MTM198704-198808

sub04311-22022

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12010iAE82..MTM198609-198704

sub31402-30030

main31402-30030iAE82..MTM198704-198808

31410CYLINDER ASSY, CLUTCH MASTER

main31410-01012iAE82..MTM198704-198709

sub31410-01013

main31410-12160iAE82..MTM198609-198704

sub31410-12161

main31410-12162iAE82..MTM198709-198808

sub31410-20421

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAE82..MTM198609-198808

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iAE82..MTM198609-198704

sub47230-20040

main47230-20040iAE82..MTM198704-198808

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAE82..MTM198609-198808

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iAE82..MTM198609-198808

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iAE82..MTM198609-198808

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22060iAE82..MTM198609-198808

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iAE82..MTM198609-198610

sub31453-35010

main31453-35010iAE82..MTM198610-198808

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAE82..MTM198609-198808

9017908038

main90179-08038

9412040800

main94120-40800

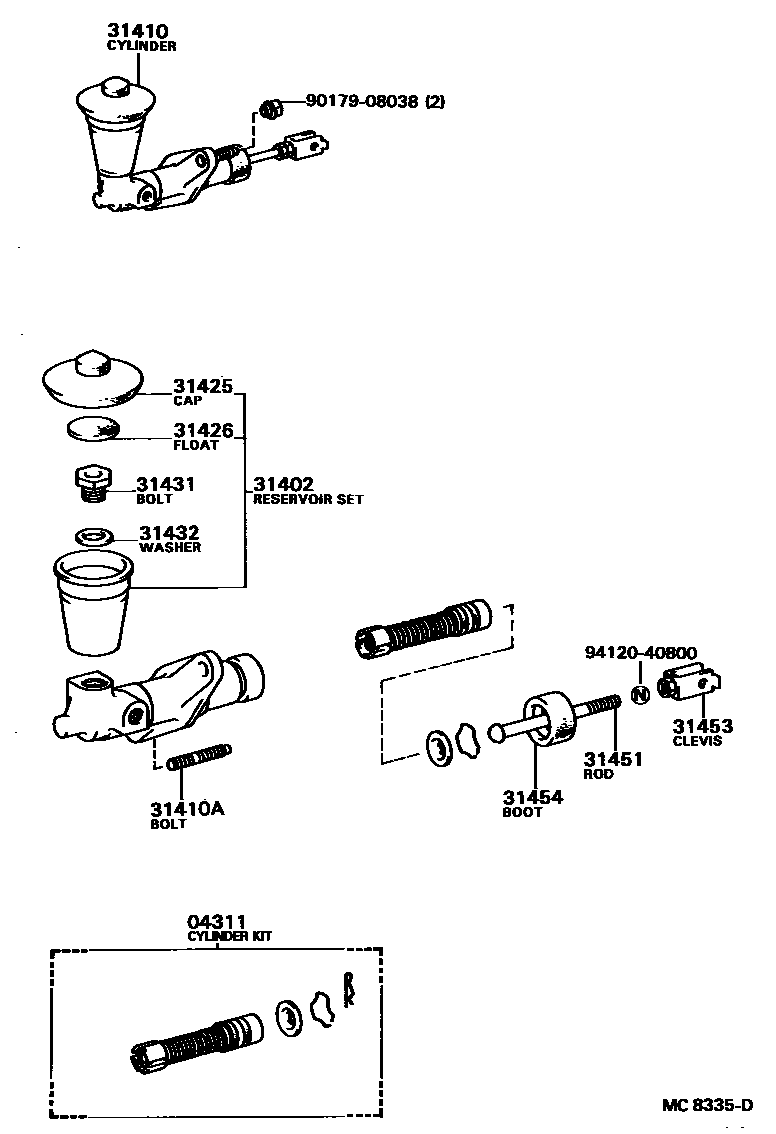

13 parts on this diagram · 1 diagram in section
