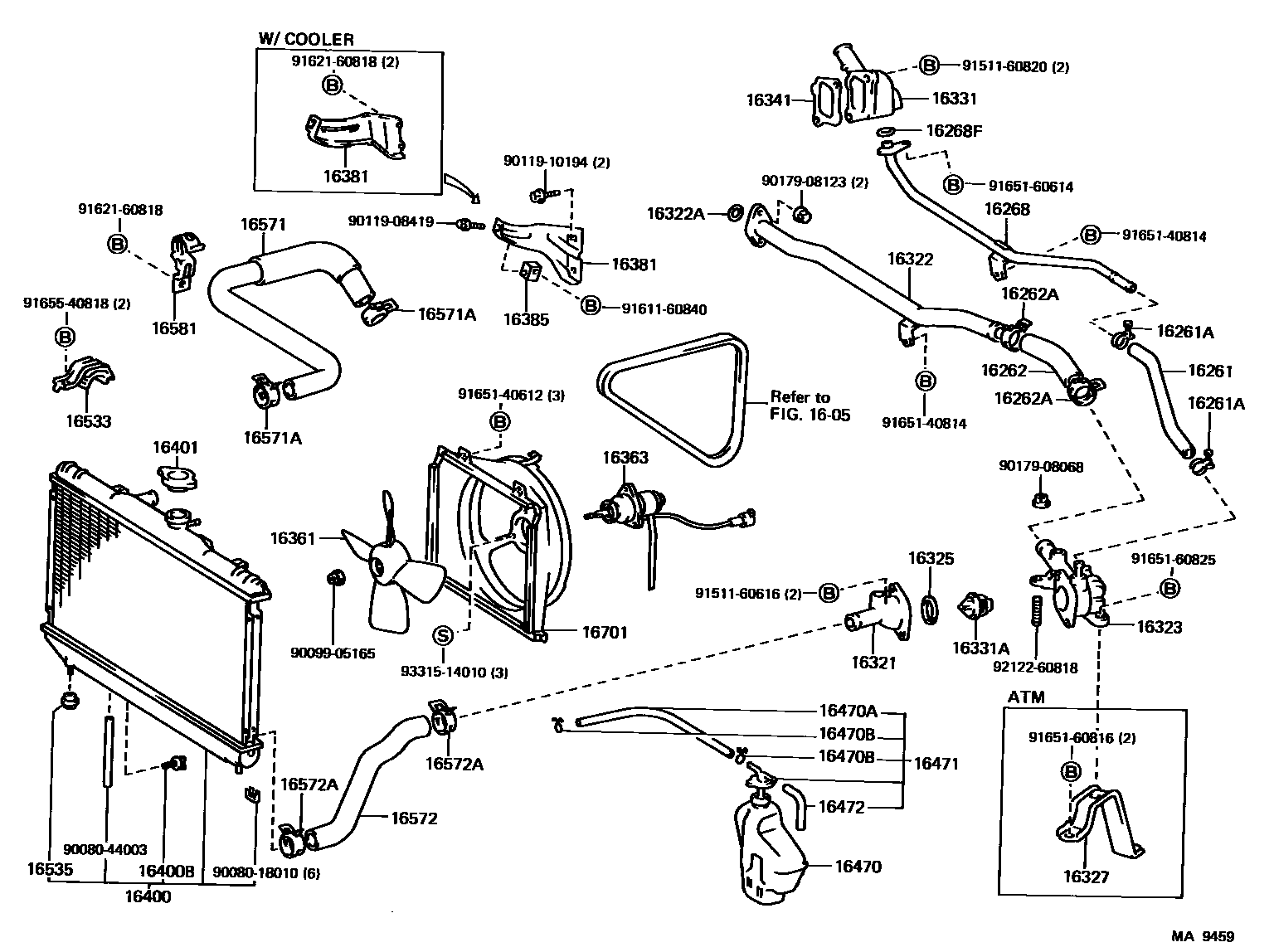

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1605

16261HOSE, WATER BY-PASS

main16261-15010i4A#..AE82198609-198808

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96112-10250i4A#..AE82198609-198808

16262HOSE, WATER INLET

main16262-15010i4A#..AE82198609-198808

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i4A#..AE82198609-198808

sub90467-34004

16268PIPE, WATER BY-PASS, NO.1

main16268-15060i4ALC..AE82198702-198808

main16268-16070i4AGELC..AE82198609-198808

sub16268-16071

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013i4A#..AE82198609-198808

16321INLET, WATER

main16321-15010i4A#..AE82198609-198808

16322PIPE, WATER INLET

main16322-15030i4ALC..AE82198702-198808

16322ARING, O(FOR WATER INLET)

main96711-24035i4ALC..AE82198702-198808

sub96761-24035

16323HOUSING, WATER INLET

main16323-15030i4ALC..AE82198702-198808

main16323-16050i4AGELC..AE82198609-198808

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i4A#..AE82198609-198808

sub16325-63011

16327BRACKET, WATER INLET HOUSING

main16327-15010i4ALC..AE82..ATM198702-198808

16331OUTLET, WATER

main16331-15060i4ALC..AE82198702-198808

main16331-16030i4AGELC..AE82198609-198808

16331ATHERMOSTAT

main90916-03046i4AGELC..AE82198609-198808

*WAX 82-95

main90916-03060i4AGELC..AE82198702-198808

*WAX 82-95

sub90916-03090

16341GASKET, WATER OUTLET

main16341-15011i4ALC..AE82198702-198808

sub16341-15012

main16341-16010i4AGELC..AE82198609-198701

sub16341-16020

main16341-16020i4AGELC..AE82198701-198808

16361FAN

main16361-15080i4ALC..AE82198609-198808

main16361-64010i4AGELC..AE82..ATM198609-198808

16363MOTOR, COOLING FAN

main16363-02011i4ALC..AE82198709-198808

sub16363-16030

main16363-02021i4AGELC..AE82..ATM198709-198808

main16363-16030i4AGELC..AE82..MTM198609-198709

main16363-64010i4AGELC..AE82..ATM198609-198709

16381BAR, FAN BELT ADJUSTING

main16381-16021i4ALC..AE82198702-198808

main16381-16030i4AGELC..AE82198609-198808

sub16381-16050

main88437-12260i4ALC..AE82198702-198808

W/COOLER

16385SLIDER, FAN BELT ADJUSTING

main16385-15010i4ALC..AE82198702-198808

16400RADIATOR ASSY

main16410-01011i4AGELC..AE82..MTM198609-198611

sub16410-01012

main16410-01012i4ALC..AE82..MTM198611-198808

main16410-01021i4AGELC..AE82..ATM198609-198611

sub16410-01022

main16410-01022i4AGELC..AE82..ATM198611-198808

16400BPLUG, RADIATOR DRAIN COCK

main23322-01010i4A#..AE82198609-198808

16401CAP SUB-ASSY, RADIATOR

main16401-01010i4A#..AE82198609-198808

sub16401-16010

16470TANK ASSY, RADIATOR RESERVE

main16400-63020i4ALC..AE82198702-198808

sub16400-74030

main16480-01010i4AGELC..AE82198609-198808

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90080-44001i4AGELC..AE82198609-198611

sub90080-44004

main90080-44004i4AGELC..AE82198611-198808

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90080-46035i4AGELC..AE82198609-198808

main90467-11085i4ALC..AE82198702-198808

16471CAP SUB-ASSY, RESERVE TANK

main16405-01010i4AGELC..AE82198609-198808

main16405-15030i4ALC..AE82198702-198808

sub16471-64040

16472HOSE, BREATHER

main85338-01010i4AGELC..AE82198609-198808

main85338-30010i4ALC..AE82198702-198808

16533SUPPORT, RADIATOR, UPPER

main16533-15062i4A#..AE82198609-198808

16535SUPPORT, RADIATOR, LOWER

main16535-01010i4A#..AE82198609-198808

16571HOSE, RADIATOR, INLET

main16571-15100i4ALC..AE82198702-198808

main16571-16040i4AGELC..AE82198609-198808

ENGINE SIDE

main16573-16030i4AGELC..AE82198609-198808

RADIATOR SIDE

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i4A#..AE82198609-198808

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-15150i4A#..AE82198609-198808

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i4A#..AE82198609-198808

sub90467-34004

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-15020i4ALC..AE82198702-198808

16701SHROUD SUB-ASSY, FAN

main16711-15150i4AGELC..AE82..MTM198609-198808

sub16711-15210

main16711-15191i4AGELC..AE82..ATM198609-198808

9008018010

main90080-18010

9008044003

main90080-44003

9009905165

main90099-05165

9011908419

main90119-08419

9011910194

main90119-10194

9017908068

main90179-08068

9017908123

main90179-08123

9151160616

main91511-60616

9151160820

main91511-60820

9161160840

main91611-60840

9162160818

main91621-60818

9165140612

main91651-40612

9165140814

main91651-40814

9165160614

main91651-60614

9165160816

main91651-60816

9165160825

main91651-60825

9165540818

main91655-40818

9212260818

main92122-60818

9331514010

main93315-14010

55 parts on this diagram · 3 diagrams in section
