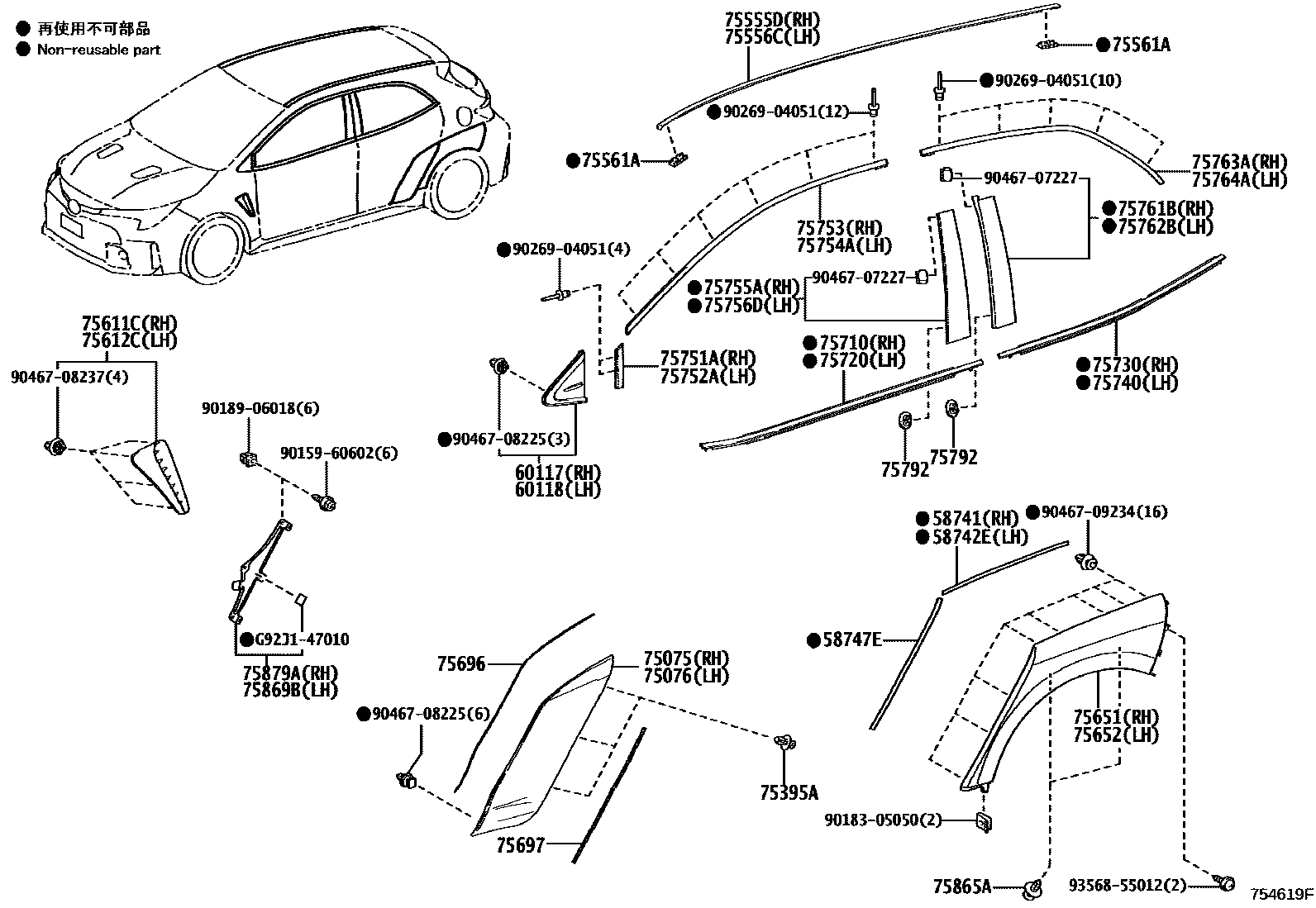

SIDE MOULDING
58741PROTECTOR, QUARTER PANEL, RH
58742EPROTECTOR, QUARTER PANEL, LH
58747EPROTECTOR, QUARTER PANEL, REAR
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75395ACLIP, OUTSIDE MOULDING, NO.1
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
DB-SIDE TAPE,T=2.0
CFRP ROOF-WITH
CFRP ROOF-WITH,DB-SIDE TAPE,T=2.0
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
CFRP ROOF-WITH
DB-SIDE TAPE,T=2.0
CFRP ROOF-WITH,DB-SIDE TAPE,T=2.0
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
CFRP ROOF-WITH
75611CMOULDING, FRONT FENDER, OUTSIDE RH
NO PAINT REQ.
75612CMOULDING, FRONT FENDER, OUTSIDE LH
NO PAINT REQ.
75651MOULDING, QUARTER, OUTSIDE RH
PAINT REQ.
75652MOULDING, QUARTER, OUTSIDE LH
PAINT REQ.
75696PAD, BODY OUTSIDE MOULDING, NO.1
75697PAD, BODY OUTSIDE MOULDING, NO.2
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)
75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75792CLIP, DOOR WINDOW FRAME MOULDING
75865ACLIP, REAR QUARTER PANEL MOULDING
75869BRETAINER, QUARTER OPENING, LH
75879ARETAINER, QUARTER OPENING, RH
9015960602
main90159-60602
9018305050
main90183-05050
9018906018
main90189-06018
9026904051
main90269-04051
9046707227
main90467-07227
9046708225
main90467-08225
9046708237
main90467-08237
9046709234
main90467-09234
9356855012
main93568-55012
G92J147010SHEET, HV BATTERY TRAY, NO.1
mainG92J1-47010
45 parts on this diagram · 2 diagrams in section
