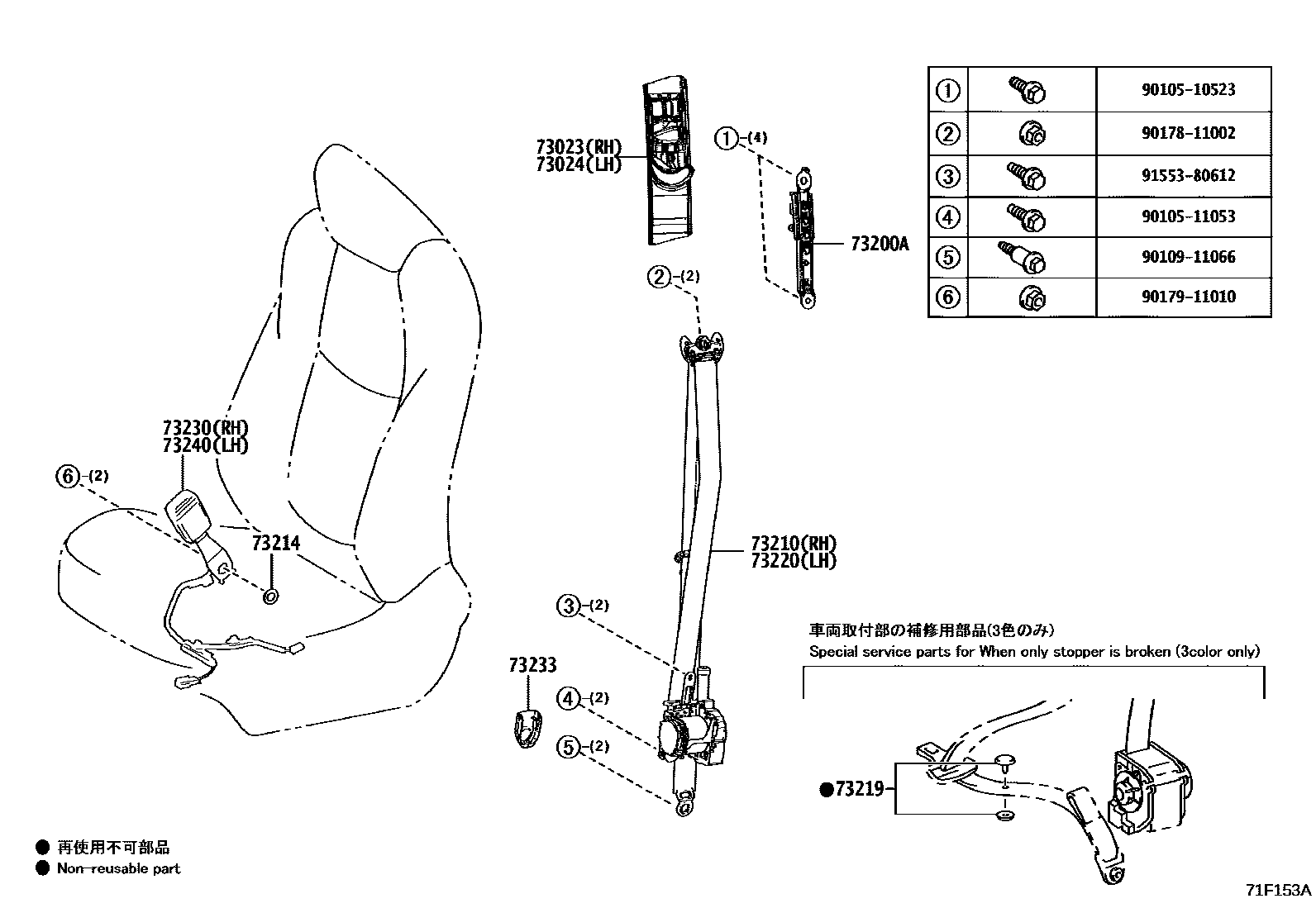

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iGZEA14202210-202409

BLACK,TRIM2#,3#

main73023-12030-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iGZEA14202210-202409

BLACK,TRIM2#,3#

main73024-12020-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-42020iGZEA14¥3,340202210-202409

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47273-C5iGZEA14202210-202409

BLACK/BLACK,TRIM2#,3#

main73210-47273-D0iGZEA14..02S202212-202304

RED,TRIM3#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iGZEA14..02S¥170202210-202409

73219STOPPER, TONGUE PLATE

main73219-02010iGZEA14¥80202210-202409

BLACK

main73219-02020iGZEA14¥80202210-202409

GRAY

main73219-02030iGZEA14¥80202210-202409

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47222-C7iGZEA14202210-202409

BLACK/BLACK,TRIM2#,3#

main73220-47222-D0iGZEA14..02S202212-202304

RED,TRIM3#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12C30-C0iGZEA14202210-202409

BLACK,TRIM2#,3#

main73230-12C30-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iGZEA14202210-202409

BLACK,TRIM2#,3#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iGZEA14..02S202212-202304

BLACK,TRIM3#

sub73233-60020¥500

sub73233-35010¥620

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-12C90-C0iGZEA14202210-202409

BLACK,TRIM2#,3#

main73230-12C90-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

9010510523

main90105-10523¥100

9010511053

main90105-11053¥100

9010911066

main90109-11066¥190

9017811002

main90178-11002¥100

9017911010

main90179-11010¥110

9155380612

main91553-80612¥60

16 parts on this diagram · 2 diagrams in section
