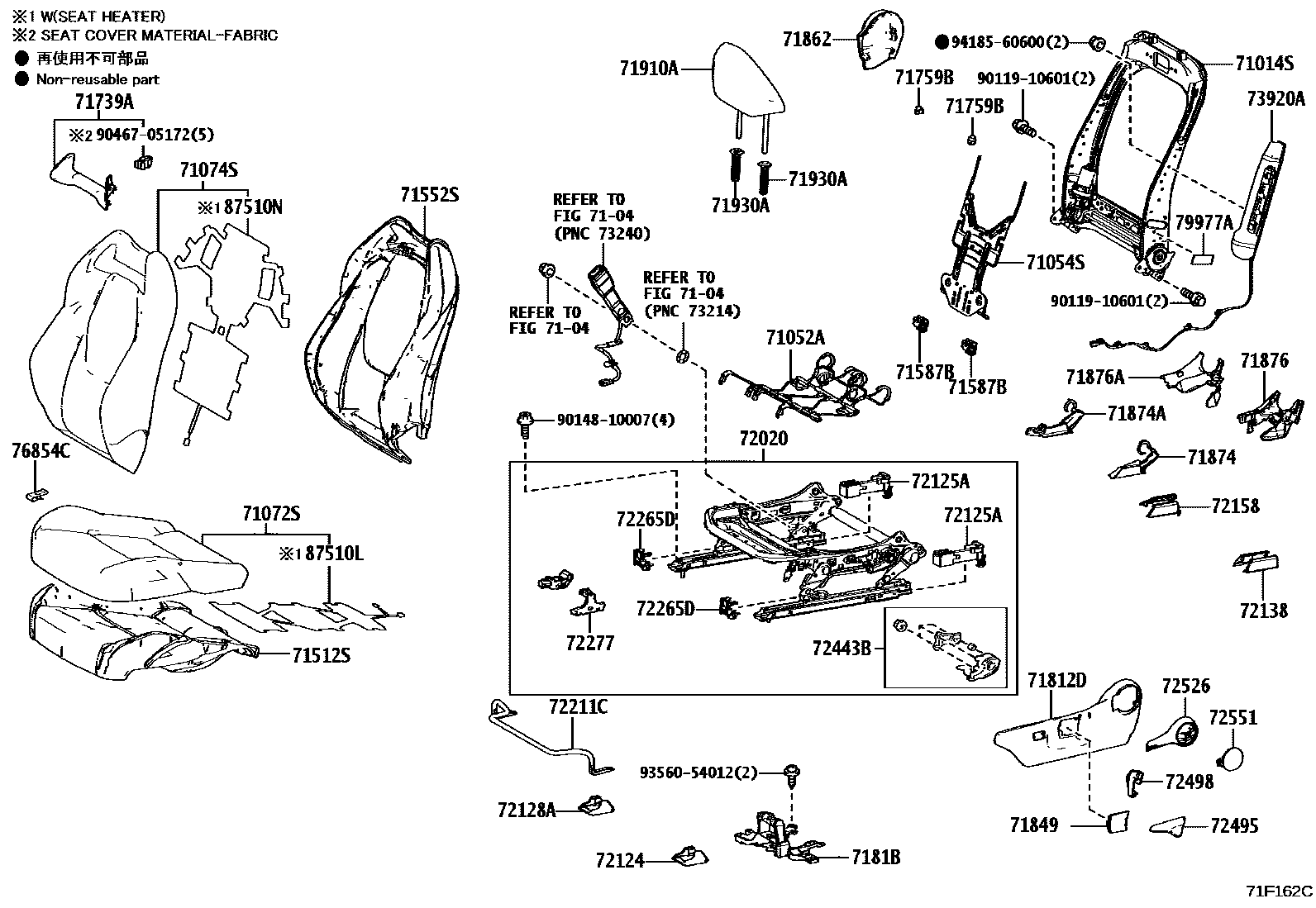

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
BLACK/GRAY,TRIM2#
BLACK/RED,TRIM3#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
BLACK/GRAY,TRIM2#
BLACK/RED,TRIM3#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71587BPROTECTOR, FRONT SEATBACK EDGE
71739ABEZEL, FRONT SEATBACK
71759BHOOK, FRONT SEATBACK
71812DSHIELD, FRONT SEAT CUSHION, LH
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
71849CAP, SEAT ADJUSTER COVER, LH
BLACK,TRIM2#,3#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
71876COVER, RECLINING ADJUSTER INSIDE, LH
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#
71930ASUPPORT ASSY, FRONT SEAT HEADREST
W(LOCK),BLACK,TRIM2#,3#
W/O(LOCK),BLACK,TRIM2#,3#
72020ADJUSTER ASSY, FRONT SEAT, LH
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72125ACOVER, SEAT TRACK, UPPER REAR
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
72138COVER, SEAT TRACK, OUTER LH
72158COVER, SEAT TRACK BRACKET, INNER LH
72211CHANDLE, SEAT TRACK ADJUSTING
FOR RH SEAT
FOR LH SEAT
72265DCOVER, SEAT TRACK UPPER RAIL
72277PROTECTOR, SEAT SLIDE POSITION SENSOR,
72443BGEAR, VERTICAL ADJUSTER, LH
72495HANDLE, VERTICAL ADJUSTING, LH
BLACK,TRIM2#,3#
72498COVER, VERTICAL ADJUSTER BRACKET
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
BLACK,TRIM2#,3#
BLACK,TRIM3#
72551COVER, RECLINING HINGE, NO.1
BLACK,TRIM2#,3#
BLACK,TRIM3#
73920AAIRBAG ASSY, FRONT SEAT, LH
76854CRETAINER, FRONT SEAT CUSHION COVER
79977AFELT, SEATBACK
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510NHEATER ASSY, FRONT SEATBACK, LH
9011910601
main90119-10601
9014810007
main90148-10007
9046705172
main90467-05172
9356054012
main93560-54012
9418560600
main94185-60600
45 parts on this diagram · 4 diagrams in section
