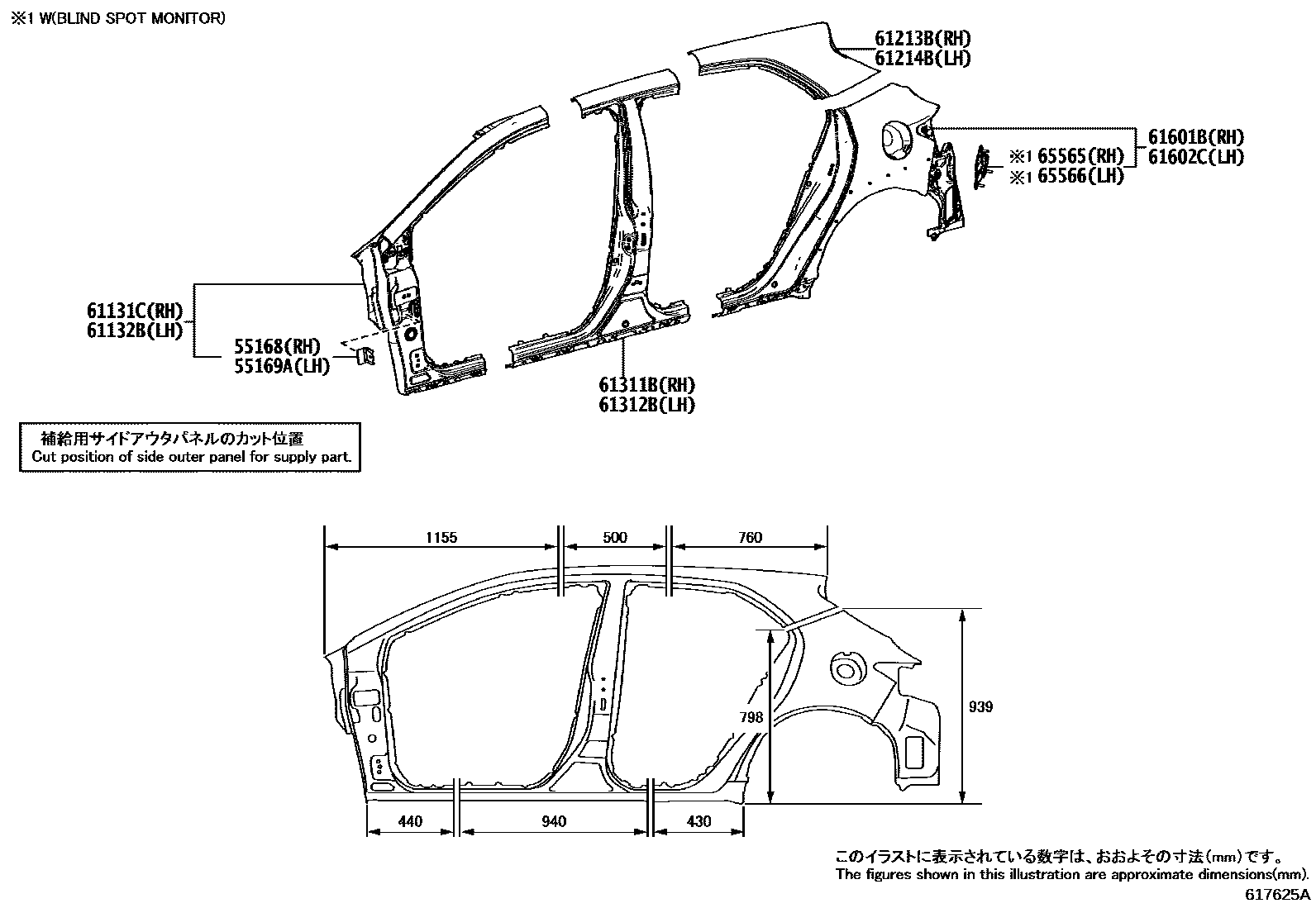

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

55168BRACKET, FRONT FENDER MOUNTING, RH

main53879-68020iGZEA14..02S202210-202409

55169ABRACKET, FRONT FENDER MOUNTING, LH

main53879-68020iGZEA14202210-202409

61131CPILLAR, FRONT BODY, OUTER RH

main61131-12880iGZEA14202210-202409

61132BPILLAR, FRONT BODY, OUTER LH

main61132-12860iGZEA14202210-202409

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-12150iGZEA14202210-202409

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-12150iGZEA14202210-202409

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12560iGZEA14202210-202409

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12600iGZEA14202210-202409

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-12C90iGZEA14202409

main61601-12D00iGZEA14..02S202210-202409

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-12C90iGZEA14202409

main61602-12D00iGZEA14..05S202210-202409

65565PATCH, SIDE PANEL REAR END, RH

main65565-50010iGZEA14202409

65566PATCH, SIDE PANEL REAR END, LH

main65565-50010iGZEA14202409

12 parts on this diagram · 3 diagrams in section
