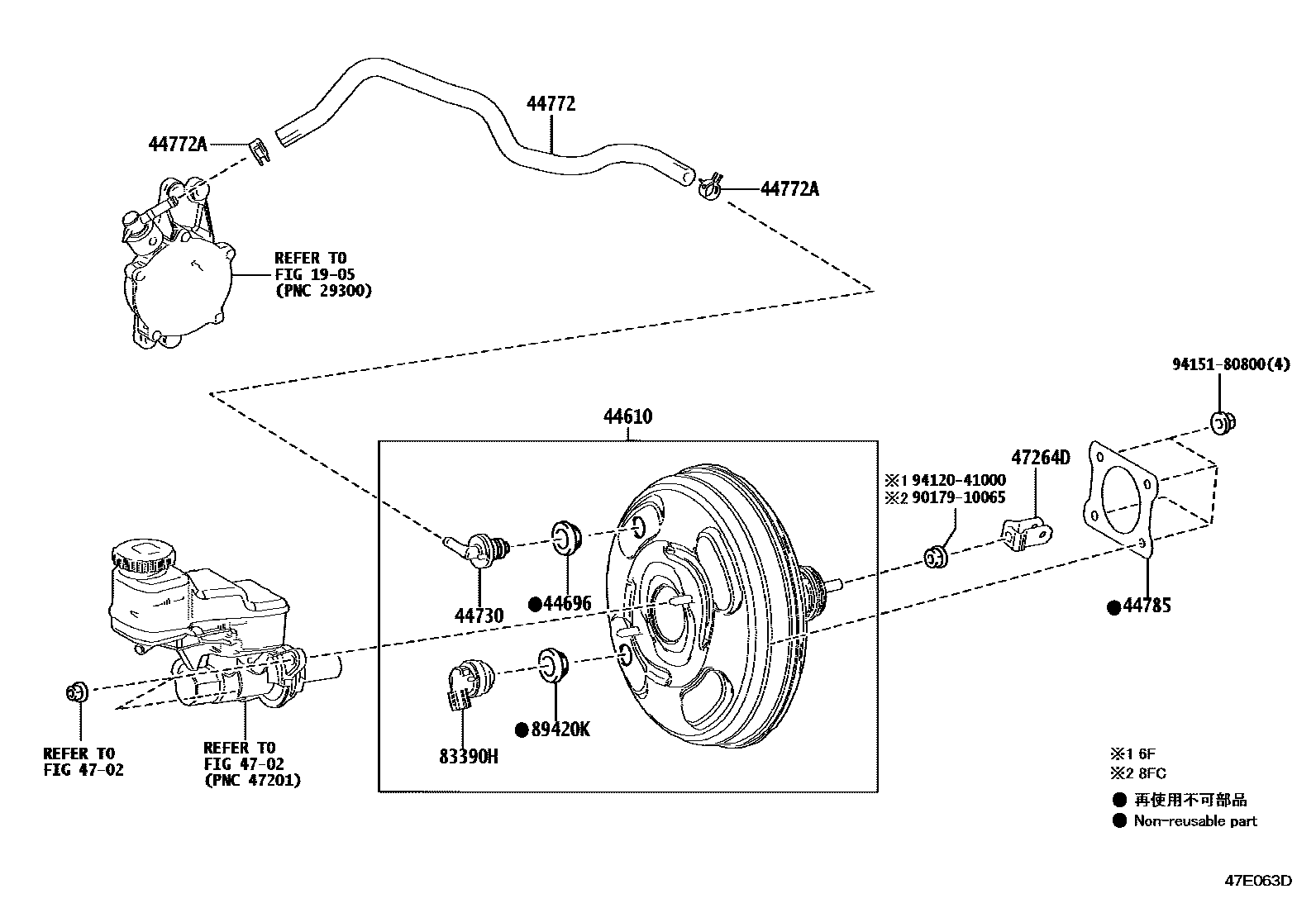

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-12N90iGZEA14..02S202210-202409

44696GROMMET, CHECK VALVE

main90480-24439iGZEA14¥390202210-202409

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iGZEA14¥1,300202210-202409

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12890iGZEA14202210-202409

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iGZEA14..05S¥230202210-202409

44785GASKET, BRAKE BOOSTER

main44785-12040iGZEA14..02S¥200202210-202409

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52060iGZEA14..8FC202409

main47264-63020iGZEA14¥260202311-202409

main47264-68010iGZEA14..05S¥300202210-202311

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGZEA14¥3,780202210-202409

89420KGROMMET, VACUUM SENSOR

main90480-24439iGZEA14¥390202210-202409

9017910065

main90179-10065¥90

9412041000

main94120-41000¥80

9415180800

main94151-80800¥80

14 parts on this diagram · 1 diagram in section
