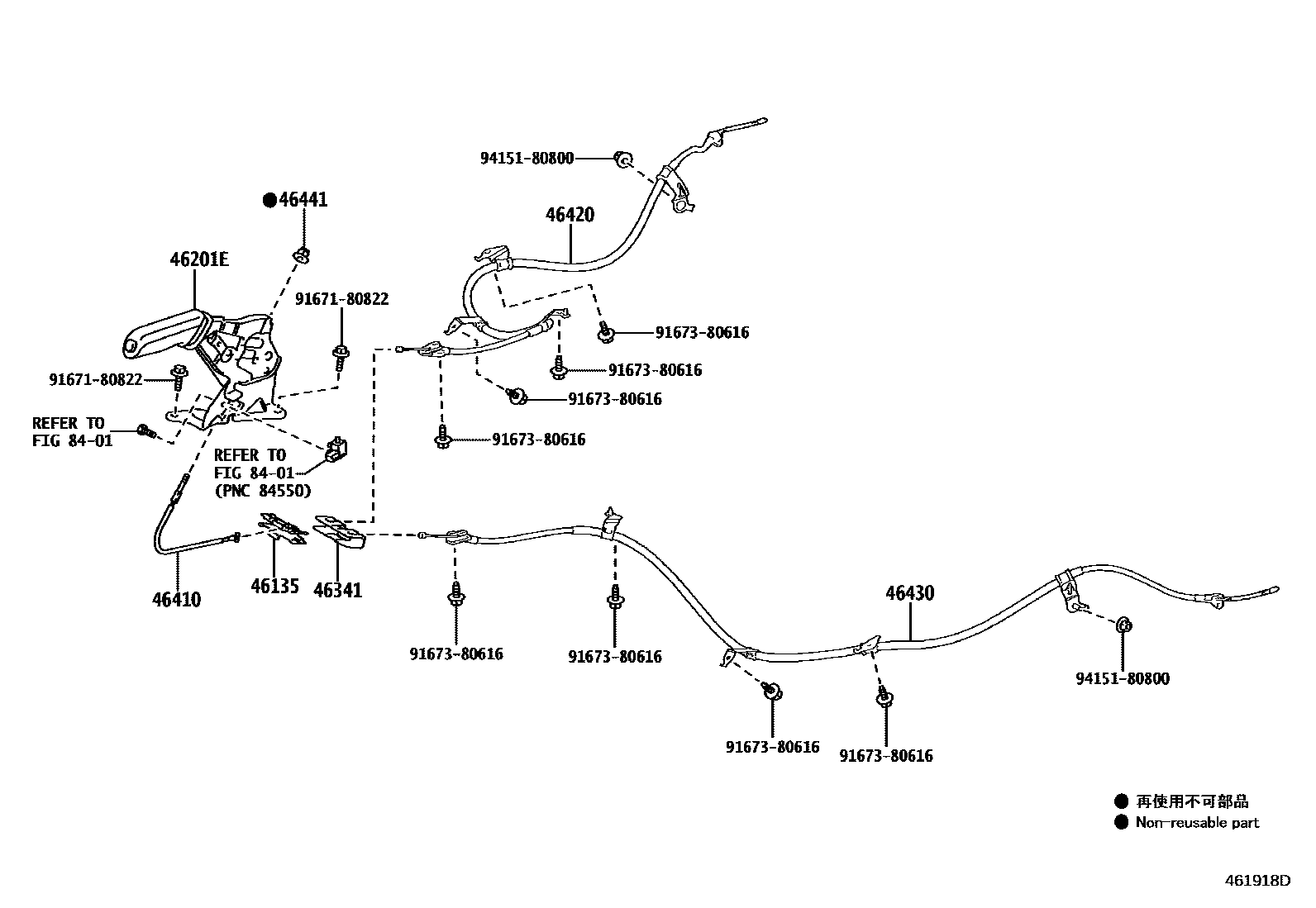

PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iGZEA14..05S202210-202409

main46135-12010iGZEA14202409

REAR WHEEL BRAKE-SPORT PAD(DOP)

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12580-C1iGZEA14..05S202210-202409

BLACK/GR RED GOSEN Y55,TRIM3#

main46201-12580-C2iGZEA14202309-202409

BLACK/GRAY NO.205,TRIM20

main46201-12580-C2iGZEA14..05S202210-202309

BLACK/GRAY NO.205,TRIM2#

main46201-12580-C3iGZEA14202309-202409

BLACK,TRIM21

main46201-12590-C0iGZEA14..02S202212-202304

BLACK/GR RED GOSEN Y55,TRIM3#

main46201-12600-C0iGZEA14202409

REAR WHEEL BRAKE-SPORT PAD(DOP),BLACK/GR RED GOSEN Y55,TRIM3#

main46201-12600-C0iGZEA14..USA202409

BLACK/GR RED GOSEN Y55,TRIM3#

main46201-12600-C1iGZEA14..USA202409

BLACK/GRAY NO.205,TRIM2#

main46201-12600-C1iGZEA14202409

REAR WHEEL BRAKE-SPORT PAD(DOP),BLACK/GRAY NO.205,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-12040iGZEA14202409

REAR WHEEL BRAKE-SPORT PAD(DOP)

main46341-12040iGZEA14..02S202210-202409

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12410iGZEA14..02S202210-202409

main46410-12410iGZEA14202409

REAR WHEEL BRAKE-SPORT PAD(DOP)

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12840iGZEA14202409

REAR WHEEL BRAKE-SPORT PAD(DOP)

main46420-12840iGZEA14..02S202210-202409

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12730iGZEA14202409

REAR WHEEL BRAKE-SPORT PAD(DOP)

main46430-12730iGZEA14..02S202210-202409

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iGZEA14202409

REAR WHEEL BRAKE-SPORT PAD(DOP)

main90177-06003iGZEA14..02S202210-202409

8401

9167180822

main91671-80822

9167380616

main91673-80616

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section
