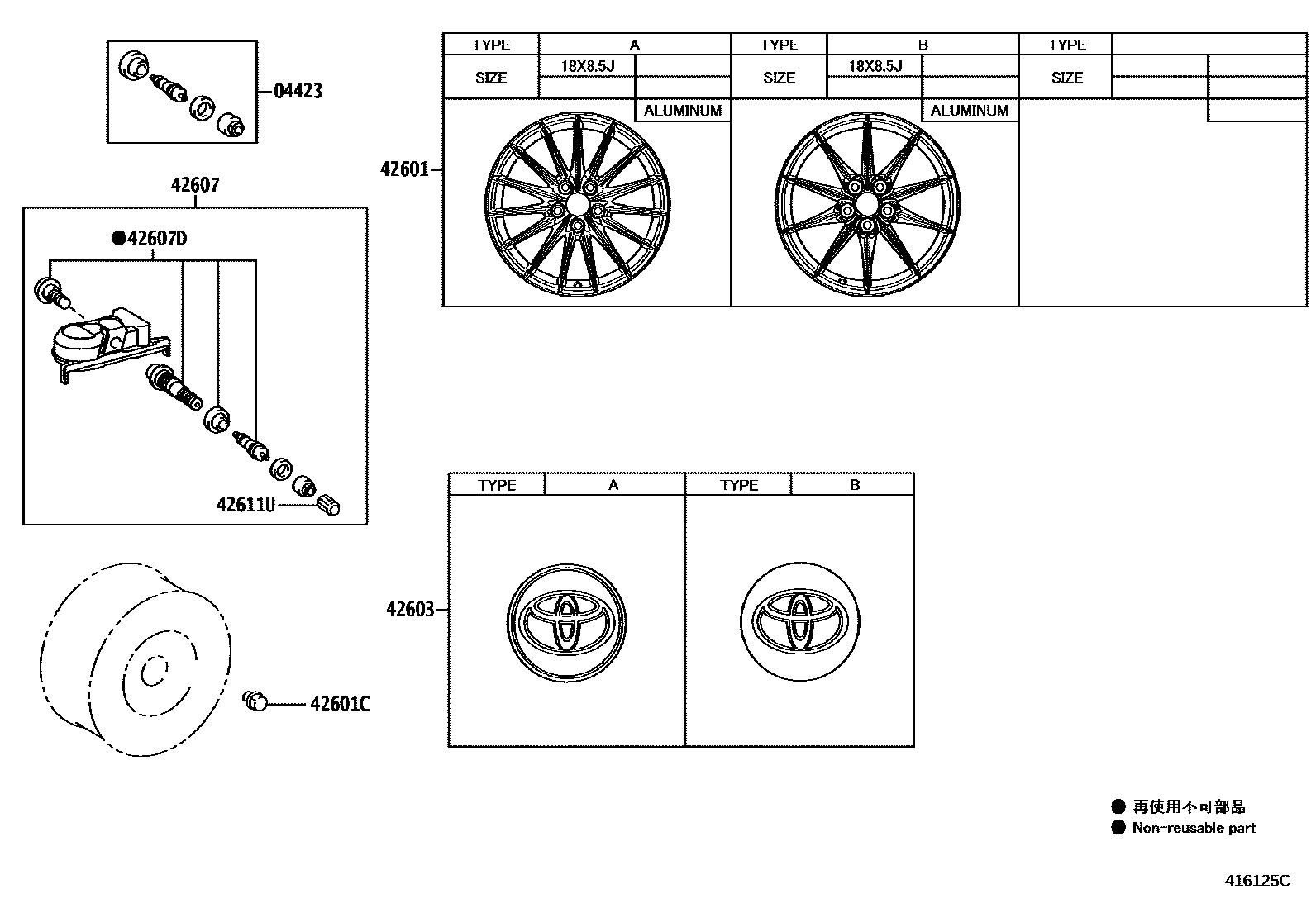

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
18X8.5J,#,CFRP ROOF-WITH,TYPE A:REFER ILLUST.
18X8.5J,#,TYPE A:REFER ILLUST.
18X8.5J,#,HIGH GRADE PACKAGE,TYPE B:REFER ILLUST.
18X8.5J,#,TYPE B:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TIRE & DISC WHEEL-235/40R18,SUMMER TIRE,ALUMINUM&CFRP ROOF-WITH
HIGH GRADE PACKAGE&TIRE & DISC WHEEL-235/40R18,SUMMER TIRE,ALUMINUM(FORGING)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
*ALU,TYPE B:REFER ILLUST.
*ALU,HIGH GRADE PACKAGE&TIRE & DISC WHEEL-235/40R18,SUMMER TIRE,ALUMINUM(FORGING),TYPE B:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-235/40R18,SUMMER TIRE,ALUMINUM&CFRP ROOF-WITH,TYPE B:REFERILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607DVALVE, TIRE PRESSURE MONITOR
42611UCAP, TIRE VALVE
7 parts on this diagram · 1 diagram in section
