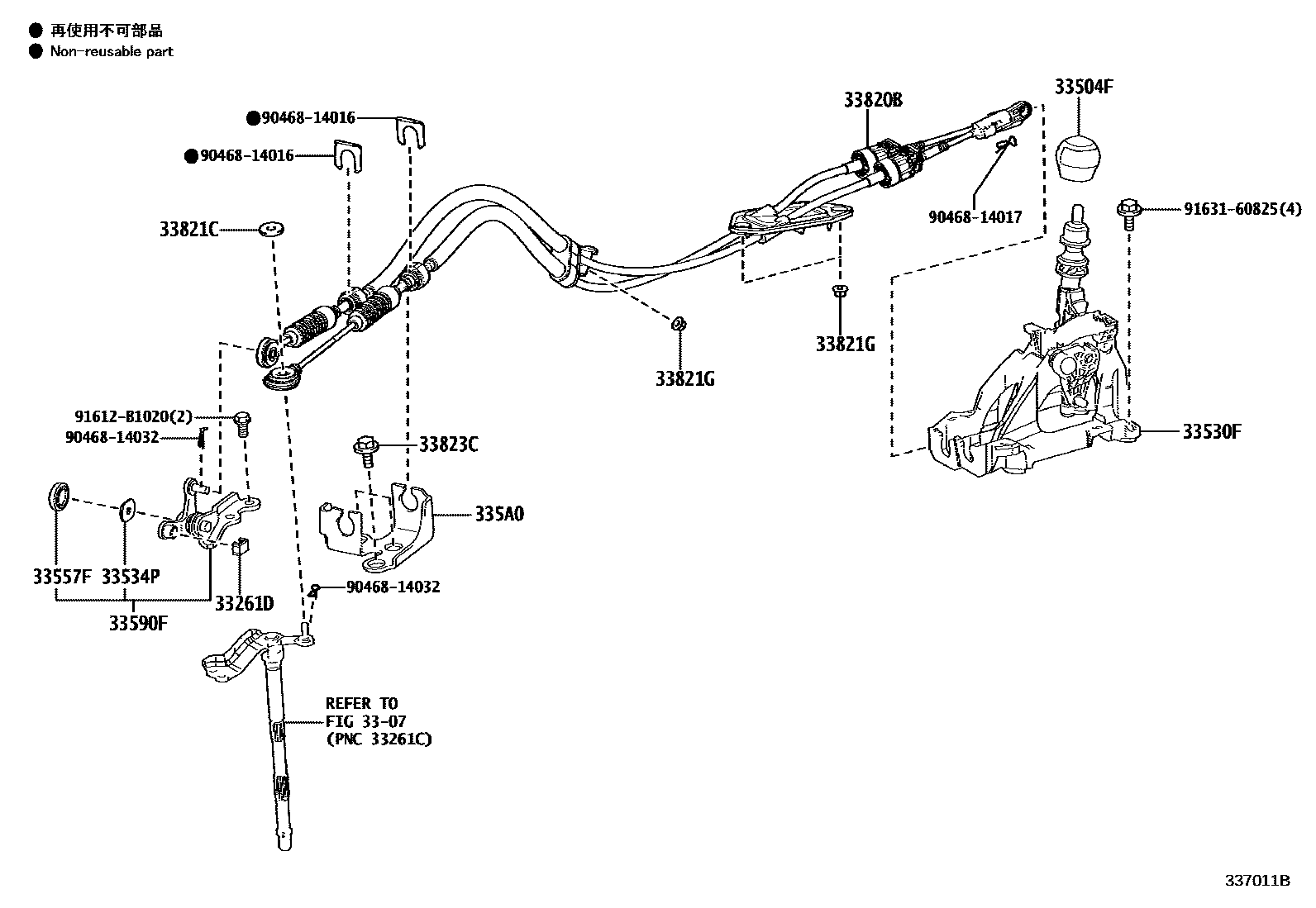

SHIFT LEVER & RETAINER

0001 1 0002 1

3307

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iGZEA14..6F202210-202409

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12830-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

main33504-12850-C0iGZEA14..6F202409

BLACK,TRIM2#,3#

main33504-52640-C0iGZEA14..05S202210-202409

BLACK,TRIM2#,3#

main33542-52290-C0iGZEA14..8FC202409

BLACK,TRIM2#,3#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-52341iGZEA14..05S202210-202409

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-08028iGZEA14..6F202210-202409

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iGZEA14..6F202210-202409

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-20040iGZEA14..6F202210-202409

335A0BRACKET ASSY, CONTROL CABLE

main33524-12150iGZEA14..02S202212-202304

main335A0-52060iGZEA14..6F202210-202409

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-12G50iGZEA14..05S202210-202409

main33820-12K20iGZEA14..8FC202409

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08267iGZEA14..6F202210-202409

OD=28

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-06274iGZEA14..02S202210-202409

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-52160iGZEA14..8FC202409

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60iGZEA14..6F202210-202409

main91611-G0820iGZEA14..02S202212-202304

9046814016

main90468-14016

9046814017

main90468-14017

9046814032

main90468-14032

91612B1020

main91612-B1020

9163160825

main91631-60825

18 parts on this diagram · 2 diagrams in section
