HEATING & AIR CONDITIONING - WATER PIPING

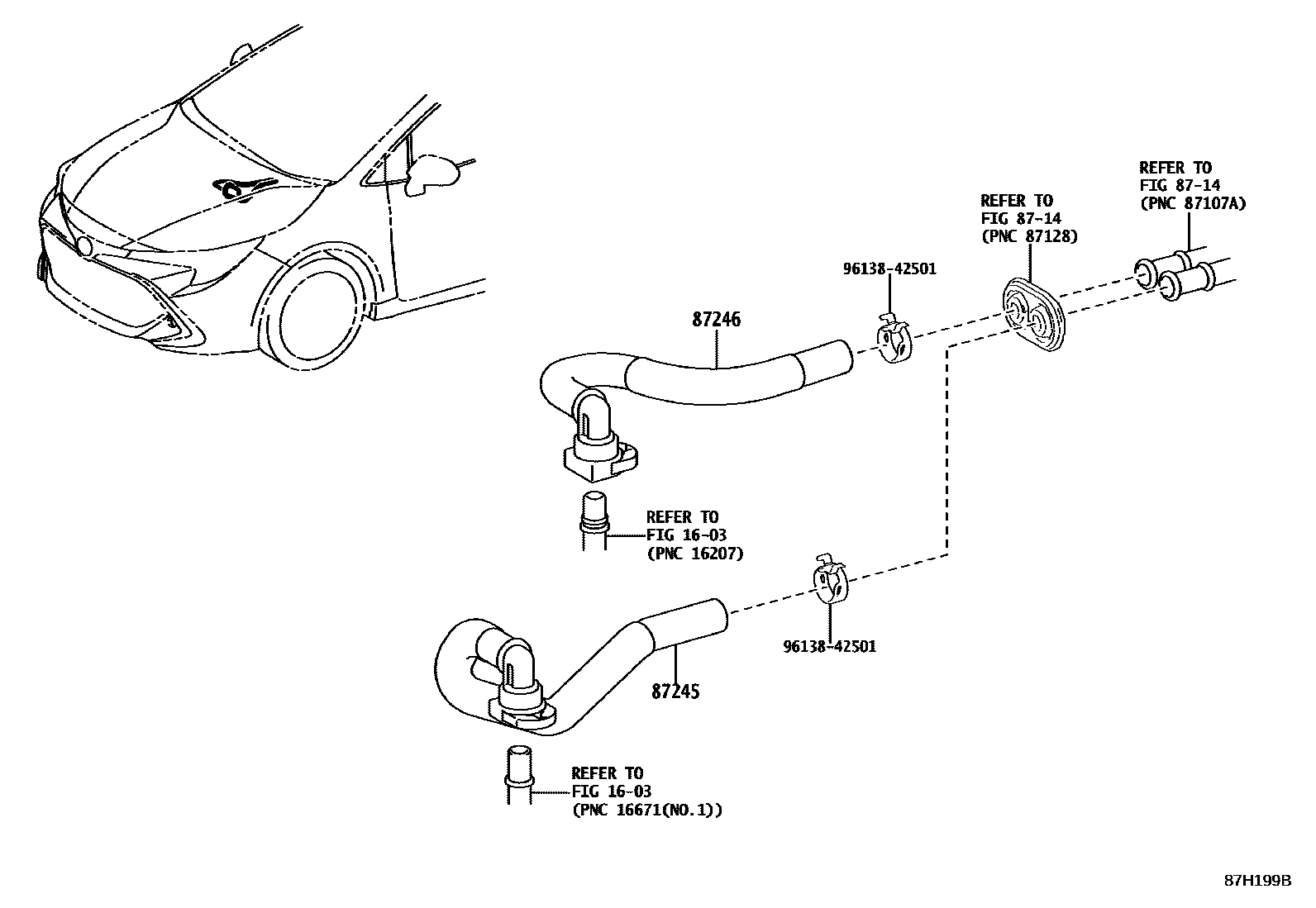

Parts diagram

1603

8714

87245HOSE, HEATER WATER, INLET

main87209-12640i201806-202209

87246HOSE, HEATER WATER, OUTLET

main87209-12710i201806-202209

9613842501

main96138-42501

5 parts on this diagram · 1 diagram in section
