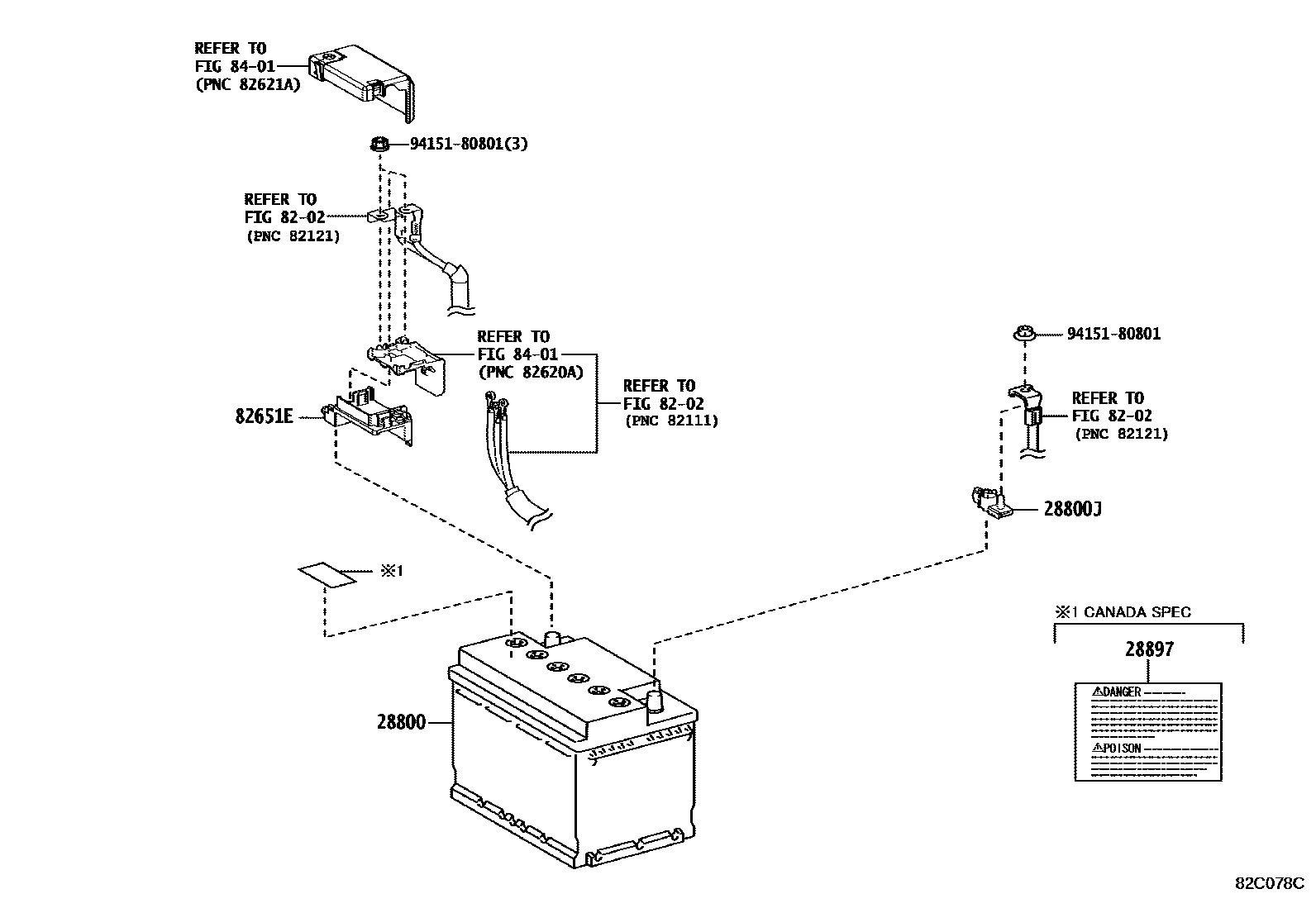

BATTERY & BATTERY CABLE

28800BATTERY

main28800-25010iM20AFKS..MZEA12201806-202107

LN2

sub28800-25011

main28800-37170iM20AFKS..MZEA12202107-202302

LN1

sub28800-37171

main28800-37171iM20AFKS..MZEA12202303-202403

LN1

sub28800-37172

main28800-37172iM20AFKS..MZEA12202404

LN1

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070iM20AFKS..MZEA12..CVT201806-202209

28897PLATE, BATTERY CAUTION

main28897-46020iM20AFKS..MZEA12..CND201806-202107

8202

82651EBLOCK, TERMINAL

main82651-10010iMZEA12..CVT201806-202209

8401

9415180801

main94151-80801

7 parts on this diagram · 1 diagram in section
