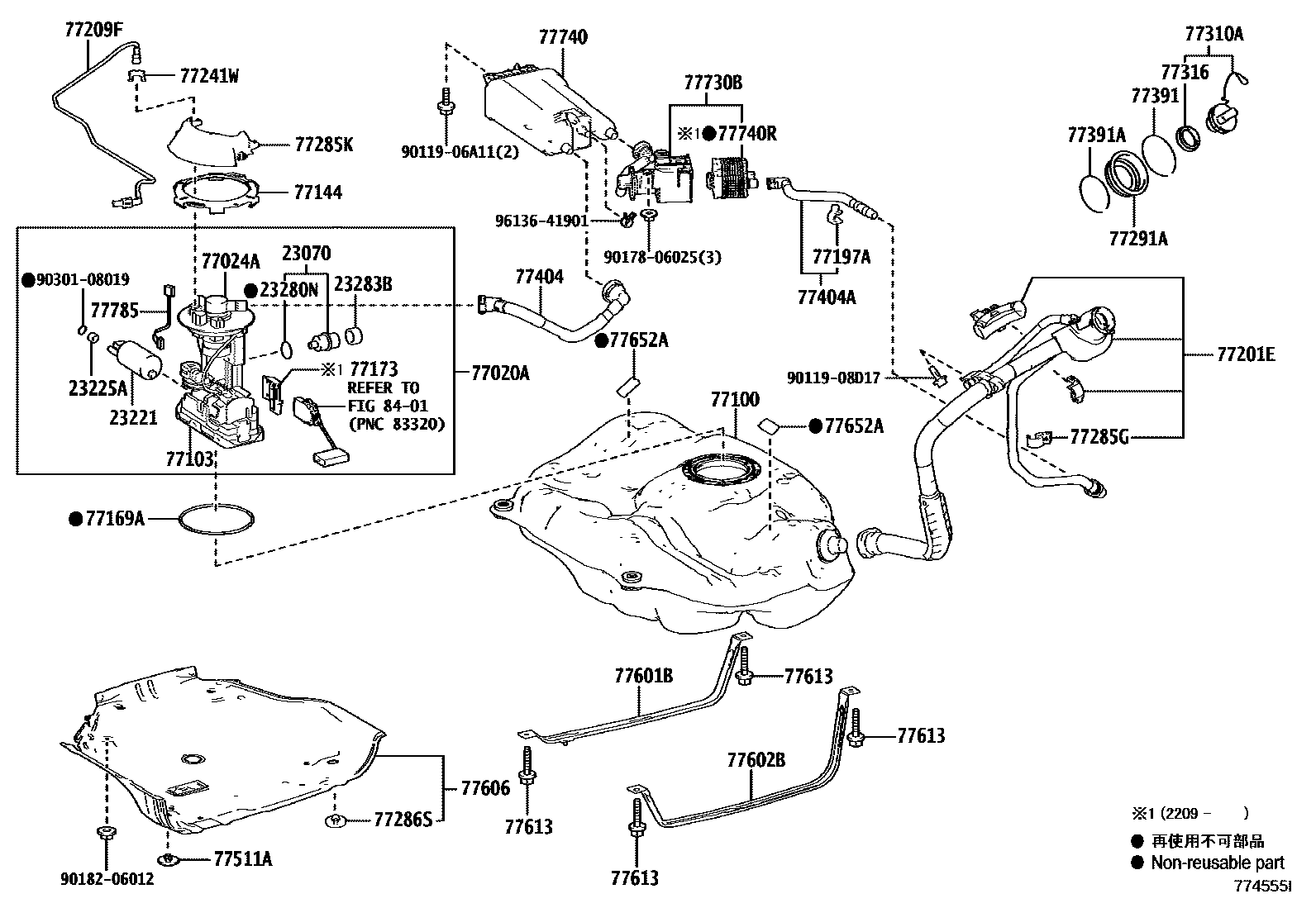

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2
23283BHOLDER, FUEL PRESSURE REGULATOR
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77173BRACKET, FUEL GAGE
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77285GCLAMP, FUEL TUBE, NO.1
77285KCLAMP, FUEL TUBE, NO.1
77286SCUSHION, FUEL TANK PROTECTOR
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77404AHOSE SUB-ASSY, FUEL TANK VENT
77511ABRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613BOLT, FUEL TANK BAND SET
77652ACUSHION, FUEL TANK, NO.2
77730BCANISTER ASSY, CHARCOAL W/OUTLET HOSE
77740CANISTER ASSY, CHARCOAL
77740RPUMP SUB-ASSY, LEAK DETECTION
8401
9011906A11
main90119-06A11
9011908D17
main90119-08D17
9017806025
main90178-06025
9018206012
main90182-06012
9030108019
main90301-08019
9613641901
main96136-41901
43 parts on this diagram · 4 diagrams in section
