SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-12070i201806-202209

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-12070i201806-202209

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-12210i201806-202209

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-12220i201806-202209

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-33030i201806-202209

75711BMOULDING, FRONT DOOR BELT, RH

main75710-12850i201806-201810

sub75710-12890

main75710-12890i201811-202209

75712BMOULDING, FRONT DOOR BELT, LH

main75720-12850i201806-201810

sub75720-12A30

main75720-12A30i201811-202209

75721AMOULDING, REAR DOOR BELT, RH

main75730-12440i201806-201905

sub75730-12441

main75730-12441i201906-202209

75722AMOULDING, REAR DOOR BELT, LH

main75740-12530i201806-201905

sub75740-12531

main75740-12531i201906-202209

75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)

main75751-12250i201806-202209

75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)

main75752-12250i201806-202209

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-12100i201806-202209

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-12080i201806-202209

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-12140i201806-202209

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-12160i201806-202209

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-12090i201806-202209

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-12090i201806-202209

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-12110i201806-202209

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-12120i201806-202209

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010i201806-202209

9026904051

main90269-04051

9046707227

main90467-07227

9046708225

main90467-08225

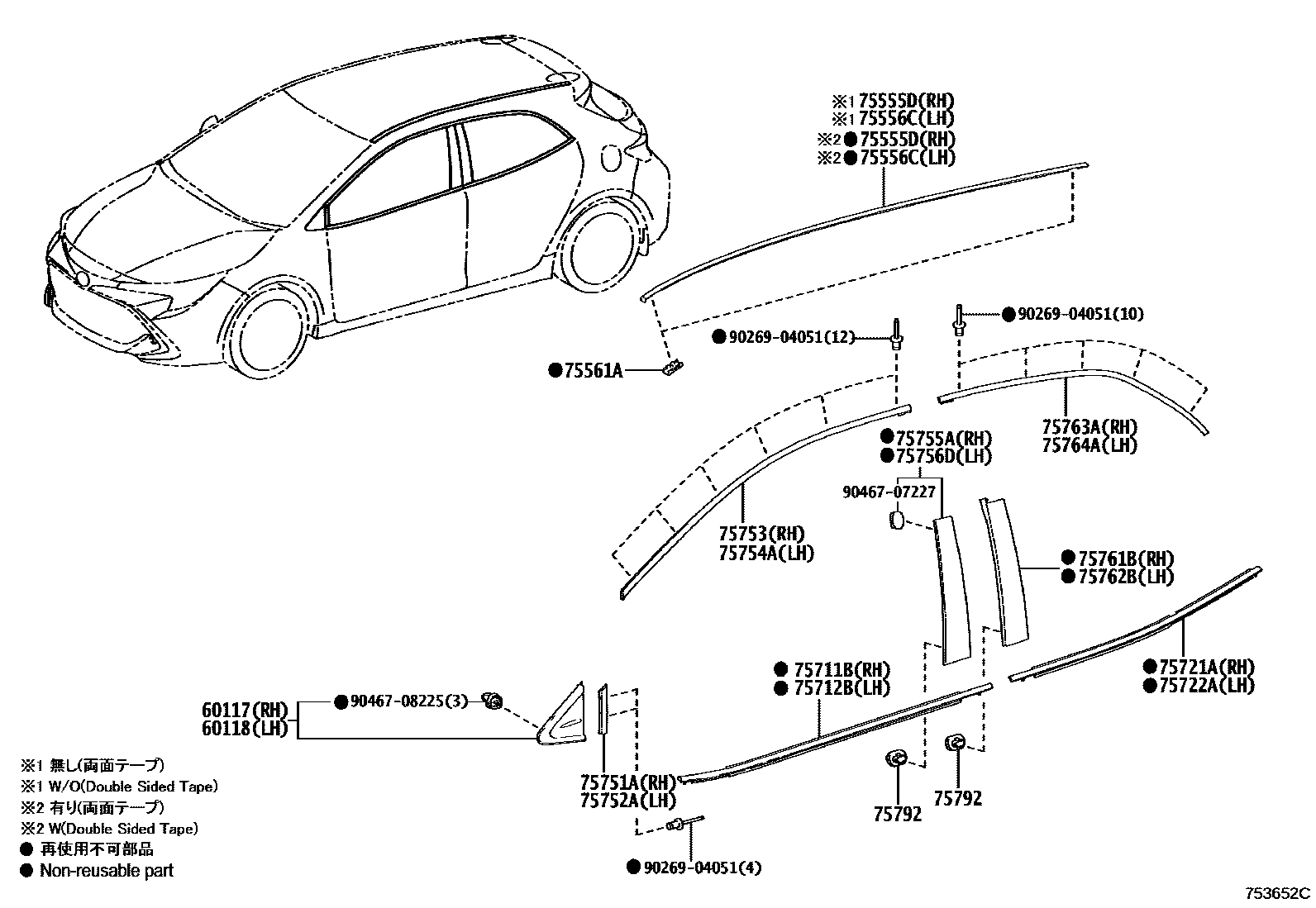

23 parts on this diagram · 2 diagrams in section
