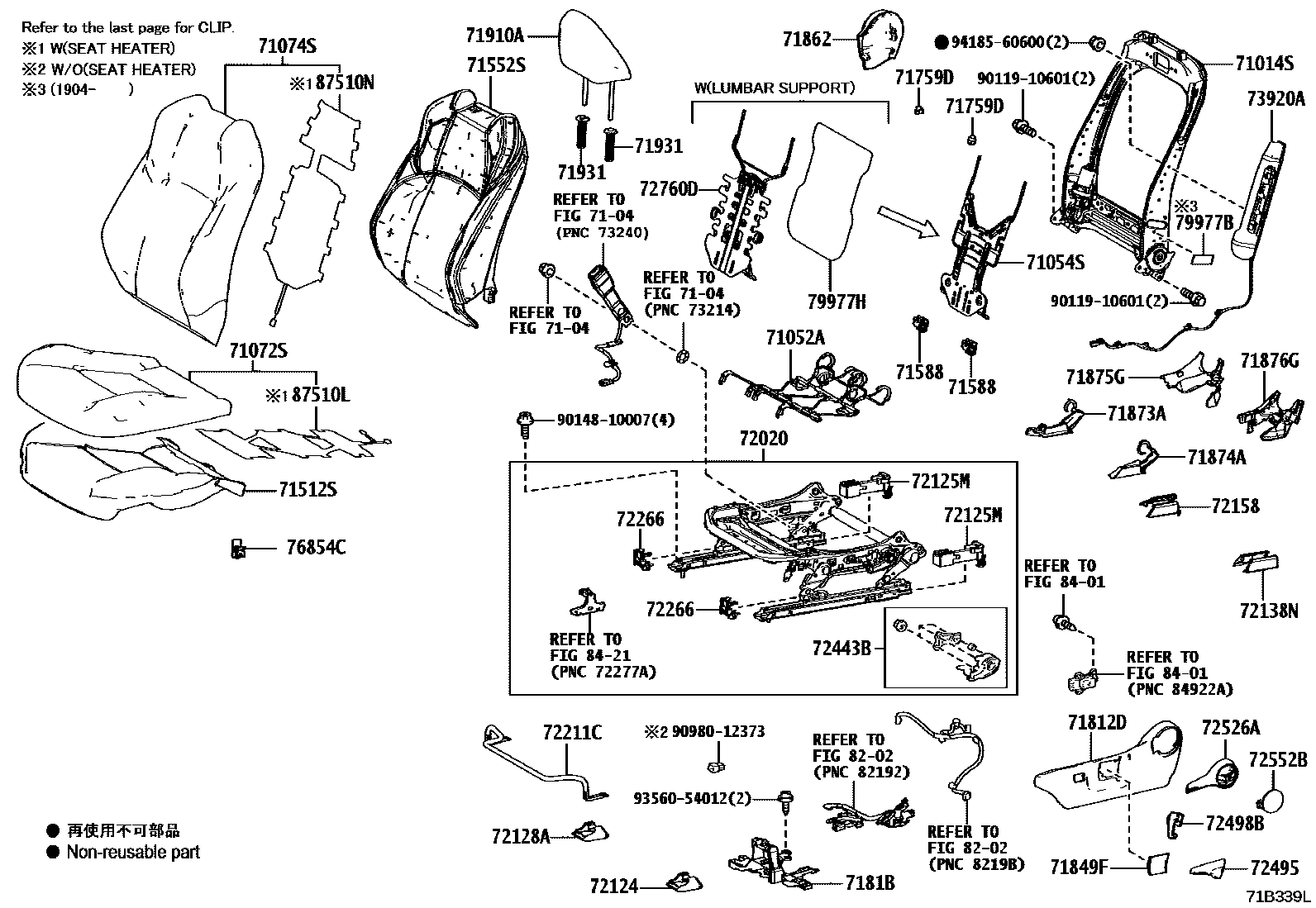

FRONT SEAT & SEAT TRACK

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-12680i202006-202208

main71014-33390i201806-202006

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-47090i201806-202209

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-47050i201806-202209

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-1AD50-C4i201806-202209

BLACK/GRAY DOT,TRIM2#

main71072-1AD50-C5i201806-202209

COOL GRAY,TRIM1#

main71072-1AN10-C0i202209-202405

BLACK/GRAY DOT,TRIM2#

main71072-1AN10-C1i202209-202405

COOL GRAY,TRIM1#

main71072-1AN11-C2i202405

BLACK/GRAY,TRIM2#

main71072-1AN11-C3i202405

COOL GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-1AD30-C2i201806-202209

BLACK/GRAY DOT,TRIM2#

main71074-1AD30-C3i201806-202209

COOL GRAY/BLACK/GRAY DOT,TRIM1#

main71074-1AM90-C0i202209

BLACK/GRAY DOT,TRIM2#

main71074-1AM90-C1i202209

COOL GRAY,TRIM1#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-12470i201806-202209

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-12710i201806-202209

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71587-47010i201806-202209

71759DHOOK, FRONT SEATBACK, NO.2

main71759-50040i202006-202209

main71759-52050i201806-202006

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-47130-C1i201806-202209

BLACK,TRIM1#,2#

sub71812-47130

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-47010i201806-202209

71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

main71849-12020-C0i202303

BLACK,TRIM1#,2#

main71849-47010-C1i201806-202303

BLACK,TRIM1#,2#

sub71849-47010

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-47090-C1i201806-202209

BLACK,TRIM1#,2#

sub71862-47090

main71862-47090-C1i202209

Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#

sub71862-47090

main71862-47090-C1i202209

Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#

sub71862-47090

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71874-47080i201806-202209

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47070i201806-202209

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-47080-C1i201806-202209

BLACK,TRIM1#,2#

sub71876-47080

main71876-47080-C1i202209

Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#

sub71876-47080

main71876-47080-C1i202209

Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#

sub71876-47080

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-47040-C1i201806-202209

BLACK,TRIM1#,2#

sub71876-47040

main71876-47040-C1i202209

Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#

sub71876-47040

main71876-47040-C1i202209

Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#

sub71876-47040

71910AHEADREST ASSY, FRONT SEAT

main71910-12N90-B1i201806-202405

COOL GRAY,TRIM1#

main71910-12N90-C1i201806-202405

BLACK/GRAY DOT,TRIM2#

main71910-12N91-B3i202405

COOL GRAY,TRIM1#

main71910-12N91-C3i202405

BLACK/GRAY,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-B0i201806-202209

W(LOCK),COOL GRAY,TRIM1#

main71930-47050-B0i201909-202006

W(LOCK),COOL GRAY,TRIM10

main71930-47050-C5i201806-202209

W(LOCK),BLACK,TRIM2#,3#,4#

main71930-47050-C5i201909-202006

W(LOCK),BLACK,TRIM10,2#,3#,4#

main71931-47030-B0i201806-202209

W/O(LOCK),COOL GRAY,TRIM1#

main71931-47030-B0i201909-202006

W/O(LOCK),COOL GRAY,TRIM10

main71931-47030-C4i201806-202209

W/O(LOCK),BLACK,TRIM2#,3#,4#

main71931-47030-C4i201909-202006

W/O(LOCK),BLACK,TRIM10,2#,3#,4#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-47370i201806-201905

sub72020-47371

main72020-47371i201906-202209

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-47060i201806-202209

72125MCOVER, SEAT TRACK, UPPER NO.3

main72125-47010i201806-202209

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-47060i201806-202209

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-47060i201806-202209

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-47080i201806-202209

72211HANDLE, SEAT TRACK ADJUSTING

main72211-12290i201806-202209

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-47050i201806-202209

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-47010i201806-202209

72443BGEAR, VERTICAL ADJUSTER, LH

main72443-47020i201806-201903

main72443-47021i201904-202209

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-12020-C0i202303

BLACK,TRIM1#,2#

main72495-47020-C1i201806-202303

BLACK,TRIM1#,2#

sub72495-47020

72498BCOVER, VERTICAL ADJUSTER BRACKET, OUTER

main72498-47020i201806-202209

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-33050-C0i201806-202209

BLACK,TRIM1#,2#

72552BCOVER, RECLINING HINGE, LH

main72551-33010-C0i201806-202209

BLACK,TRIM1#,2#,3#,4#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-12090i201806-202209

76854CRETAINER, FRONT SEAT CUSHION COVER

main76854-44010i202209

79977BFELT, SEATBACK FRAME

main79977-12090i201904-202209

Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH

main79977-12090i201904-202209

Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH

79977HFELT, FRONT SEATBACK, LH

8202

8401

8421

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

87510NHEATER ASSY, FRONT SEATBACK, LH

9011910601

main90119-10601

9014810007

main90148-10007

9098012373

main90980-12373

9356054012

main93560-54012

9418560600

main94185-60600

49 parts on this diagram · 5 diagrams in section
