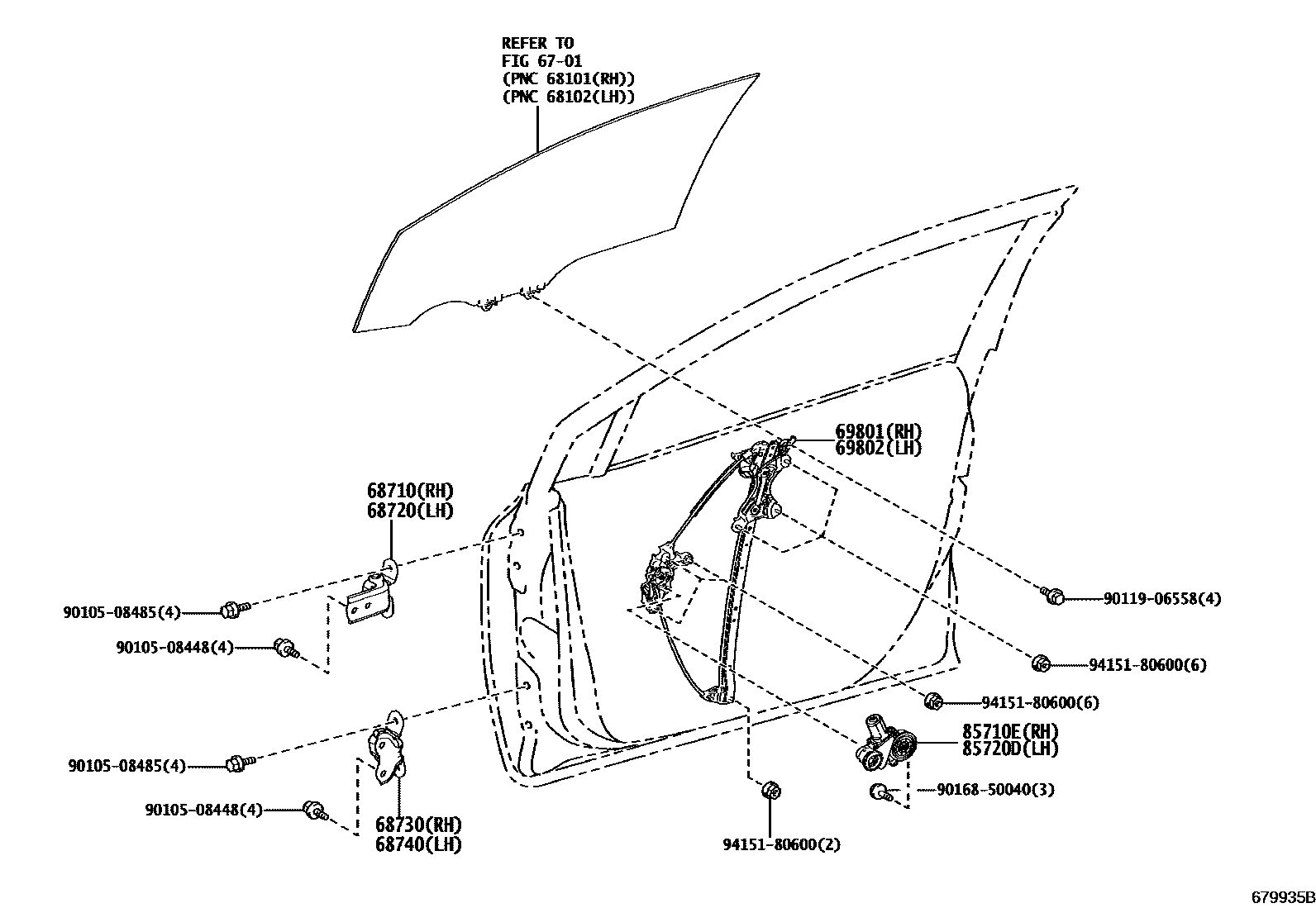

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iMZEA12..CVT201806-202209

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iMZEA12..CVT201806-202209

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iMZEA12..CVT201806-202209

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iMZEA12..CVT201806-202209

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12270iMZEA12201806-201812

sub69801-12271

main69801-12271iMZEA12201812-202002

sub69801-12272

main69801-12272iMZEA12202003-202104

sub69801-12273

main69801-12273iMZEA12..CVT202105-202209

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12270iMZEA12201806-201812

sub69802-12271

main69802-12271iMZEA12201812-202002

sub69802-12272

main69802-12272iMZEA12202003-202104

sub69802-12273

main69802-12273iMZEA12..CVT202105-202209

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12530iMZEA12..CVT201806-202209

main85710-12531iMZEA12202209-202305

main85710-12560iMZEA12202306

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12520iMZEA12..CVT201806-202209

main85720-12521iMZEA12202209-202305

main85720-12570iMZEA12202306

9010508448

main90105-08448

9010508485

main90105-08485

9011906558

main90119-06558

9016850040

main90168-50040

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
