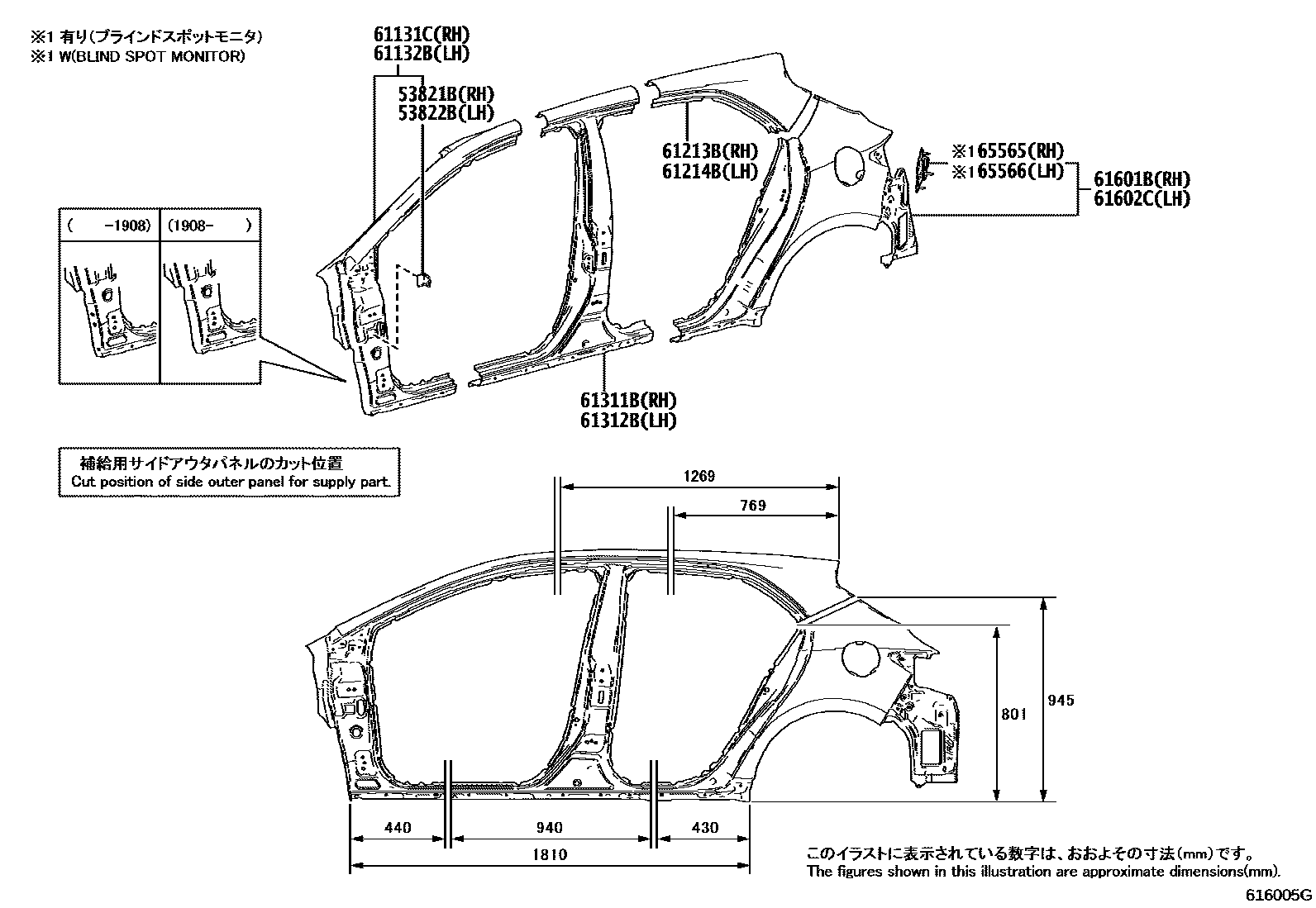

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53879-68020iMZEA12..CVT201806-202209

53822BBRACKET, FRONT FENDER, REAR LH

main53879-68020iMZEA12..CVT201806-202209

61131CPILLAR, FRONT BODY, OUTER RH

main61131-12820iMZEA12201806-201908

sub61131-12870

sub61131-12821

sub90333-30008

main61131-12870iMZEA12..CVT201908-202209

61132BPILLAR, FRONT BODY, OUTER LH

main61132-12800iMZEA12201806-201908

sub61132-12850

sub61132-12801

sub90333-30008

main61132-12850iMZEA12..CVT201908-202209

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-12110iMZEA12..CVT201806-202209

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-12110iMZEA12..CVT201806-202209

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12530iMZEA12..CVT201806-202209

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12570iMZEA12..CVT201806-202209

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-12C00iMZEA12201806-201908

sub61601-12C20

main61601-12C20iMZEA12..CVT201909-202209

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-12C00iMZEA12201806-201908

sub61602-12C20

main61602-12C20iMZEA12..CVT201909-202209

65565PATCH, SIDE PANEL REAR END, RH

main65565-50010

65566PATCH, SIDE PANEL REAR END, LH

main65565-50010

12 parts on this diagram · 3 diagrams in section
