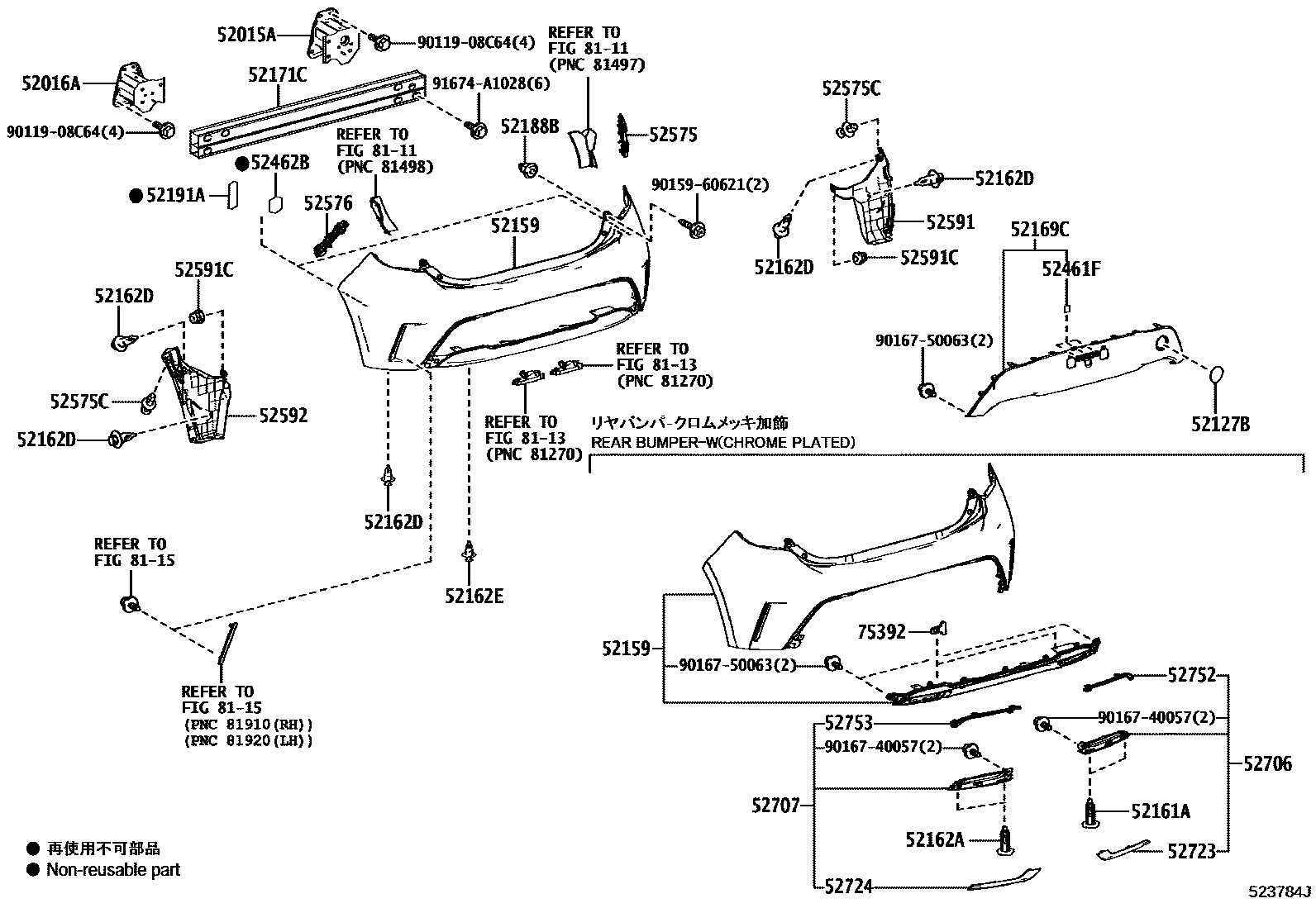

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52127BCOVER, REAR BUMPER HOLE, RH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)
PAINT REQ.
52161APIECE, REAR BUMPER, RH
sub52161-0K040
52162APIECE, REAR BUMPER, LH
sub52161-0K040
52162DPIECE, REAR BUMPER
sub52161-0K040
52162EPIECE, REAR BUMPER
sub52161-0K040
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.,Z PACKAGE
52171CREINFORCEMENT, REAR BUMPER
52188BSPACER, REAR BUMPER MOUNTING
52191ASEAL, REAR BUMPER ARM
52461FPAD, REAR BUMPER
52462BPAD, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52575CCLIP, REAR BUMPER SIDE RETAINER
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
52592SEAL, REAR BUMPER SIDE, LH
52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)
WITH(NIGHT SHADE)
52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)
WITH(NIGHT SHADE)
52723MOULDING, REAR BUMPER EXTENSION, RH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)
WITH(NIGHT SHADE)
52724MOULDING, REAR BUMPER EXTENSION, LH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)
WITH(NIGHT SHADE)
52752MOULDING, REAR BUMPER SIDE, RH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)
WITH(NIGHT SHADE)
52753MOULDING, REAR BUMPER SIDE, LH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)
WITH(NIGHT SHADE)
75392RETAINER, OUTSIDE MOULDING
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)
8111
8113
8115
9011908C64
main90119-08C64
9015960621
main90159-60621
9016740057
main90167-40057
9016750063
main90167-50063
91674A1028
main91674-A1028
35 parts on this diagram · 2 diagrams in section
