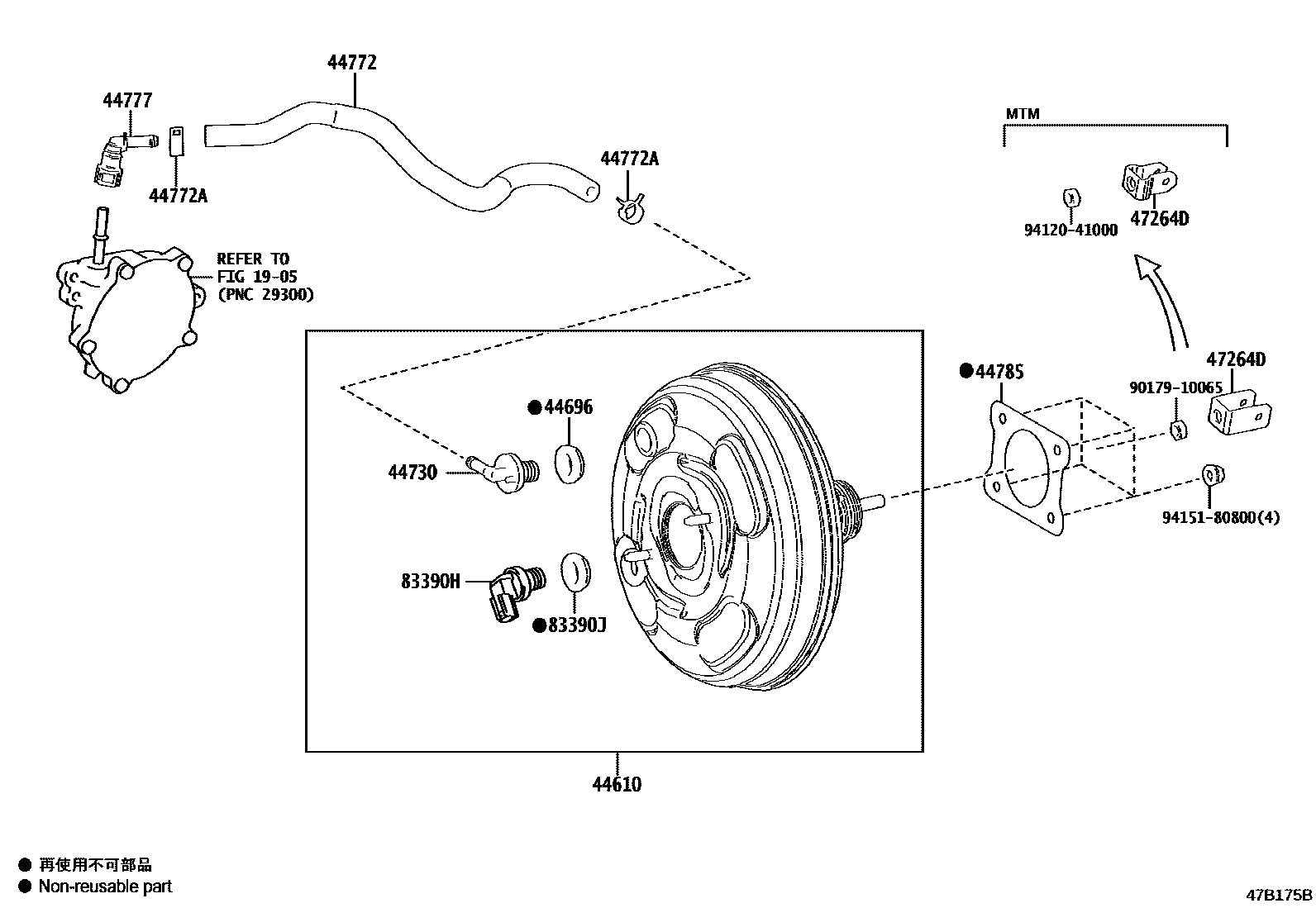

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-12M70iMZEA12..CVT201806-202209

44696GROMMET, CHECK VALVE

main90480-24439iMZEA12..CVT201806-202209

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMZEA12..CVT201806-202209

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12780iMZEA12..CVT201806-202209

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iMZEA12..CVT201806-202209

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMZEA12..CVT201806-202209

44785GASKET, BRAKE BOOSTER

main44785-12040iMZEA12..CVT201806-202209

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52060iMZEA12..CVT201806-202209

main47264-68010iMZEA12..6F201806

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMZEA12..CVT201806-202209

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iMZEA12..CVT201806-202209

9017910065

main90179-10065

9412041000

main94120-41000

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
