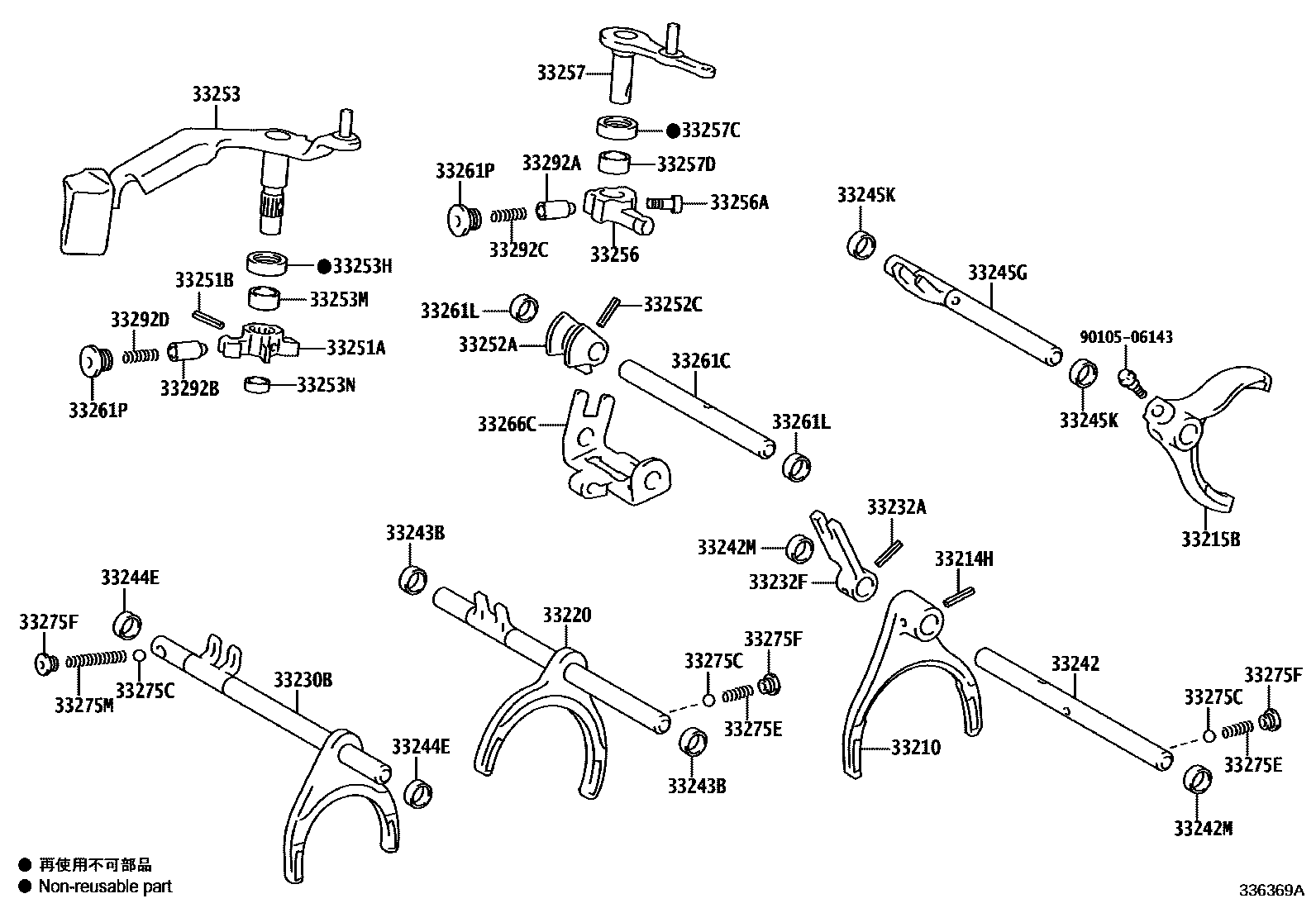

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33210FORK ASSY, GEAR SHIFT, NO.1
33214HPIN, SLOTTED(FOR SHIFT FORK)
33215BFORK, GEAR SHIFT, NO.4
33220FORK ASSY, GEAR SHIFT, NO.2
33230BFORK ASSY, GEAR SHIFT, NO.3
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33242SHAFT, GEAR SHIFT FORK, NO.1
33242MBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.1)
33243BBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.2)
33244EBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.3)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33245KBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.4)
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=28.0
33252ALEVER, SHIFT, INNER NO.2
33252CPIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2)
33253LEVER, SHIFT OUTER, NO.1
33253HSEAL, OIL(FOR SHIFT OUTER LEVER)
33253MBUSH, BIMETAL FORMED(FOR SHIFT OUTER LEVER, UPPER)
33253NBUSH, BIMETAL FORMED(FOR SHIFT OUTER LEVER, LOWER)
33256LEVER, SELECT INNER
33256ABOLT, SET (FOR SELECT INNER LEVER)
33257LEVER, SELECT OUTER
33257CSEAL, OIL(FOR OUTER SELECT LEVER)
33257DBUSH, BIMETAL FORMED(FOR OUTER SELECT LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
33261PPLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SHAFT)
33266CPLATE, SHIFT INTERLOCK
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33275MSPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33292APIN, LOCK BALL
33292BPIN, LOCK BALL NO.2
33292CSPRING, NO.1(FOR LOCK BALL PIN RETURN)
33292DSPRING, NO.2(FOR LOCK BALL PIN RETURN)
9010506143
main90105-06143
39 parts on this diagram · 1 diagram in section
