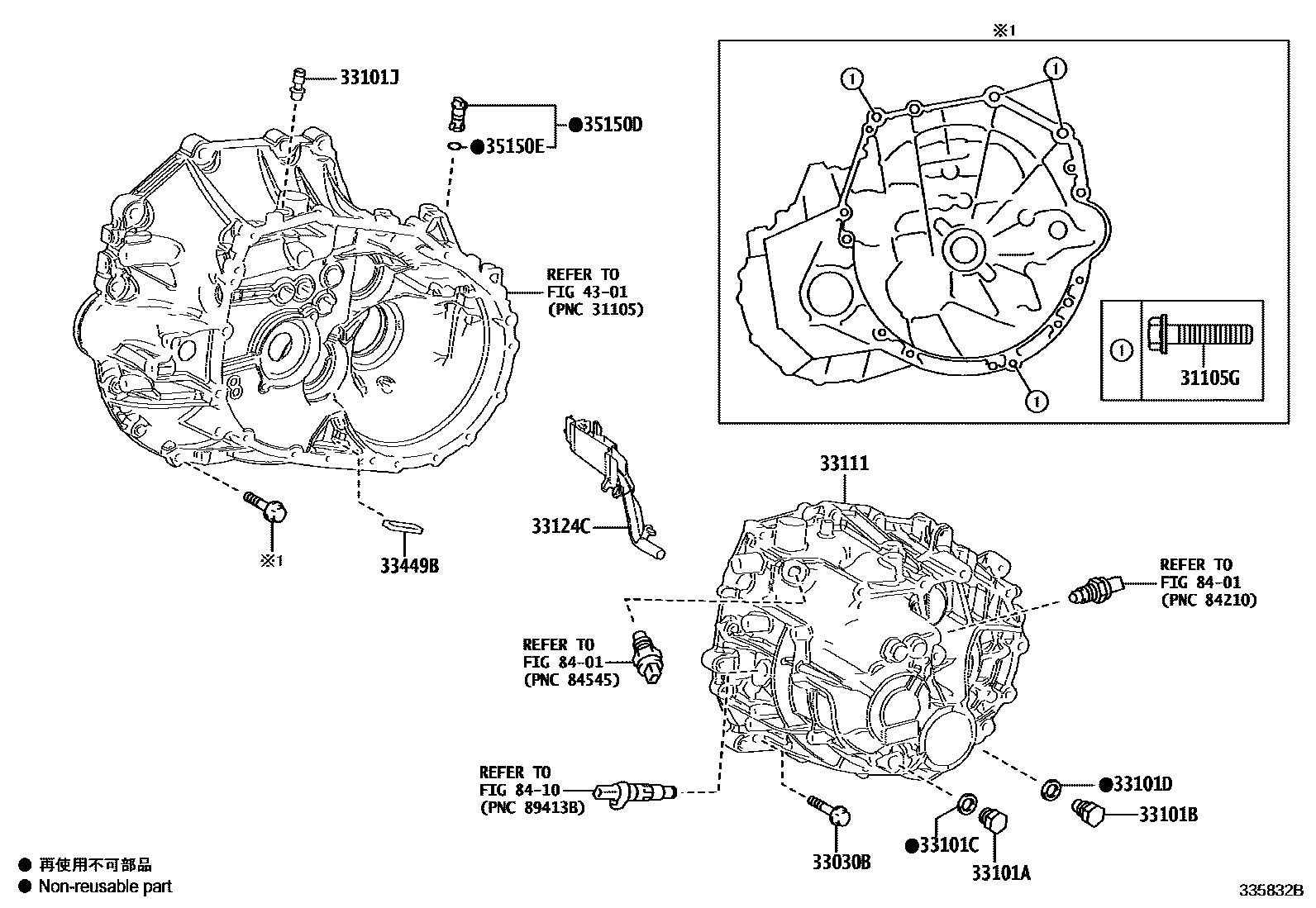

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10591iMZEA12..6F201806

*10-1.25PX45-36

main91552-81250iMZEA12..6F201806

*12-1.25PX50-30

main91553-80830iMZEA12..6F201806

*8-1.25PX35-22

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main91551-10840iMZEA12..6F201806

*8-1.25PX40-22

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iMZEA12..6F201806

33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)

main90341-18085iMZEA12..6F201806

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iMZEA12..6F201806

33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)

main90430-18008iMZEA12..6F201806

33101JPLUG, BREATHER

main90930-03085iMZEA12..6F201806

33111CASE, MANUAL TRANSMISSION

main33111-12350iMZEA12..6F201806

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12090iMZEA12..6F201806

33449BMAGNET, TRANSMISSION

main33449-60010iMZEA12..6F201806

35150DPLUG ASSY, TRANSMISSION CASE

main35150-44010iMZEA12..6F201806

35150ERING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMZEA12..6F201806

4301

8401

8410

15 parts on this diagram · 1 diagram in section
