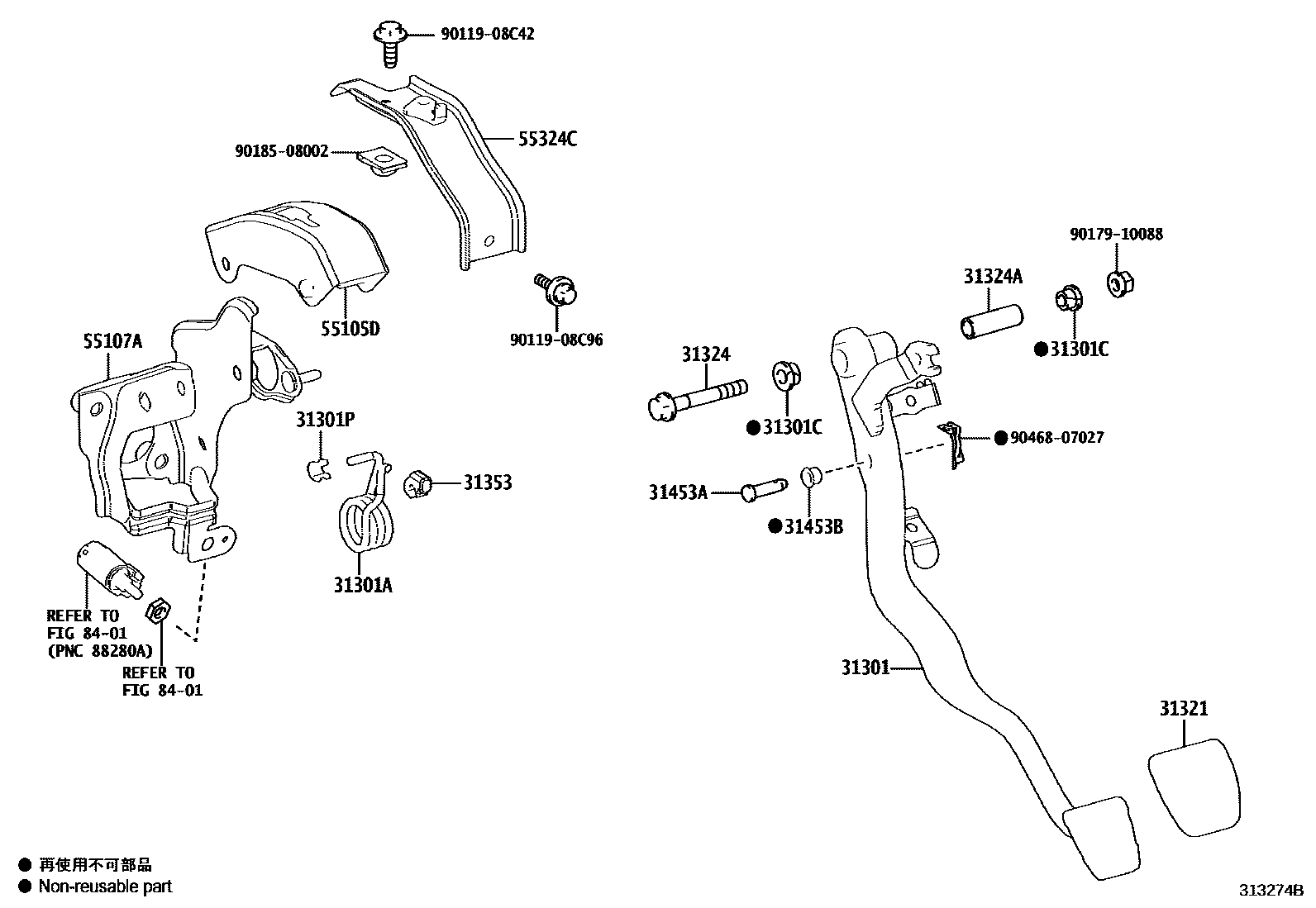

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02590iMZEA12..6F201806

31301ASPRING(FOR CLUTCH PEDAL)

main31394-02010iMZEA12..6F202104

main90949-03068iMZEA12..6F201806-202103

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iMZEA12..6F201806

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iMZEA12..6F201806

31321PAD, CLUTCH PEDAL

main31321-42010iMZEA12..6F201806

31324SHAFT, CLUTCH PEDAL

main90105-10524iMZEA12..6F201806

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iMZEA12..6F201806

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iMZEA12..6F201806

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08078iMZEA12..6F201806

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iMZEA12..6F201806

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-02090iMZEA12..6F201806

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02480iMZEA12..6F201806

55324CBRACKET, INSTRUMENT PANEL, NO.4

main55324-12260iMZEA12..6F201806

8401

9011908C42

main90119-08C42

9011908C96

main90119-08C96

9017910088

main90179-10088

9018508002

main90185-08002

9046807027

main90468-07027

19 parts on this diagram · 2 diagrams in section
