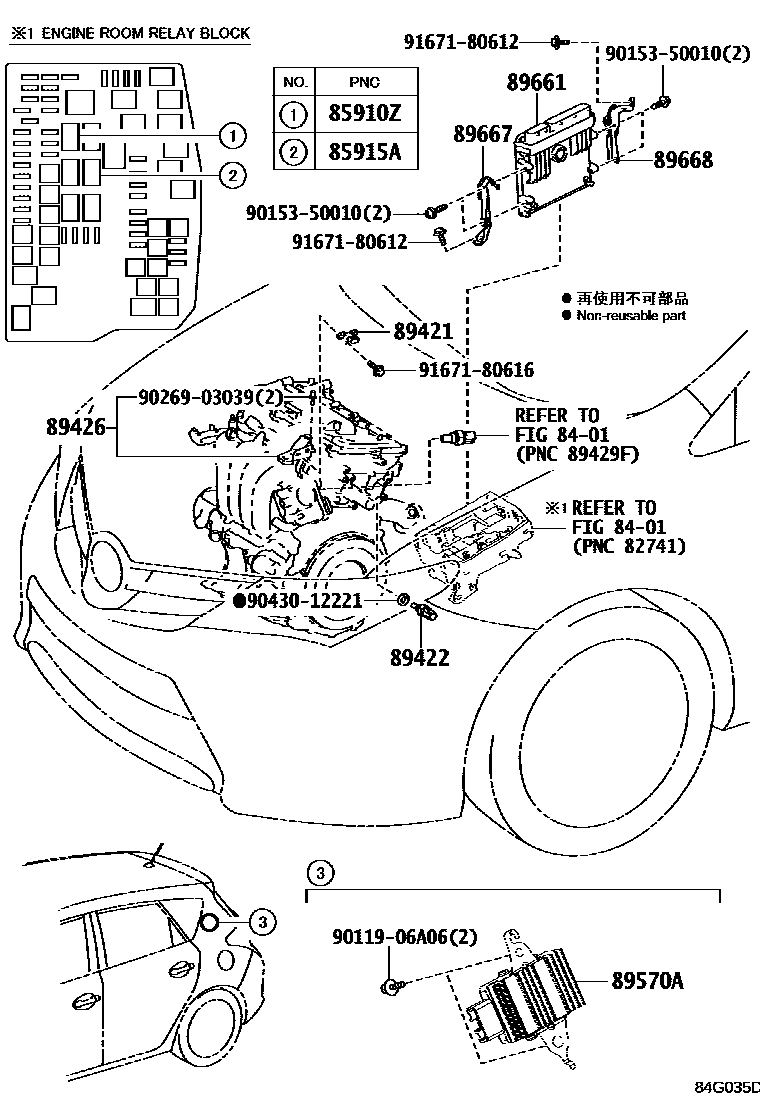

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iZRE186201506

85915ARELAY, MAIN

main90987-02027iZRE186201506

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE186201506-201805

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRE186201506

89426BRACKET, VACUUM SENSOR

main89426-13020iZRE186201506

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-12360iZRE186201506

89661COMPUTER, ENGINE CONTROL

main89661-0W170iZRE186..CVT201506-201608

sub89661-0W171

main89661-0W180iZRE186..6F201506-201608

main89661-0W190iZRE186..CVT201608-201704

sub89661-0W191

main89661-0W191iZRE186..CVT201705-201711

DELPHI

sub89661-0W192

main89661-0W192iZRE186..CVT201712

DELPHI

main89661-0W200iZRE186..6F201608-201706

sub89661-0W201

main89661-0W201iZRE186..6F201707

DELPHI

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12330iZRE186201506

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12260iZRE186201506

9011906A06

main90119-06A06

9015350010

main90153-50010

9026903039

main90269-03039

9043012221

main90430-12221

9167180612

main91671-80612

9167180616

main91671-80616

16 parts on this diagram · 1 diagram in section
