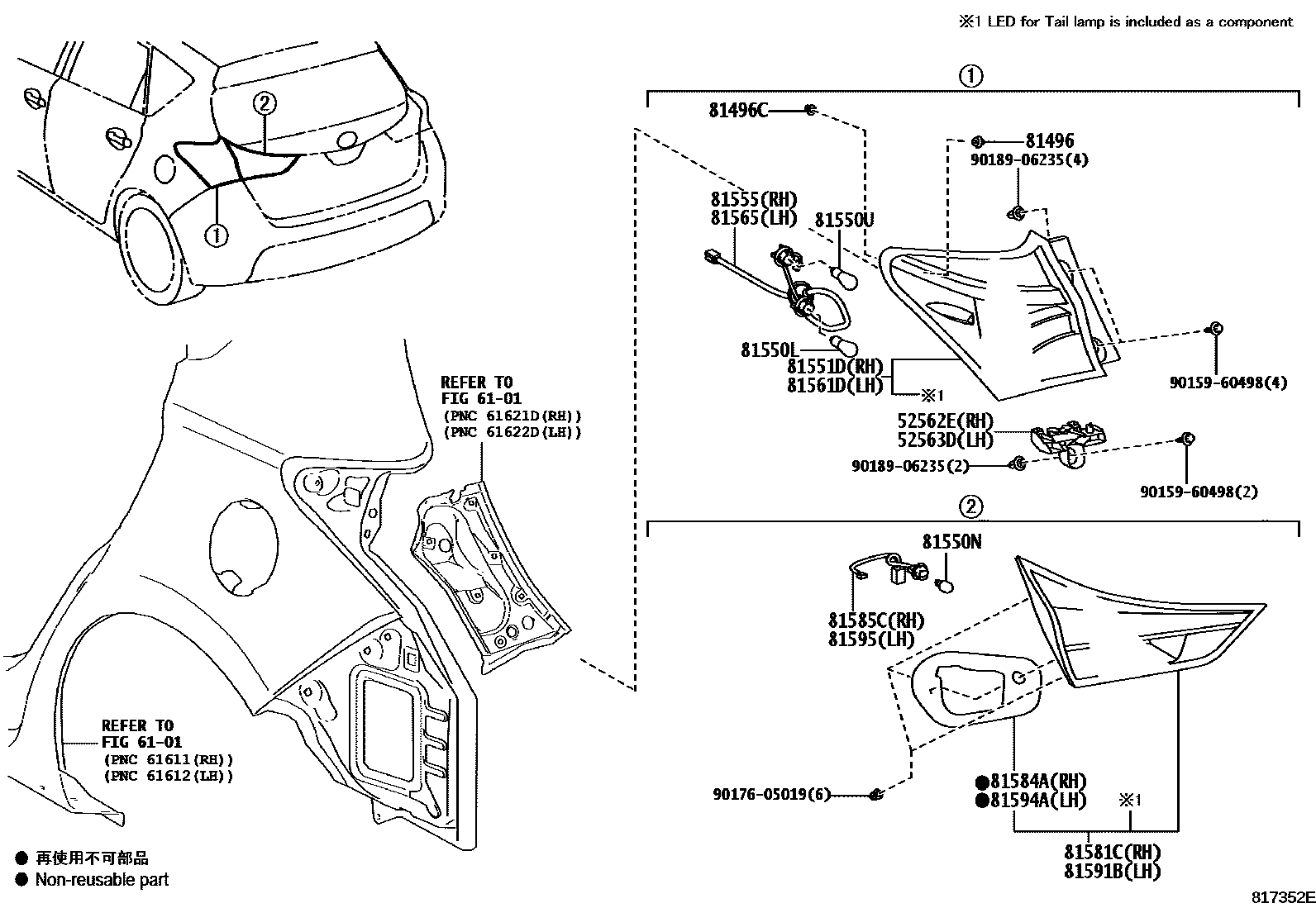

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-12140iZRE186201506

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-12100iZRE186201506

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iZRE186201506

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iZRE186201506

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043iZRE186201506

12V 21W

81550NBULB, BACK UP LAMP

main90981-11059iZRE186201506

12V 16W

81550UBULB, STOP LAMP

main90981-13043iZRE186201506

12V 21W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-12C50iZRE186201506-201508

sub81551-12C51

main81551-12C51iZRE186201508

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-12C50iZRE186201506

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-12C50iZRE186201506-201508

sub81561-12C51

main81561-12C51iZRE186201508

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-12C50iZRE186201506

81581CLENS AND BODY, REAR LAMP, RH

main81581-12230iZRE186201506

81584AGASKET, REAR LAMP RH

main81584-12190iZRE186201506

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-12230iZRE186201506

81591BLENS AND BODY, REAR LAMP, LH

main81591-12170iZRE186201506

81594AGASKET, REAR LAMP LH

main81594-12160iZRE186201506

81595SOCKET & WIRE, REAR LAMP, LH

main81595-12170iZRE186201506

9015960498

main90159-60498

9017605019

main90176-05019

9018906235

main90189-06235

21 parts on this diagram · 1 diagram in section
