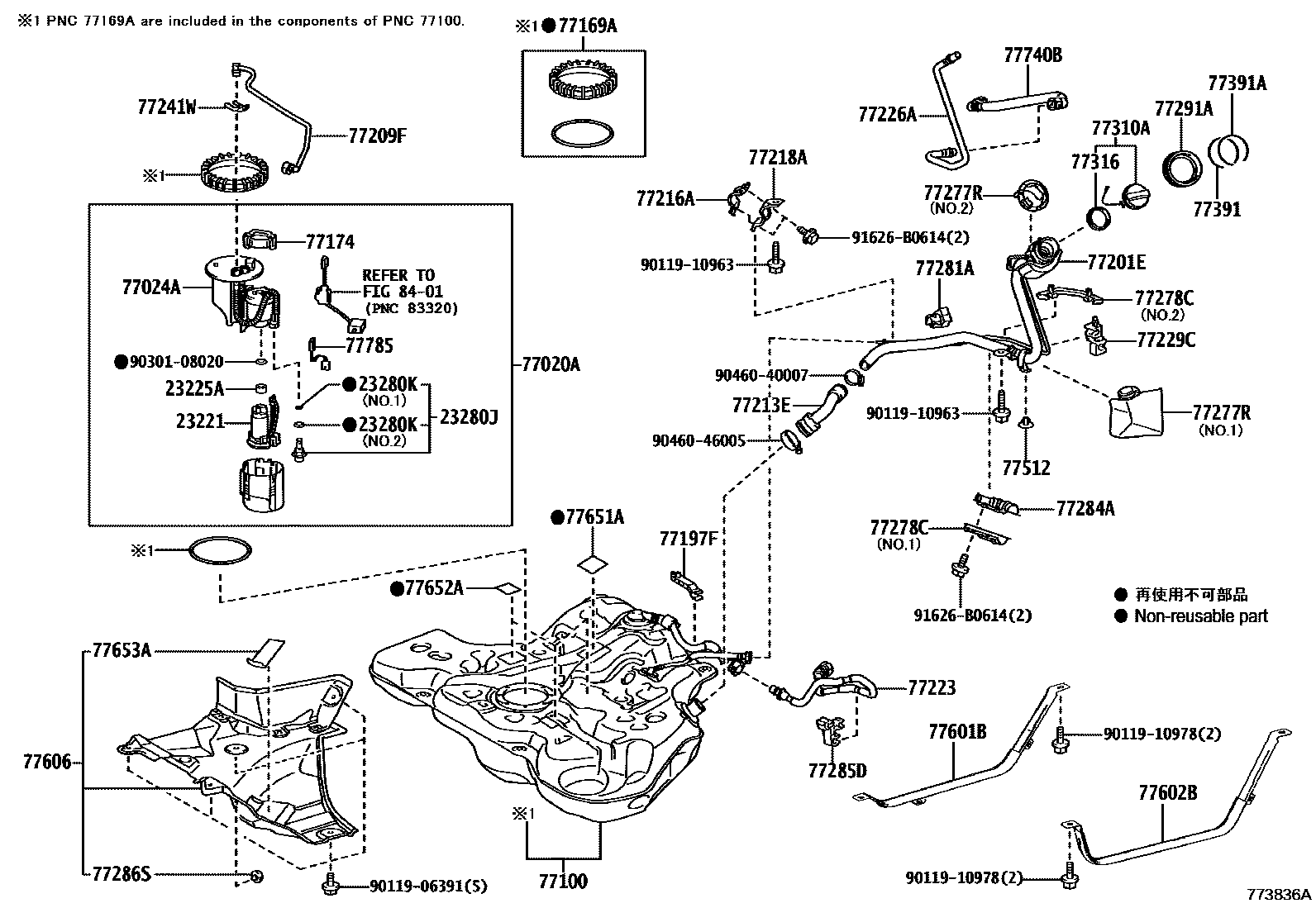

FUEL TANK & TUBE
23221PUMP, FUEL
sub23220-28440
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77197FCLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77223TUBE, FUEL TANK BREATHER, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77281ACLAMP, FUEL FILLER PIPE
77284APROTECTOR, FUEL TUBE, NO.3
77285DCLAMP, FUEL TUBE, NO.1
77286SCUSHION, FUEL TANK PROTECTOR
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512BRACKET, FUEL TANK, REAR
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77740CANISTER ASSY, CHARCOAL
77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
77785HARNESS, FUEL PUMP
8401
9011906391
main90119-06391
9011910963
main90119-10963
9011910978
main90119-10978
9030108020
main90301-08020
9046040007
main90460-40007
9046046005
main90460-46005
91626B0614
main91626-B0614
48 parts on this diagram · 3 diagrams in section
