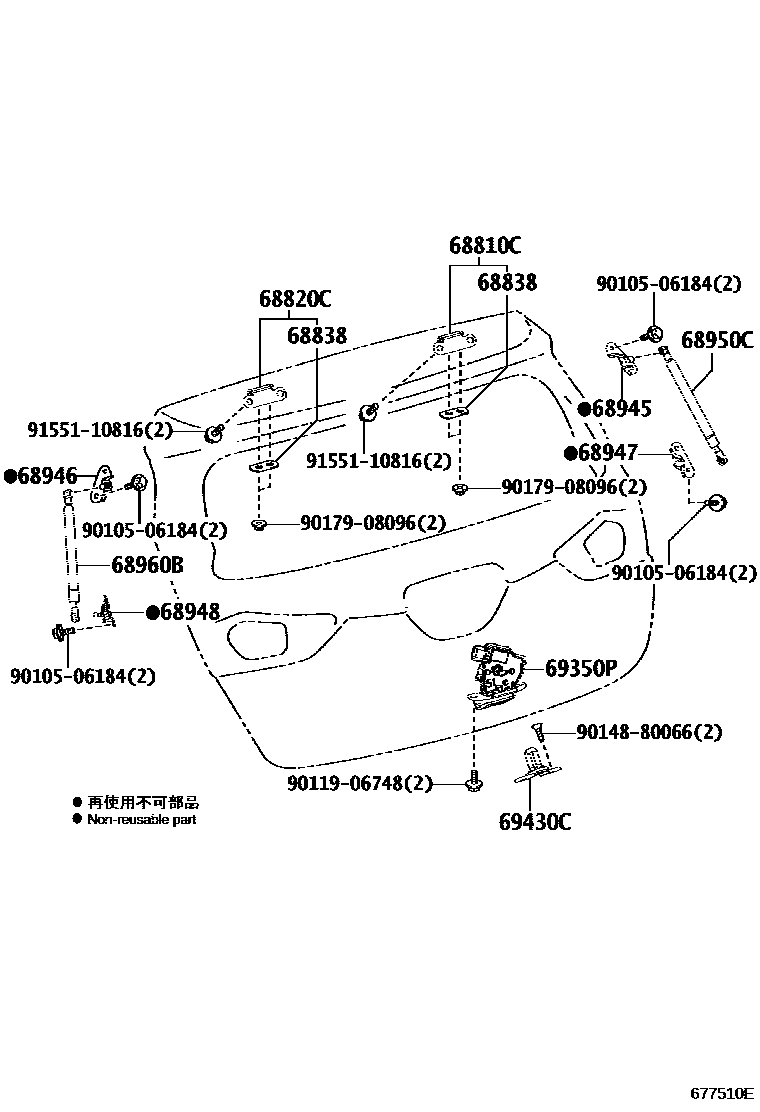

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iZRE186201506

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iZRE186201506

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010iZRE186201506

T=2.0

main68838-44020iZRE186201506

T=1.0

main68838-52020iZRE186201506

T=1.6

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-12050iZRE186201506

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-12020iZRE186201506

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-12050iZRE186201506

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-12050iZRE186201506

68950CSTAY ASSY, BACK DOOR, RH

main68950-12540iZRE186201506

68960BSTAY ASSY, BACK DOOR, LH

main68960-12370iZRE186201506

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52391iZRE186201506

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iZRE186201506

9010506184

main90105-06184

9011906748

main90119-06748

9014880066

main90148-80066

9017908096

main90179-08096

9155110816

main91551-10816

16 parts on this diagram · 1 diagram in section
