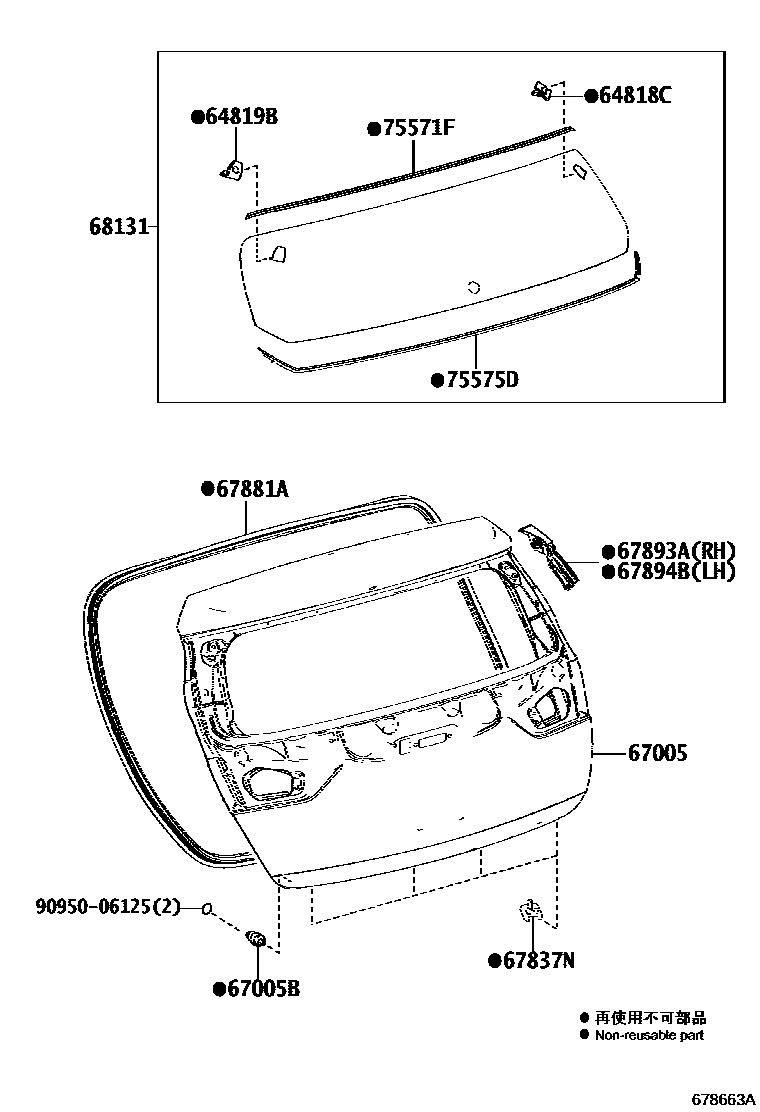

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-12070iZRE186201506

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-12050iZRE186201506

67005PANEL SUB-ASSY, BACK DOOR

main67005-12D00iZRE186..CND201506-201805

main67005-12D10iZRE186..USA201506-201805

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iZRE186201506

67837NSEAL, BACK DOOR DUST PROOF

main67837-12130iZRE186201506

67881AWEATHERSTRIP, BACK DOOR

main67881-12310iZRE186201506

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-12030iZRE186201506

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-12030iZRE186201506

68131GLASS, BACK DOOR

main68105-12450iZRE186201506

75571FMOULDIMG, BACK DOOR WINDOW

main75571-12A90iZRE186201506

75575DMOULDING, BACK WINDOW, LOWER

main75575-12470iZRE186201506

9095006125

main90950-06125

12 parts on this diagram · 2 diagrams in section
