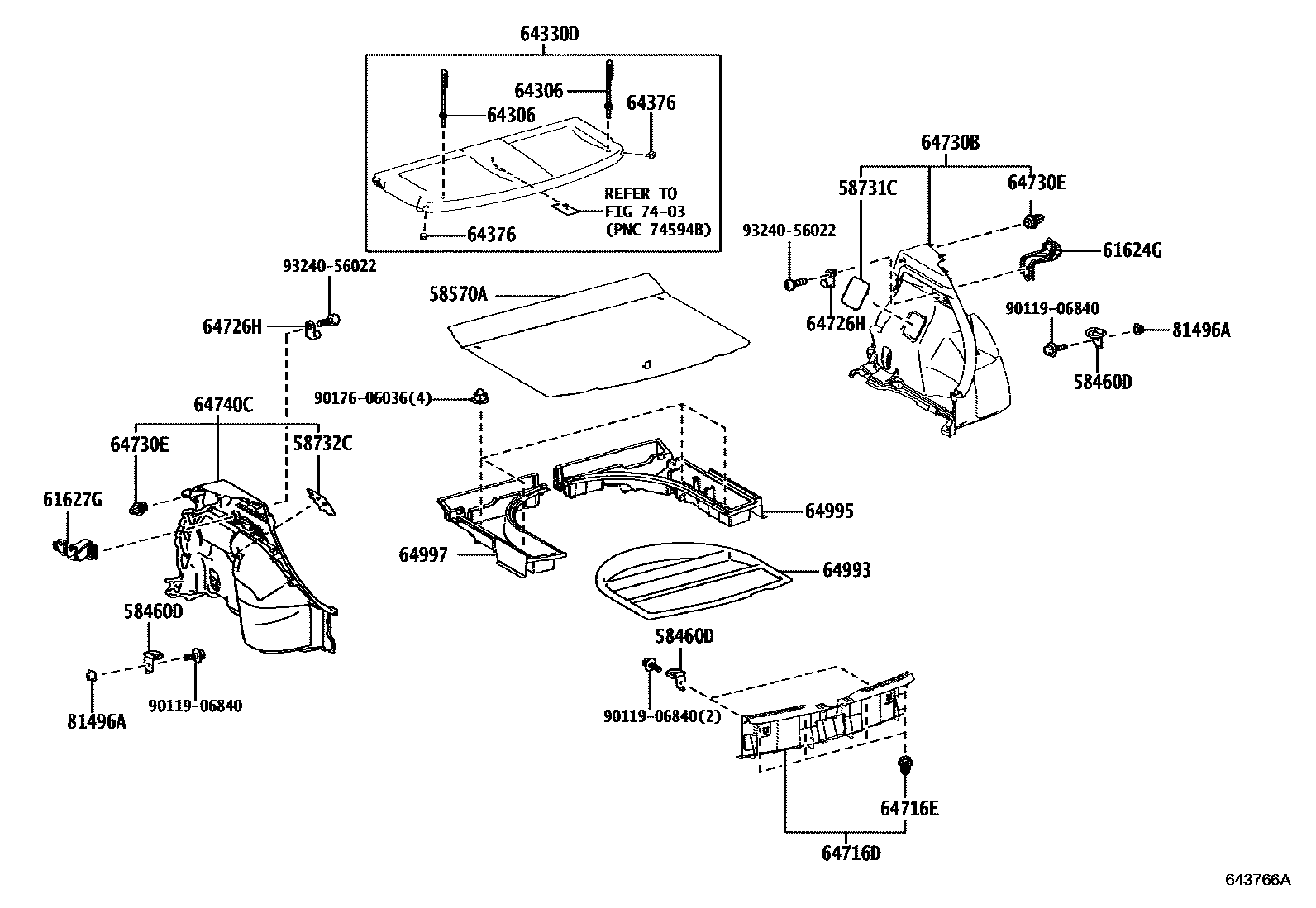

DECK BOARD & DECK TRIM COVER
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58570AMAT ASSY, REAR FLOOR
BLACK,TRIM2#
58731CCAP, REAR ABSORBER
DK.GRAY,TRIM2#
58732CCAP, REAR ABSORBER
DK.GRAY,TRIM2#
61624GBRACKET, DECK SIDE TRIM UPPER, RH
61627GBRACKET, DECK SIDE TRIM UPPER, LH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
64376SPACER, PACKAGE TRAY TRIM, NO.2
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM2#
64716ECLIP(FOR DECK TRIM REAR COVER)
64726HHOOK, DECK SIDE TRIM, NO.2
64730BPANEL ASSY, DECK TRIM SIDE, RH
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
64993BOX, DECK FLOOR, REAR
64995BOX, DECK FLOOR, RH
BLACK,TRIM2#
64997BOX, DECK FLOOR, LH
BLACK,TRIM2#
7403
81496AGUIDE, REAR COMBINATION LAMP
9011906840
main90119-06840
9017606036
main90176-06036
9324056022
main93240-56022
23 parts on this diagram · 1 diagram in section
