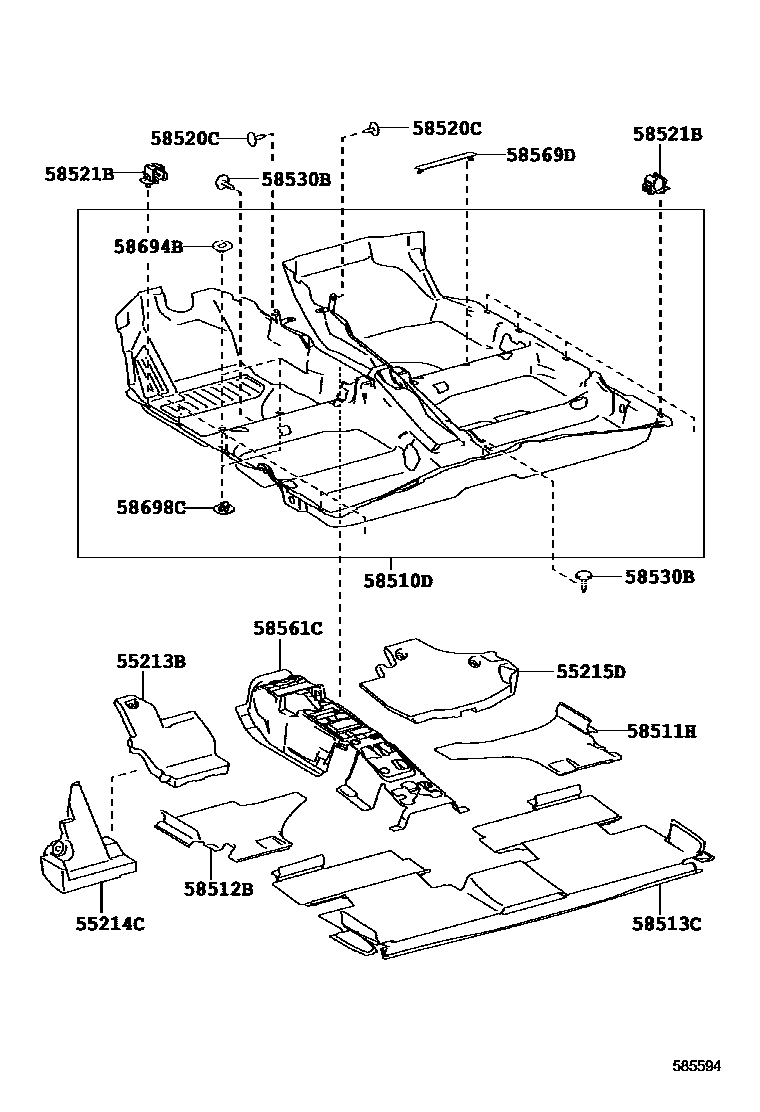

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#
58511HMAT, FLOOR, FRONT RH
58512BMAT, FLOOR, FRONT LH
58513CMAT, FLOOR, FRONT CENTER
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58561CSILENCER, FRONT FLOOR, NO.1
58569DCOVER, FRONT FLOOR CAUTION PLATE
DK.GRAY,TRIM2#
BLACK,TRIM2#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
14 parts on this diagram · 1 diagram in section
