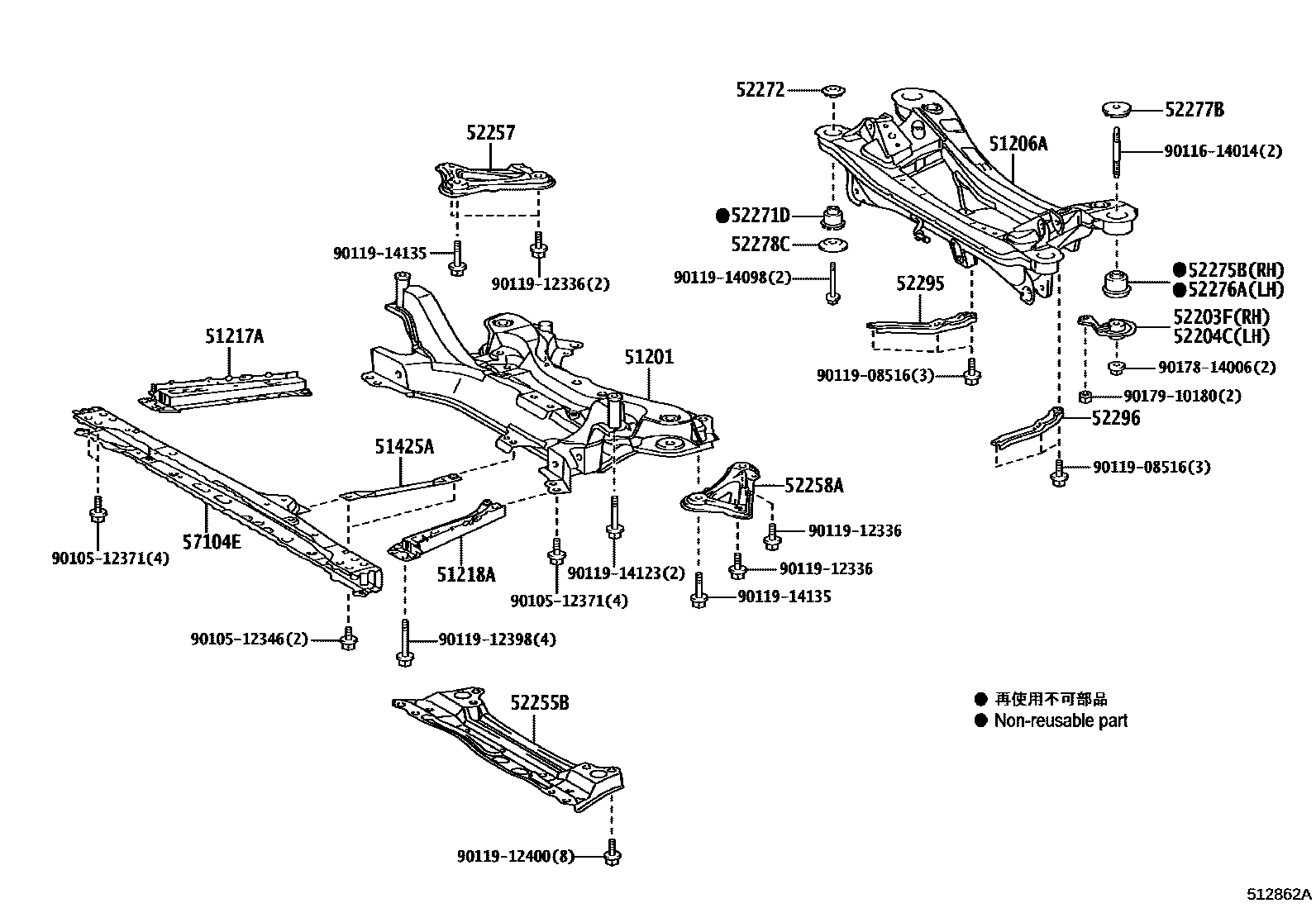

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12442i¥58,900201506

sub51201-78010¥58,700

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-75022i¥57,700201506

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-12010i¥4,540201506

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-12010i¥4,510201506

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-12060i¥1,720201506

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-12010i¥3,030201506

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52203-12010i¥3,030201506

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-76010i¥7,400201506

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-21040i¥2,590201506

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-21040i¥2,590201506

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-75010i¥2,570201506

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-75010i¥700201506

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-75010i¥3,210201506

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-75010i¥3,210201506

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-75010i¥1,120201506

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-75010i¥810201506

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12051i¥1,400201506

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-12051i¥1,400201506

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-47020i¥28,900201506

9010512346

main90105-12346¥120

9010512371

main90105-12371¥190

9011614014

main90116-14014¥470

9011908516

main90119-08516¥120

9011912336

main90119-12336¥210

9011912398

main90119-12398¥350

9011912400

main90119-12400¥180

9011914098

main90119-14098¥400

9011914123

main90119-14123¥470

9011914135

main90119-14135¥490

9017814006

main90178-14006¥160

9017910180

main90179-10180¥120

31 parts on this diagram · 2 diagrams in section
