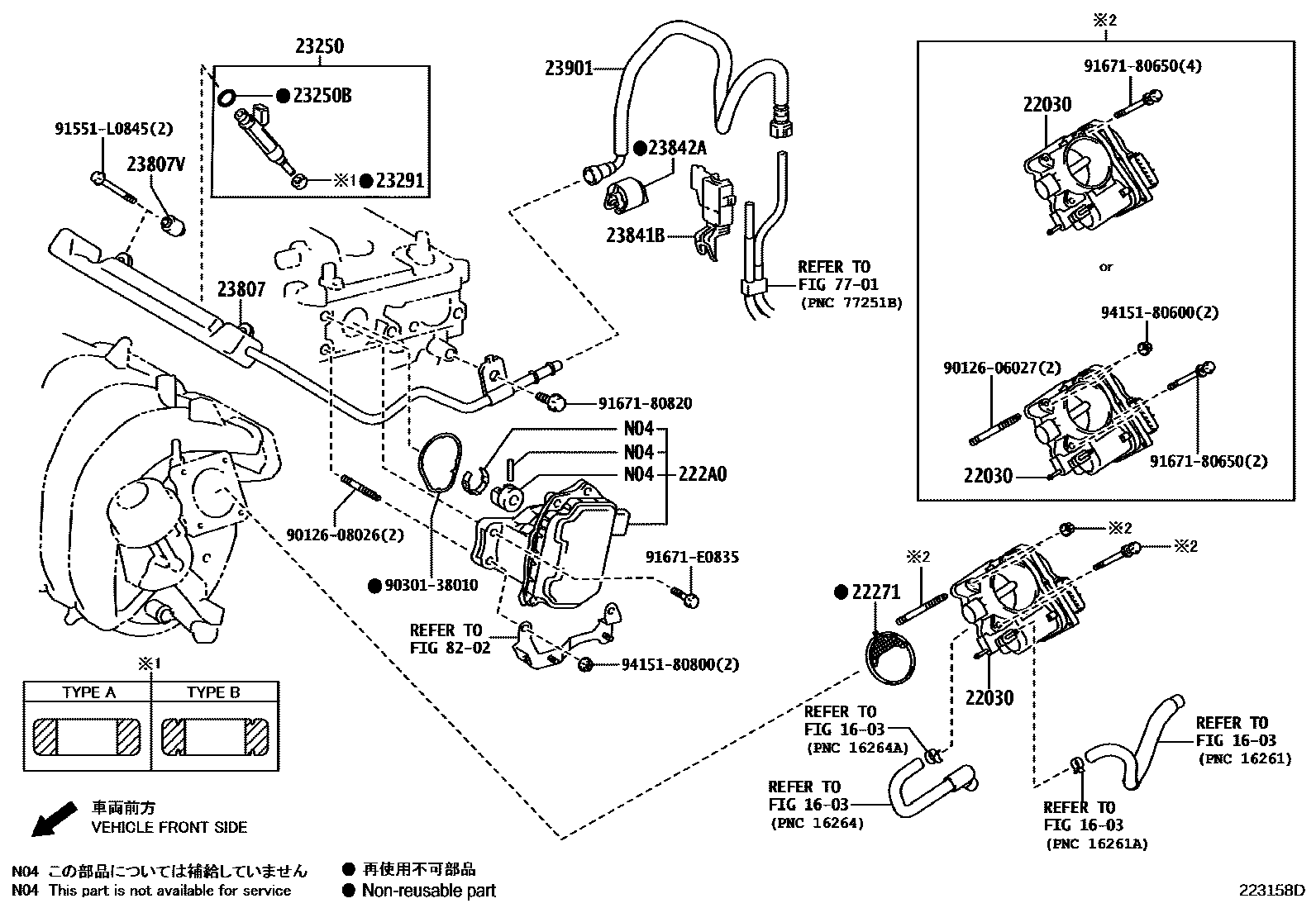

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-37050i2ZRFAE..ZRE186201506-201805

22271GASKET, THROTTLE BODY

main22271-75031i2ZRFAE..ZRE186201506

222A0CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT

main222A0-37021i2ZRFAE..ZRE186201506-201607

sub222A0-37022

main222A0-37022i2ZRFAE..ZRE186201608-201708

sub222A0-37023

main222A0-37023i2ZRFAE..ZRE186201709

sub222A0-37024

23250INJECTOR ASSY, FUEL

main23209-39235i2ZRFAE..ZRE186201506

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ZRFAE..ZRE186201506

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i2ZRFAE..ZRE186201506

TYPE A:REFER ILLUST.

main23291-28020i2ZRFAE..ZRE186201506

TYPE B:REFER ILLUST.

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37051i2ZRFAE..ZRE186201506

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010i2ZRFAE..ZRE186201506

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37090i2ZRFAE..ZRE186201506

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ZRFAE..ZRE186201506

23901TUBE SUB-ASSY, FUEL

main23901-37280i2ZRFAE..ZRE186201506

7701

8202

9012606027

main90126-06027

9012608026

main90126-08026

9030138010

main90301-38010

91551L0845

main91551-L0845

9167180650

main91671-80650

9167180820

main91671-80820

91671E0835

main91671-E0835

9415180600

main94151-80600

9415180800

main94151-80800

23 parts on this diagram · 1 diagram in section
