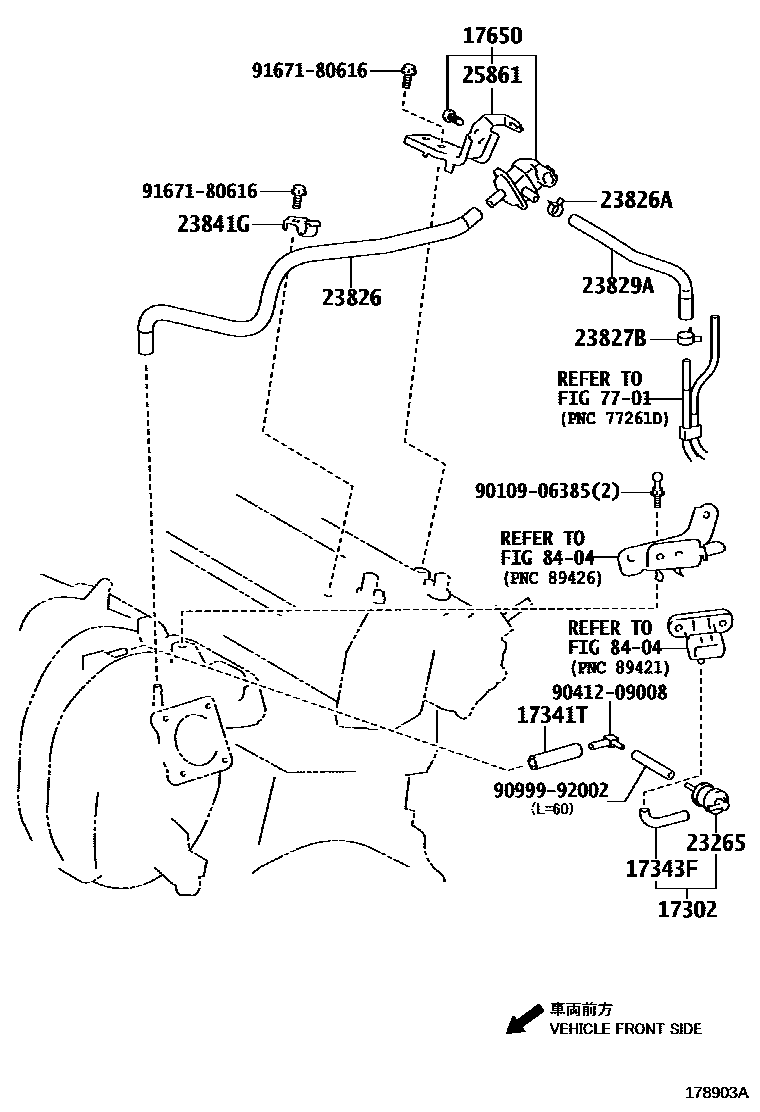

VACUUM PIPING

17302HOSE SUB-ASSY, AIR

main17302-37010i2ZRFAE..ZRE186201506

17341THOSE, AIR, NO.1

main17341-37070i2ZRFAE..ZRE186201506

17343FHOSE, AIR, NO.3

main17343-37050i2ZRFAE..ZRE186201506

17650VALVE ASSY, VACUUM SWITCHING

main25860-37060i2ZRFAE..ZRE186201506

23265FILTER, GAS, NO.1

main90917-11038i2ZRFAE..ZRE186201506

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-37280i2ZRFAE..ZRE186201506

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96136-41901i2ZRFAE..ZRE186201506

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-19021i2ZRFAE..ZRE186201506

23829AHOSE, FUEL VAPOR FEED

main23826-37260i2ZRFAE..ZRE186201506

23841GCLAMP, FUEL HOSE

main23841-0T060i2ZRFAE..ZRE186201506-201805

25861BRACKET, VACUUM SWITCHING VALVE

main25861-37050i2ZRFAE..ZRE186201506

7701

8404

9010906385

main90109-06385

9041209008

main90412-09008

9099992002

main90999-92002

9167180616

main91671-80616

17 parts on this diagram · 1 diagram in section
