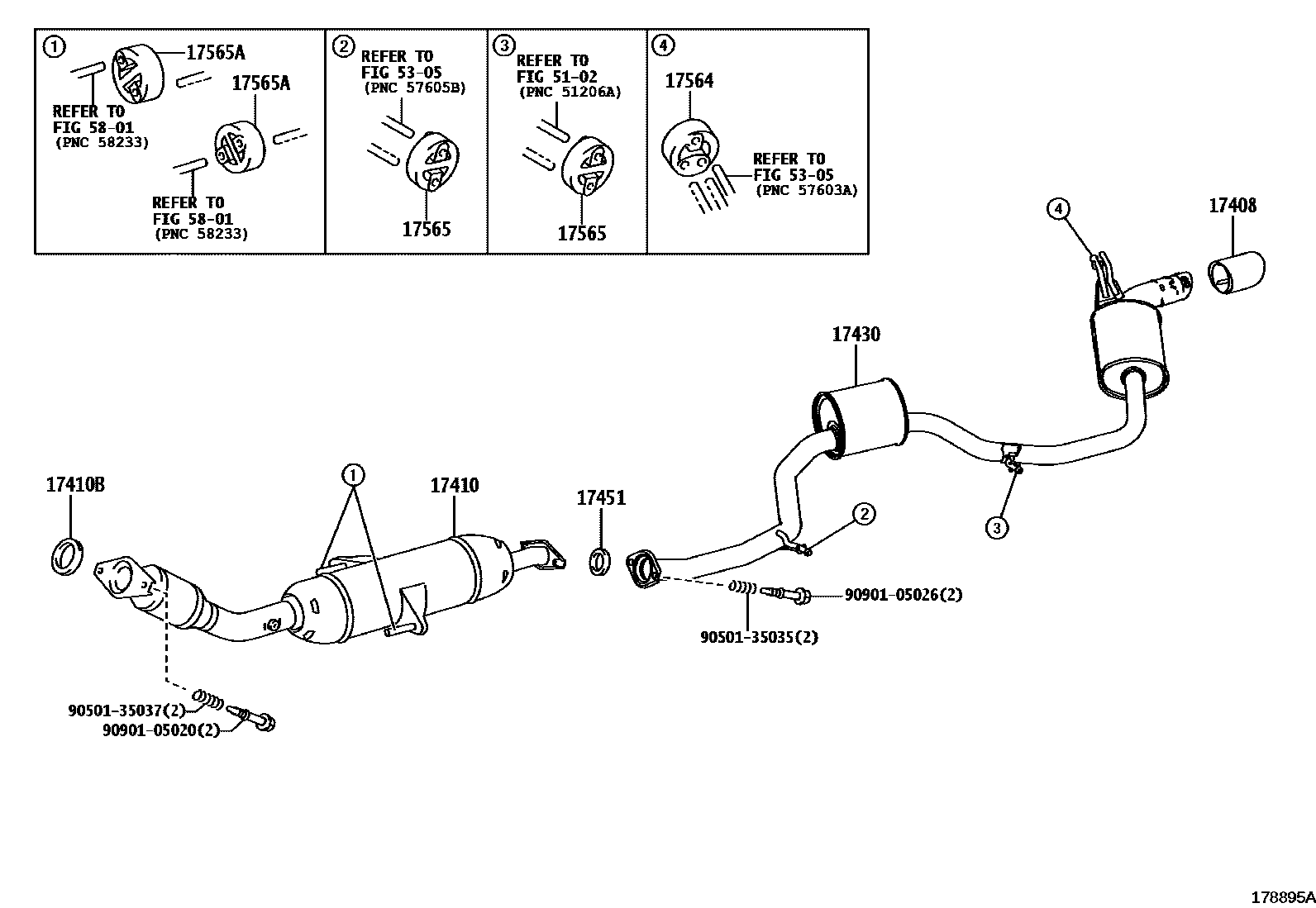

EXHAUST PIPE

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-37020i2ZRFAE..ZRE186201506

17410PIPE ASSY, EXHAUST, FRONT

main17410-37A50i2ZRFAE..ZRE186201506

17410BGASKET, EXHAUST PIPE

main17451-28040i2ZRFAE..ZRE186201506

sub17451-28041

17430PIPE ASSY, EXHAUST, TAIL

main17430-37660i2ZRFAE..ZRE186201506-201608

sub17430-37661

main17430-37661i2ZRFAE..ZRE186201609

17451GASKET, EXHAUST PIPE

main17451-28032i2ZRFAE..ZRE186201506

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-64180i2ZRFAE..ZRE186201506

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i2ZRFAE..ZRE186201506

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i2ZRFAE..ZRE186201506

5102

5305

5801

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

15 parts on this diagram · 1 diagram in section
