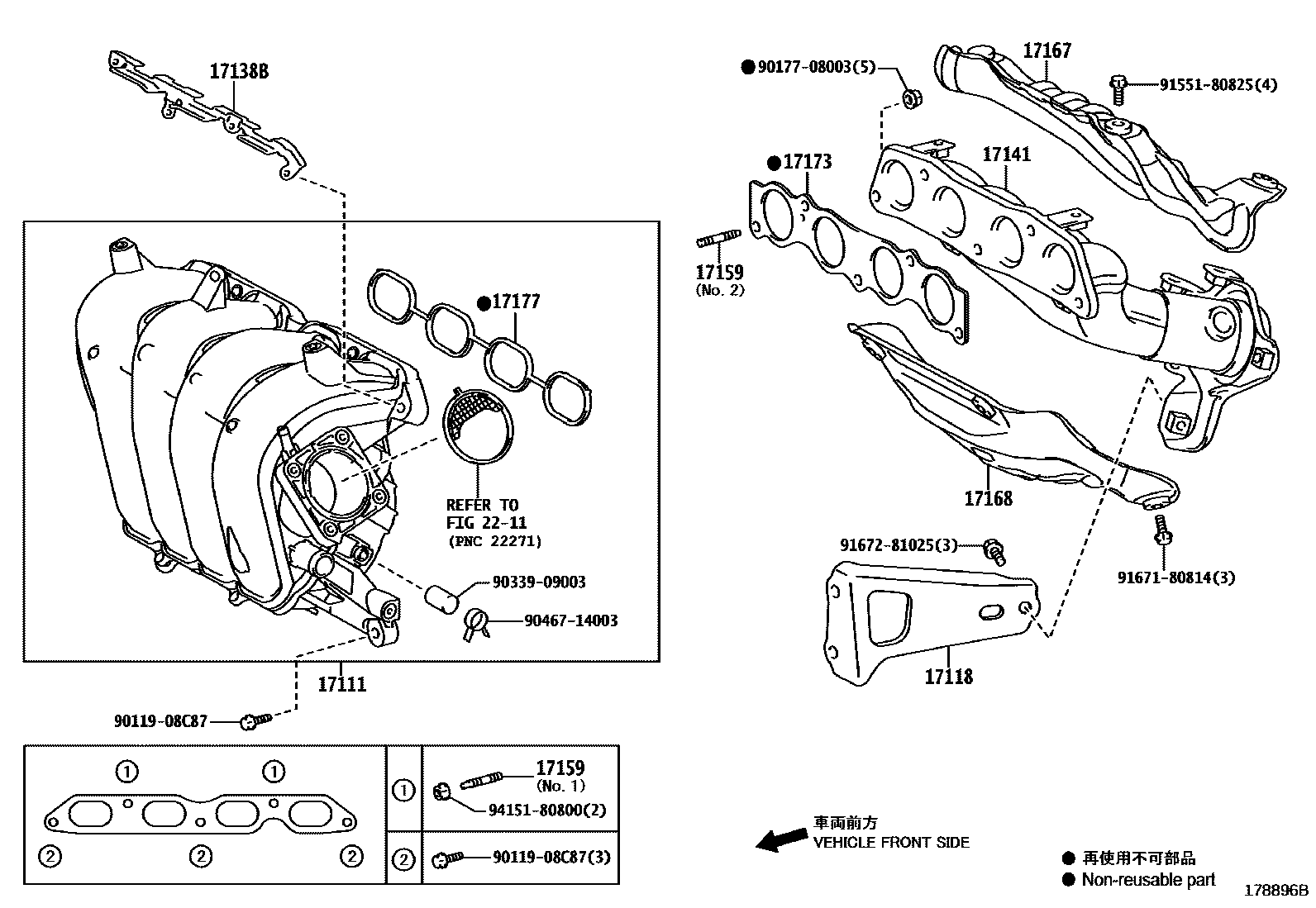

MANIFOLD

17111MANIFOLD, INTAKE

main17120-37031i2ZRFAE..ZRE186201506

17118STAY, MANIFOLD

main17118-37010i2ZRFAE..ZRE186201506

17138BSTAY, INTAKE MANIFOLD

main17138-37011i2ZRFAE..ZRE186201506

17141MANIFOLD, EXHAUST

main17141-37130i2ZRFAE..ZRE186201506

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026i2ZRFAE..ZRE186201506

NO.1

main90126-08052i2ZRFAE..ZRE186201506

NO.2

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-37110i2ZRFAE..ZRE186201506

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-37100i2ZRFAE..ZRE186201506

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-37010i2ZRFAE..ZRE186201506

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-37030i2ZRFAE..ZRE186201506

2211

9011908C87

main90119-08C87

9017708003

main90177-08003

9033909003

main90339-09003

9046714003

main90467-14003

9155180825

main91551-80825

9167180814

main91671-80814

9167281025

main91672-81025

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
