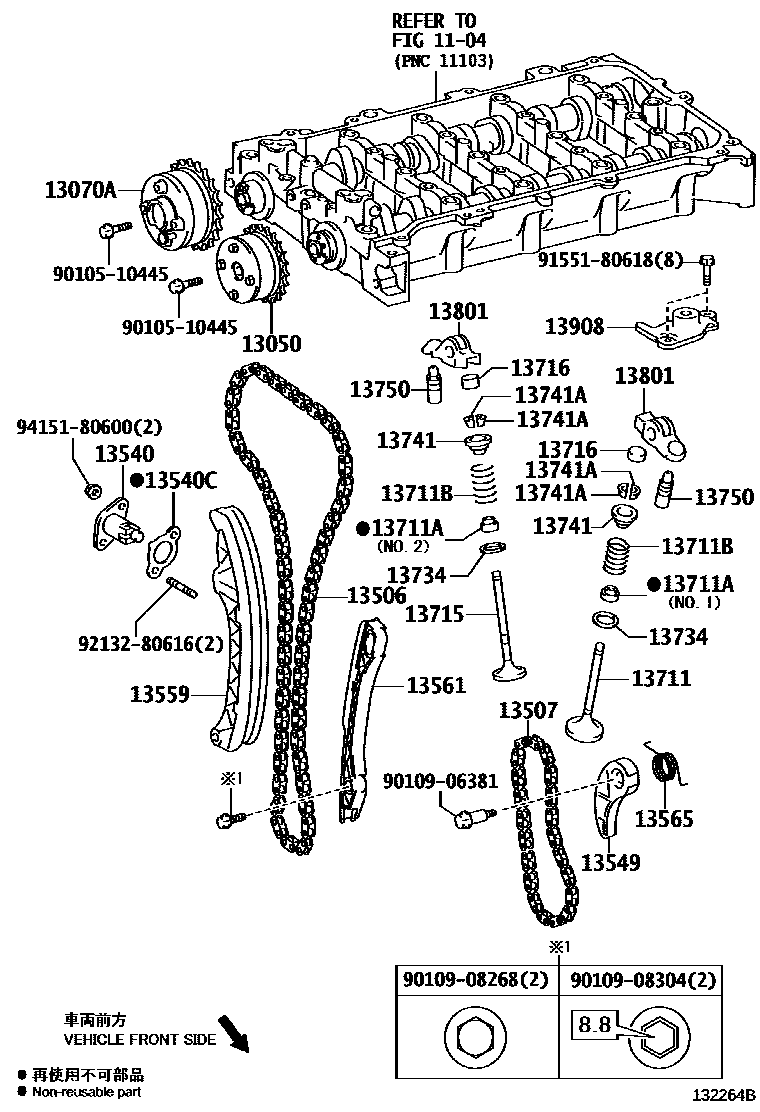

CAMSHAFT & VALVE

1104

13050GEAR ASSY, CAMSHAFT TIMING

main13050-37050i2ZRFAE..ZRE186201506

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-37020i2ZRFAE..ZRE186201506

13506CHAIN SUB-ASSY

main13506-37050i2ZRFAE..ZRE186201506

13507CHAIN SUB-ASSY, NO.2

main13507-28010i2ZRFAE..ZRE186201506

13540TENSIONER ASSY, CHAIN, NO.1

main13540-37030i2ZRFAE..ZRE186201506

13540CGASKET(FOR CHAIN TENSIONER)

main13552-37010i2ZRFAE..ZRE186201506

13549PLATE, CHAIN TENSIONER

main13549-37020i2ZRFAE..ZRE186201506

13559SLIPPER, CHAIN TENSIONER

main13559-37050i2ZRFAE..ZRE186201506

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-37040i2ZRFAE..ZRE186201506-201807

sub13561-37060

13565SPRING, CHAIN DAMPER

main13565-37010i2ZRFAE..ZRE186201506

13711VALVE, INTAKE

main13711-37020i2ZRFAE..ZRE186201506

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02101i2ZRFAE..ZRE186201506

NO.1

main90913-02112i2ZRFAE..ZRE186201506

NO.2

13711BSPRING, COMPRESSION(FOR INNER)

main90501-32072i2ZRFAE..ZRE186201506

L=51.88

13715VALVE, EXHAUST

main13715-37030i2ZRFAE..ZRE186201506

13716CAP, VALVE STEM

main13716-75020i2ZRFAE..ZRE186201506

13734SEAT, VALVE SPRING

main13734-62020i2ZRFAE..ZRE186201506

13741RETAINER, VALVE SPRING

main13741-36010i2ZRFAE..ZRE186201506

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i2ZRFAE..ZRE186201506

13750ADJUSTER ASSY, VALVE LASH

main13750-21010i2ZRFAE..ZRE186201506

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-36020i2ZRFAE..ZRE186201506

13908DAMPER SUB-ASSY, VALVE ROCKER ARM LOST MOTION

main13908-37012i2ZRFAE..ZRE186201506

9010510445

main90105-10445

9010906381

main90109-06381

9010908268

main90109-08268

9010908304

main90109-08304

9155180618

main91551-80618

9213280616

main92132-80616

9415180600

main94151-80600

29 parts on this diagram · 1 diagram in section
