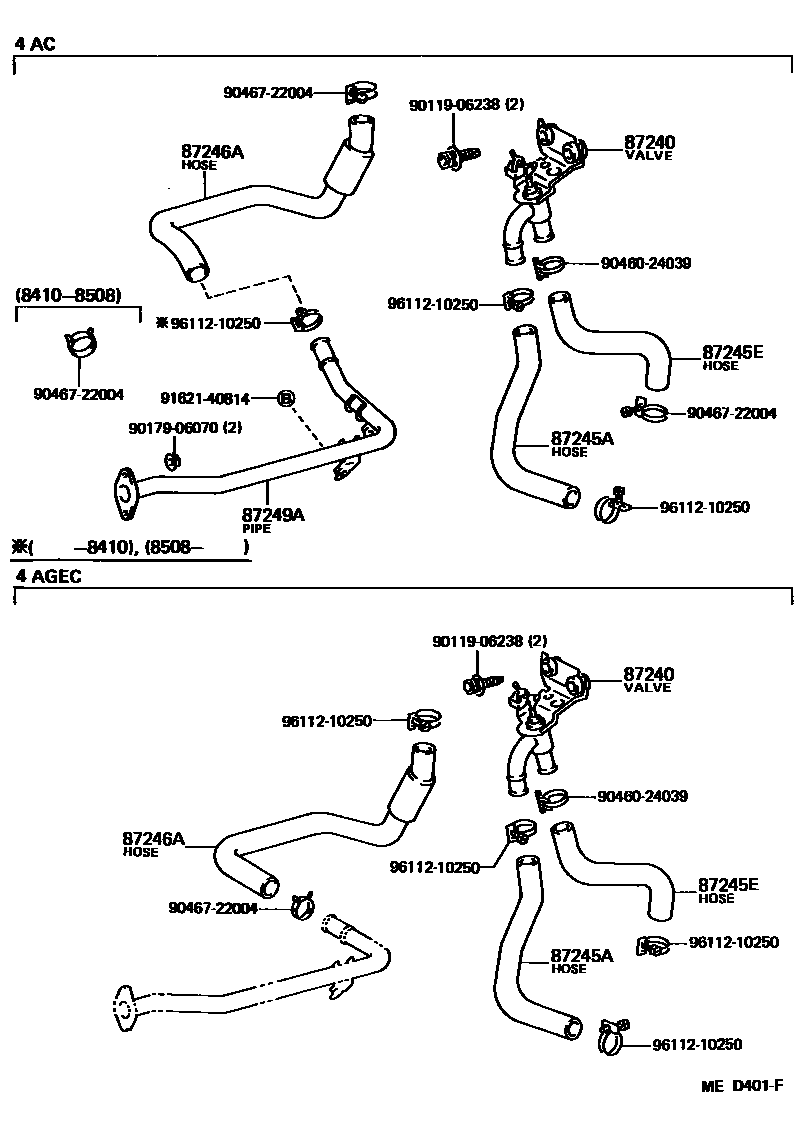

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87240VALVE ASSY, HEATER WATER

main87240-12210iAE86198308-198707

87245AHOSE, HEATER WATER, INLET A

main87245-12800iAE86198308-198707

87245EHOSE, HEATER WATER, INLET E

main87245-12780iAE86198308-198707

87246AHOSE, HEATER WATER, OUTLET A

main87245-12830iAE86..DX,SR5198308-198409

sub87245-1A150

main87245-1A050iAE86..(DX,SR5)..USA198308-198707

W/O HEATER

main87245-1A150iAE86..GTS198408-198707

87249APIPE, HEATER WATER OUTLET, A

main87208-12020iAE86..DX,SR5198308-198707

9011906238

main90119-06238

9017906070

main90179-06070

9046024039

main90460-24039

9046722004

main90467-22004

9162140814

main91621-40814

9611210250

main96112-10250

11 parts on this diagram · 2 diagrams in section
