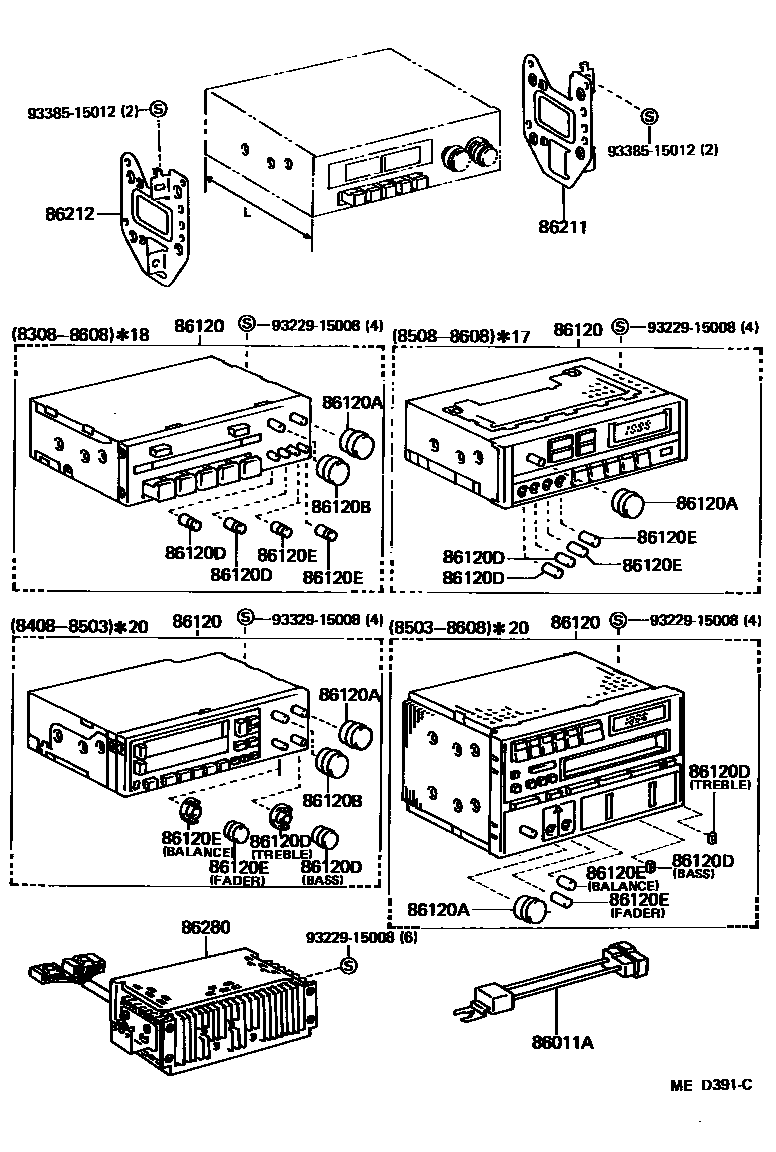

RADIO RECEIVER & AMPLIFIER & CONDENSER
86011ACONDENSER, RADIO SETTING
IGNITION COIL
86120RECEIVER ASSY, RADIO
*35
*20
*20
*20
*19
*18
AM MPX/FM MPX,W/2-SPEAKERS
AM MPX/FM MPX,W/4-SPEAKERS
AM MPX/FM MPX,CASSETTE,W/4-SP.
*18
*35
AM/FM MPX,W/4-SPEAKERS
86120AKNOB, RADIO RECEIVER SWITCH
*35
*18
AM
AM OR *19
AM
*19
*20
*18
*17
AM MPX/FM MPX,W/4-SPEAKERS
AM MPX/FM MPX,CASSETTE,W/4-SP.
AM MPX/FM MPX,W/2-SPEAKERS
*35
AM/FM MPX,W/4-SPEAKERS
86120BKNOB, RADIO RECEIVER TUNING, NO.1
*35
*20
*18
AM OR *19
AM
AM
*19
*18
*35
AM/FM MPX,W/4-SPEAKERS
86120DKNOB, RADIO RECEIVER TONE
AM OR *19
AM
*35,BASS
*20,BASS
*20,TREBLE
*35,TREBLE
*19
AM
*20
*18
*17
AM MPX/FM MPX,W/4-SPEAKERS
AM MPX/FM MPX,CASSETTE,W/4-SP.
AM MPX/FM APX,W/2-SPEAKERS
*35,BASS
*35,TREBLE
AM/FM MPX,W/4-SPEAKERS
86120EKNOB, RADIO RECEIVER BALANCE
*35,FADER
*19
*20,FADER
*20,BALANCE
*19
*20
*18
*17
AM MPX/FM MPX,W/4-SPEAKERS
AM MPX/FM MPX,CASSETTE,W/4-SP.
AM MPX/FM APX,W/2-SPEAKERS
*35,BALANCE
*35,FADER
AM/FM MPX,W/4-SPEAKERS
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86280AMPLIFIER ASSY, STEREO COMPONENT
9322915008
main93229-15008
9332915008
main93329-15008
9338515012
main93385-15012
12 parts on this diagram · 3 diagrams in section
