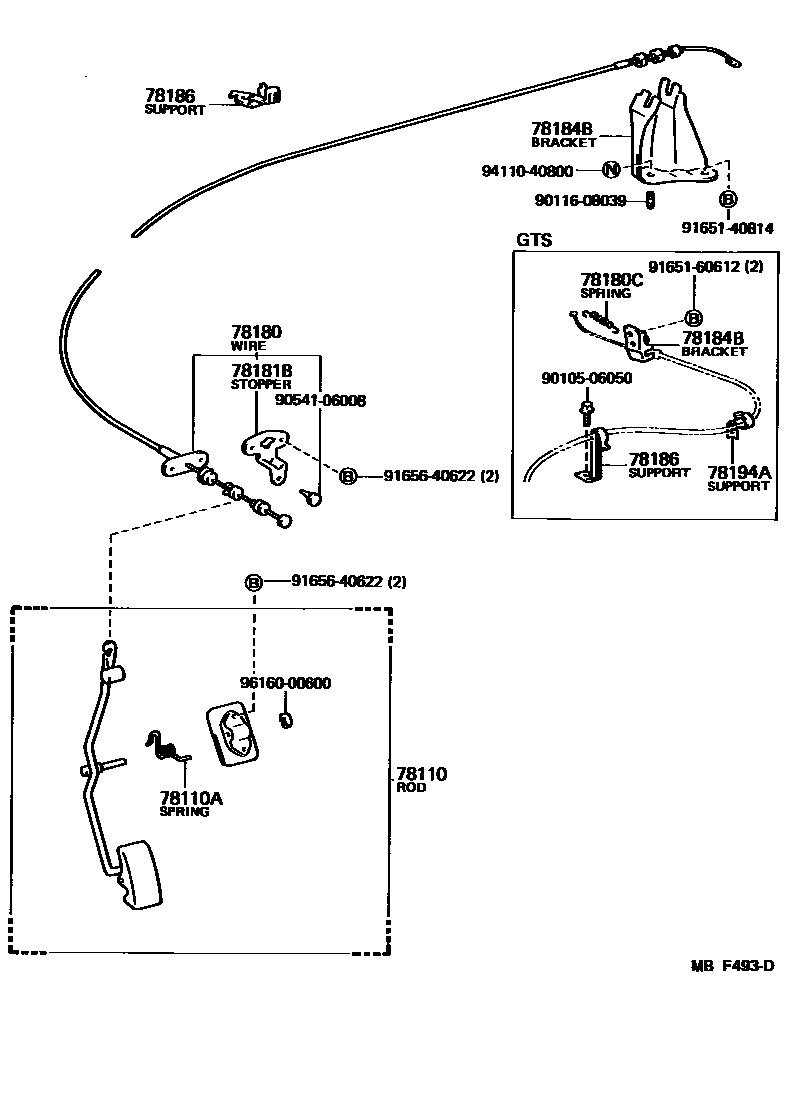

ACCELERATOR LINK

0001 1 0002 1

78110ROD ASSY, ACCELERATOR PEDAL

main78010-12120iAE86198308-198707

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18055iAE86198311-198707

main90508-18398iAE86198308-198311

78180WIRE ASSY, ACCELERATOR

main78180-12400iAE86..DX,SR5198308-198508

main78180-12420iAE86..GTS198408-198707

main78180-12430iAE86..GTS..CND198308-198707

W/AUTO DRIVE

main78180-12710iAE86..DX,SR5198508-198707

78180CSPRING, TENSION (FOR ACCELERATOR WIRE)

main90507-11004iAE86..GTS198408-198707

78181BSTOPPER, ACCELERATOR IDLE ADJUSTING

main78181-12051iAE86..DX,SR5198308-198508

main78181-12090iAE86198308-198508

W/AUTO DRIVE

main78181-12090iAE86..GTS198408-198707

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12140iAE86..DX,SR5198308-198707

main78184-12150iAE86..GTS198408-198707

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12140iAE86..DX,SR5198308-198707

main78186-12160iAE86..GTS198408-198707

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-12050iAE86..GTS198408-198707

9010506050

main90105-06050

9011608039

main90116-08039

9054106008

main90541-06008

9165140814

main91651-40814

9165160612

main91651-60612

9165640622

main91656-40622

9411040800

main94110-40800

9616000600

main96160-00600

16 parts on this diagram · 2 diagrams in section
